Chaffoteaux

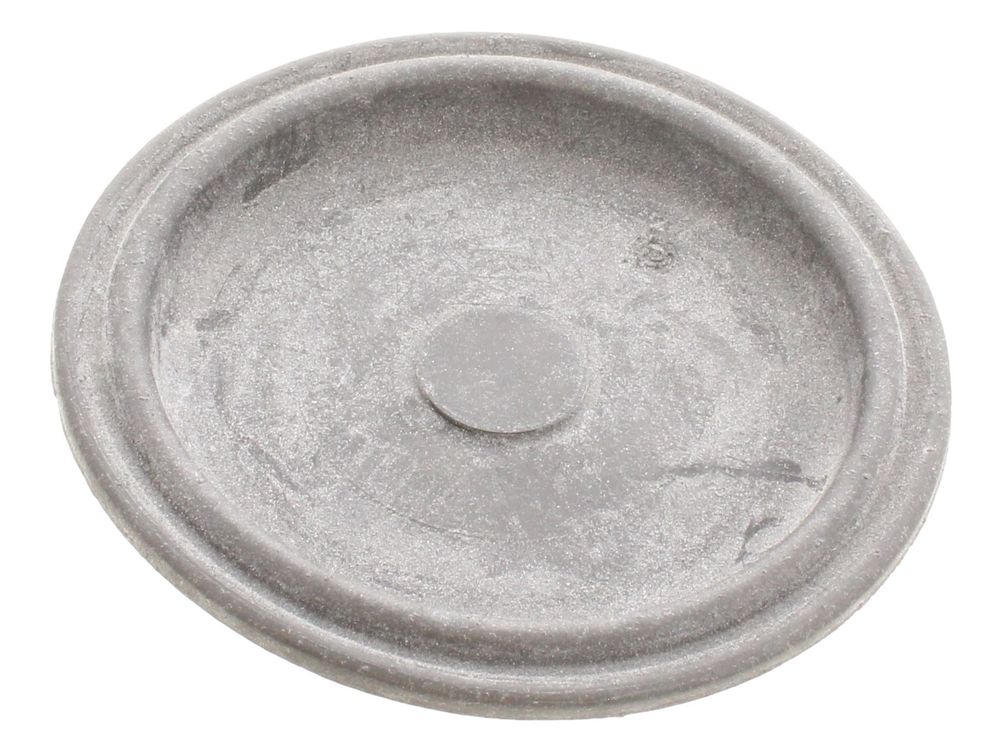

Chaffoteaux Diaphragm 60081016
Diaphragm for Chaffoteaux gas boilers, used in the diverter valve assembly.
At a glance
- Also known as 1610153
£13.31
£11.09 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
Diaphragm for Chaffoteaux gas boilers. It is used in the diverter valve assembly to sense water flow and switch the boiler between heating and hot water modes. This component is listed under Chaffoteaux part number 60081016 and supersedes code 8101600.
Signs this part needs replacing
- Diverter valve fails to move when hot water is demanded
- No hot water or intermittent hot water
- Poor hot water flow rate
- Visible splits, tears or perishing on the diaphragm
- Water leaking from the diverter valve area
Before you order
- Check your boiler model and GC number against the fitment list
- Confirm the part number 60081016 matches your existing diaphragm
- Check if your boiler uses the superseded code 8101600
- Inspect the diverter valve for other worn components
Compliance
| GC number | 277-557 |
|---|---|
| Barcode / EAN | 3234090059861 |
| Alternative numbers | 1610153 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX CELTIC PLUS LPG - FROM MAY 1994 TO DEC 1994 | 47-980-08 | 47-980-08 | — | — |
| CHAFFOTEAUX CELTIC PLUS LPG - UPTO AUG 1995 | 47-980-08 | 47-980-08 | — | — |
| CHAFFOTEAUX CELTIC PLUS NAT (CE) | — | — | — | |
| CHAFFOTEAUX CELTIC PLUS NAT GAS - FROM APR 1995 TO AUG 1995 | 47-980-07 | 47-980-07 | — | — |
| CHAFFOTEAUX CELTIC PLUS NAT GAS - FROM JAN 1994 TO APR 1995 | 47-980-07 | 47-980-07 | — | — |
| CHAFFOTEAUX CHAFFOTEAUX CELTIC PLUS | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX CELTIC PLUS (CE) | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX CELTIC PLUS LPG | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX STERLING FF | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX STERLING FF LPG | — | — | — |
Showing 10 of 20 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
CHAFFOTEAUX appliance manual — CELTIC PLUS LPG - FROM MAY 1994 TO DEC 1994 (GC 47-980-08), CELTIC PLUS LPG - UPTO AUG 1995 (GC 47-980-08), CELTIC PLUS NAT (CE), CELTIC PLUS NAT GAS - FROM APR 1995 TO AUG 1995 (GC 47-980-07), CELTIC PLUS NAT GAS - FROM JAN 1994 TO APR 1995 (GC 47-980-07)
manualmanualCHAFFOTEAUX appliance manual — STERLING OF LPG (GC 47-980-11), STERLING OF NAT GAS UPTO DEC 1995 (GC 47-980-10), STERLING OF NAT GAS UPTO JUL 1994 (GC 47-980-10)
manualmanualCHAFFOTEAUX appliance manual — STERLING PP NAT (CE) (GC 47-980-07)
manualNo technical questions yet for this part.
