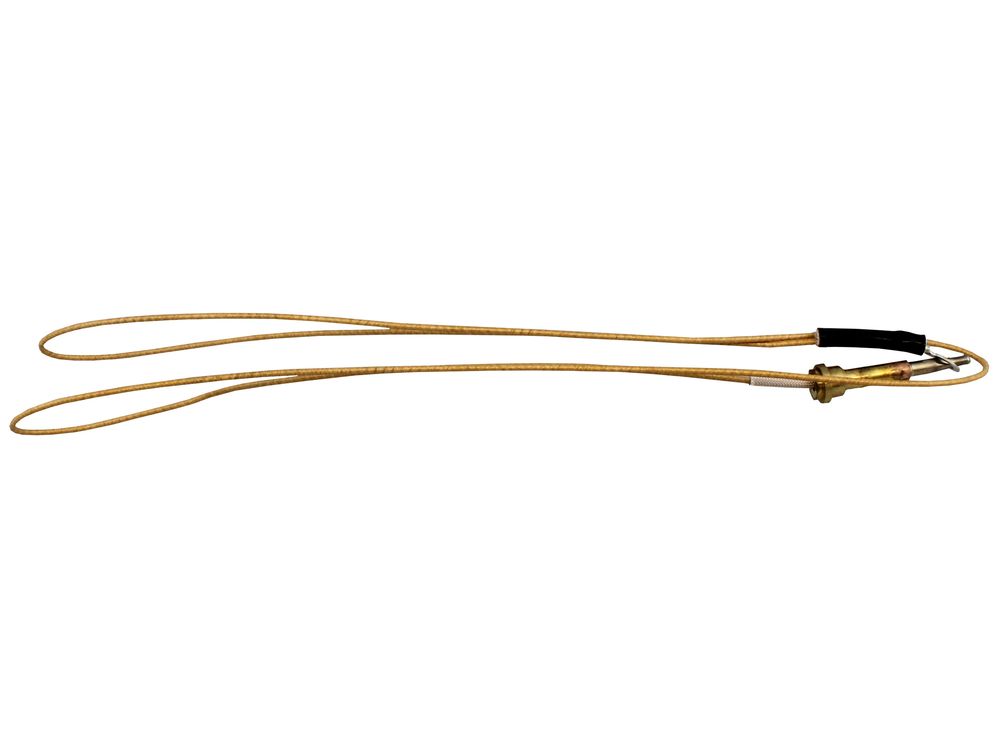

Chaffoteaux Thermocouple 60057703

The Chaffoteaux 60057703 is a thermocouple used in the pilot flame circuit of Britony gas appliances. Sitting in the pilot assembly, it generates a small voltage while the pilot flame is lit, and that signal holds the gas valve open so the burner can run. If the pilot flame is lost, the thermocouple output falls away and the valve closes, shutting off the gas supply.

It is a service part for the Chaffoteaux Britony family, covering both natural gas and LPG variants built across the late 1980s and 1990s.

• The pilot lights but goes out as soon as the control knob is released.
• The pilot will not hold at all, so the burner never reaches ignition.
• Repeated lockouts or shutdowns shortly after the burner has been running.
• The pilot flame extinguishes when the main burner goes off, rather than staying lit.
• Intermittent loss of heating or hot water with no other obvious fault on the appliance.

• Check the appliance GC number and model plate against the compatibility list, as several Britony variants use different pilot assemblies.
• Confirm the number on the existing thermocouple matches 60057703 or one of the alternative numbers listed below before fitting.
• This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
