Chaffoteaux

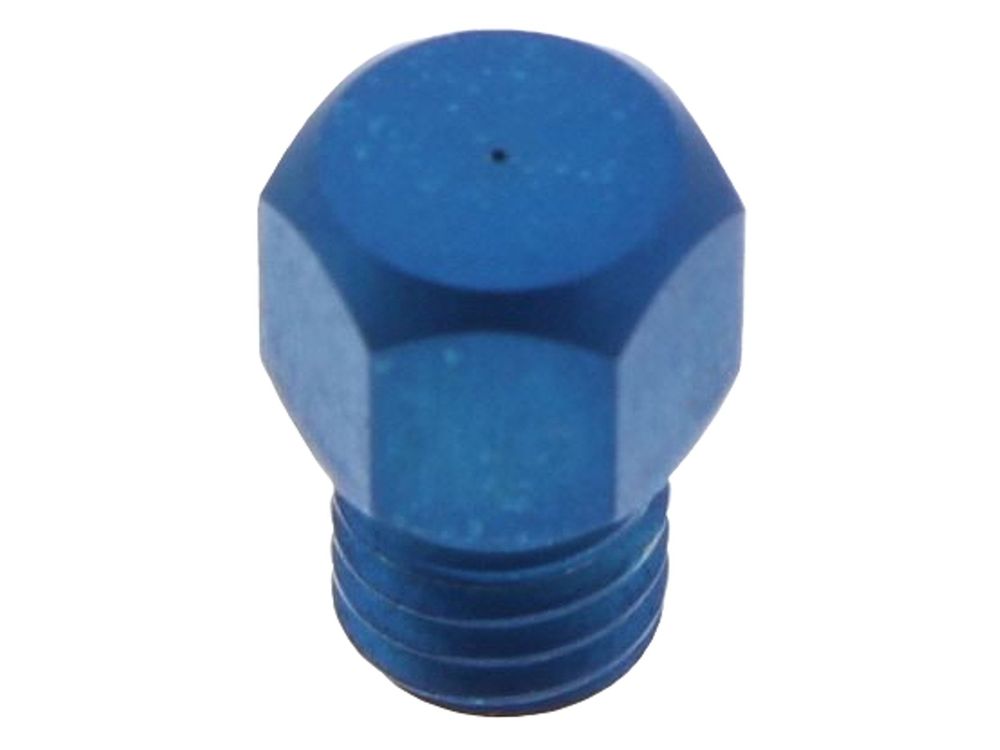

Chaffoteaux Pilot Injector D: 0.23mm Natural Gas 60049378
Pilot injector with a 0.23 mm orifice for Chaffoteaux natural gas boilers, including Britony, Corvec and CELT models.
At a glance
- Also known as PILOT-INJECTOR-D-023, 1610168
- Work on gas-carrying components must be carried out by a competent Gas Safe registered engineer
£7.24
£6.03 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Chaffoteaux 60049378 is a pilot injector with a 0.23 mm orifice, specified for natural gas. It meters the gas supply to the pilot burner on a range of Chaffoteaux gas boilers, including the Britony, Corvec and CELT families. It is a serviceable item within the pilot assembly and is renewed when the pilot flame cannot be lit or held.
Signs this part needs replacing
- Pilot flame fails to light, or extinguishes shortly after ignition
- Pilot flame is weak, yellow, or visibly smaller than expected
- Pilot flame lifts away from the burner or burns erratically
- Soot or debris is visible around the injector orifice
- Boiler repeatedly locks out because the pilot flame cannot be proven
Before you order
- Confirm the appliance is running on natural gas, as this injector is specified for NAT GAS
- Check the boiler model and GC number against the fitment list above
- Verify the existing injector is marked 0.23 mm before ordering
- Work on gas-carrying components must be carried out by a competent Gas Safe registered engineer
Compliance
| GC number | 366-296 |
|---|---|
| Barcode / EAN | 3234090302356 |
| Alternative numbers | PILOT-INJECTOR-D-023, 1610168 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX BRITONY FF NAT GAS | 47-980-16 | 47-980-16 | — | — |
| CHAFFOTEAUX BRITONY FLEXIFLUE - FROM JAN 87 TO DEC 93 | 52-980-22 | 52-980-22 | — | — |
| CHAFFOTEAUX BRITONY FLEXIFLUE CE - NAT GAS | 51-980-08 | 51-980-08 | — | — |
| CHAFFOTEAUX BRITONY II A NAT GAS | 52-980-11 | 52-980-11 | — | — |
| CHAFFOTEAUX BRITONY II A PRESTIGE NAT GAS | 52-980-14 | 52-980-14 | — | — |
| CHAFFOTEAUX BRITONY II FF | — | — | — | |
| CHAFFOTEAUX BRITONY II HP NAT GAS | 52-980-05 | 52-980-05 | — | — |
| CHAFFOTEAUX BRITONY II LP NAT GAS | 52-980-05 | 52-980-05 | — | — |
| CHAFFOTEAUX BRITONY II T 21 HP NAT GAS - FROM FEB 03 | 52-980-04 | 52-980-04 | — | — |
| CHAFFOTEAUX BRITONY II T 21 HP NAT GAS - FROM JAN 87 | 52-980-18 | 52-980-18 | — | — |
Showing 10 of 46 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
CHAFFOTEAUX appliance manual — BRITONY FF NAT GAS (GC 47-980-16), BRITONY FLEXIFLUE - FROM JAN 87 TO DEC 93 (GC 52-980-22), BRITONY FLEXIFLUE CE - NAT GAS (GC 51-980-08)
manualmanualCHAFFOTEAUX appliance manual — BRITONY II A NAT GAS (GC 52-980-11)
manualmanualCHAFFOTEAUX appliance manual — BRITONY II FF
manualmanualCHAFFOTEAUX appliance manual — BRITONY II HP NAT GAS (GC 52-980-05), BRITONY II LP NAT GAS (GC 52-980-05), BRITONY II T 21 HP NAT GAS - FROM FEB 03 (GC 52-980-04), BRITONY II T 21 HP NAT GAS - FROM JAN 87 (GC 52-980-18), BRITONY II T 21 HP NAT GAS - FROM JAN 96 TO JAN 03 (GC 52-980-04), BRITONY II T 23 LP NAT GAS (GC 52-980-19)
manualmanualCHAFFOTEAUX appliance manual — CORVEC 28 BF (GC 41-980-27), CORVEC 28 OF (GC 41-980-28)
manualmanualCHAFFOTEAUX appliance manual — CORVEC 45 BF (GC 41-980-29), CORVEC 45 OF (GC 41-980-30)
manualNo technical questions yet for this part.
