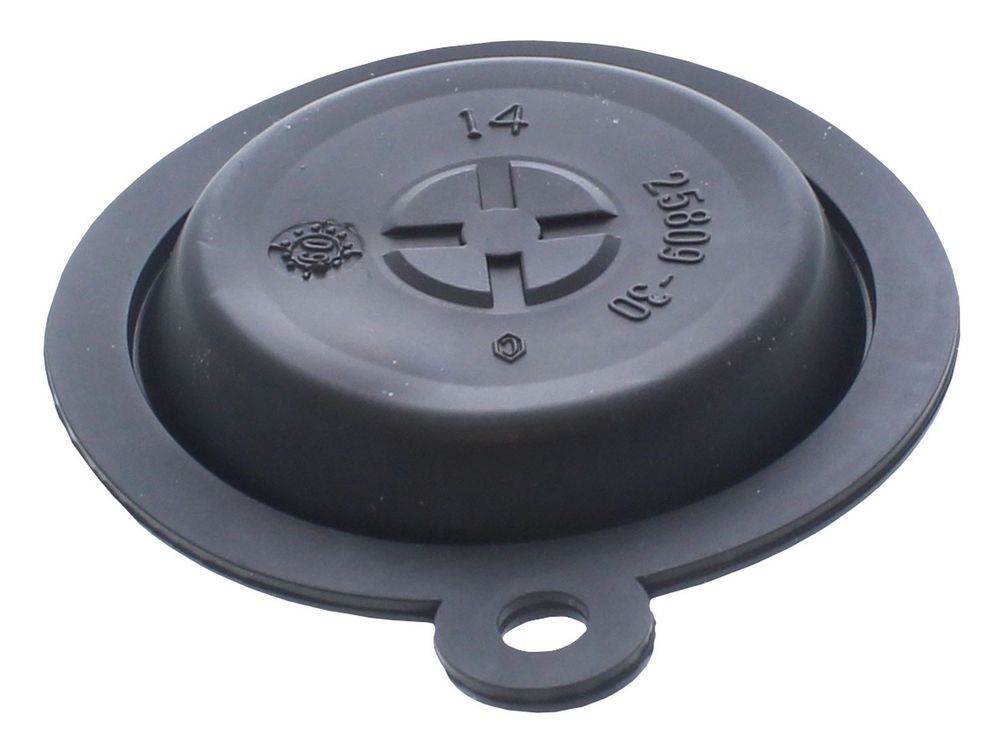

Chaffoteaux Diaphragm 60025809-30
Diaphragm for Chaffoteaux Britony 2 and compatible gas boilers and water heaters.
At a glance
- Also known as 1610018
Showing prices
£9.73
£8.11 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This diaphragm is a Chaffoteaux diverter valve component for gas boilers and water heaters. It is listed for the Chaffoteaux Britony 2 and a wider range of Chaffoteaux appliances. The diaphragm forms part of the diverter valve assembly.
Signs this part needs replacing
- No hot water or intermittent hot water when a tap is opened.
- Reduced domestic hot water flow.
- Diverter valve fails to move between heating and hot water.
- Water leaking from the diverter valve assembly.
- Boiler does not respond to hot water demand.
Before you order
- Confirm the appliance model and GC number against the compatibility list.
- Check the existing part number and the superseded number 52825.
- Inspect the diverter valve assembly for other worn components.
- Verify the gas type where the model listing specifies NAT GAS or LPG.
Compliance
| GC number | 263-432 |
|---|---|
| Barcode / EAN | 3234090284324 |
| Alternative numbers | 1610018 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX BRITONY | — | — | — | |
| CHAFFOTEAUX BRITONY FF NAT GAS | 47-980-16 | 47-980-16 | — | — |
| CHAFFOTEAUX BRITONY FLEXIFLUE - FROM JAN 87 TO DEC 93 | 52-980-22 | 52-980-22 | — | — |
| CHAFFOTEAUX BRITONY FLEXIFLUE CE - NAT GAS | 51-980-08 | 51-980-08 | — | — |
| CHAFFOTEAUX BRITONY FLEXIFLUE CE LPG - FROM JAN 94 TO SEPT 99 | 51-980-10 | 51-980-10 | — | — |
| CHAFFOTEAUX BRITONY FLEXIFLUE CE LPG - FROM OCT 99 | 52-980-10 | 52-980-10 | — | — |
| CHAFFOTEAUX BRITONY II A NAT GAS | 52-980-11 | 52-980-11 | — | — |
| CHAFFOTEAUX BRITONY II A PRESTIGE NAT GAS | 52-980-14 | 52-980-14 | — | — |
| CHAFFOTEAUX BRITONY II FF | — | — | — | |
| CHAFFOTEAUX BRITONY II HP NAT GAS | 52-980-05 | 52-980-05 | — | — |
Showing 10 of 95 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
CHAFFOTEAUX appliance manual — BRITONY FF NAT GAS (GC 47-980-16), BRITONY FLEXIFLUE - FROM JAN 87 TO DEC 93 (GC 52-980-22), BRITONY FLEXIFLUE CE - NAT GAS (GC 51-980-08), BRITONY FLEXIFLUE CE LPG - FROM JAN 94 TO SEPT 99 (GC 51-980-10), BRITONY FLEXIFLUE CE LPG - FROM OCT 99 (GC 52-980-10)
manualmanualCHAFFOTEAUX appliance manual — BRITONY II A NAT GAS (GC 52-980-11)
manualmanualCHAFFOTEAUX appliance manual — BRITONY II FF
manualmanualCHAFFOTEAUX appliance manual — BRITONY II HP NAT GAS (GC 52-980-05), BRITONY II LP NAT GAS (GC 52-980-05), BRITONY II T 21 HP LPG - FROM FEB 03 (GC 52-980-09), BRITONY II T 21 HP LPG - FROM JAN 96 TO JAN 03 (GC 52-980-23), BRITONY II T 21 HP NAT GAS - FROM FEB 03 (GC 52-980-04), BRITONY II T 21 HP NAT GAS - FROM JAN 87 (GC 52-980-18), BRITONY II T 21 HP NAT GAS - FROM JAN 96 TO JAN 03 (GC 52-980-04), BRITONY II T 23 LP NAT GAS (GC 52-980-19)
manualmanualCHAFFOTEAUX appliance manual — CELT STAR 1F HP LPG (GC 51-890-37), CELT STAR 1F HP NAT GAS (GC 51-890-29), CELT STAR 1F LP NAT GAS (GC 51-890-30), CELT STAR 2F HP LPG (GC 51-890-38), CELT STAR 2F HP NAT GAS (GC 51-890-31), CELT STAR 2F LP NAT GAS (GC 51-890-32)
manualmanualCHAFFOTEAUX appliance manual — CELT STAR B 1F HP CE LPG, CELT STAR B 1F HP CE NAT GAS, CELT STAR B 1F HP LPG (GC 51-890-35), CELT STAR B 1F HP NAT GAS (GC 51-890-33), CELT STAR B 2F HP CE LPG, CELT STAR B 2F HP CE NAT GAS, CELT STAR B 2F HP LPG (GC 51-890-36), CELT STAR B 2F HP NAT GAS (GC 51-890-34)
manualmanualCHAFFOTEAUX appliance manual — CELTIC 2.20 FF LPG (GC 47-980-06), CELTIC 2.20 FF NAT GAS (GC 47-980-02)
manualmanualCHAFFOTEAUX appliance manual — CELTIC 2.24 RSc LPG (GC 47-980-03), CELTIC 2.24 RSc NAT GAS (GC 47-980-03)
manualmanualCHAFFOTEAUX appliance manual — CELTIC FF LPG (GC 47-980-05), CELTIC FF NAT GAS - FROM FEB 1993 TO APR 1994 (GC 47-980-01), CELTIC FF NAT GAS - FROM JAN 1986 (GC 47-980-01)
manualmanualCHAFFOTEAUX appliance manual — CORVEC SH12 (GC 51-980-17)
