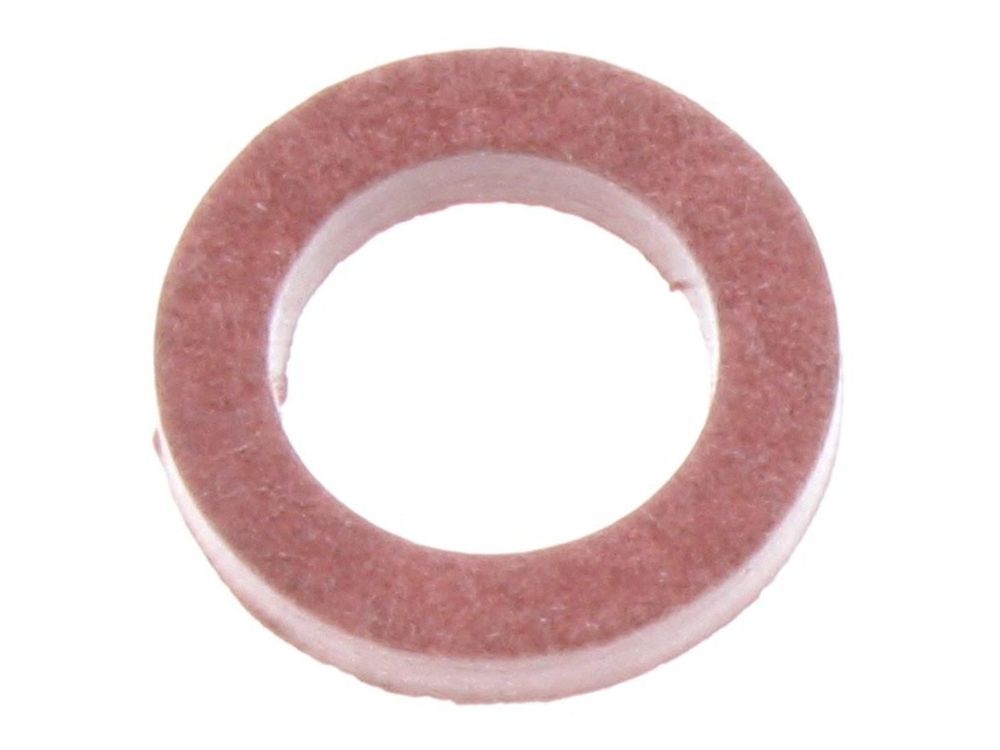

Chaffoteaux Sheet Gasket D: 10.5mm x 6.2mm x 1.5mm 60022831-07
Chaffoteaux sheet gasket, 10.5mm x 6.2mm x 1.5mm, for Calydra and Calydra Green gas boilers.
At a glance
- Part type: sheet gasket
- Also known as SHEET-GASKET-D-105-62-15, 1610576
£2.33
£1.94 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
A Chaffoteaux sheet gasket measuring 10.5mm x 6.2mm x 1.5mm, supplied under part number 60022831-07. It is a flat sealing component used within the Calydra and Calydra Green gas boiler families to seal a joint against water or gas escape. The gasket is compressed between mating faces to form a tight seal at the assembly point.
Signs this part needs replacing
- Visible water or gas traces around the joint the gasket seals
- Staining, corrosion or scale build-up on or around the gasket face
- The gasket has hardened, flattened or become brittle with age
- Cracking, splitting or deformation visible on the gasket material
- The joint weeps after the assembly has been disturbed or re-made
Before you order
- Confirm your boiler model against the fitment list above
- Check the existing gasket dimensions match 10.5mm x 6.2mm x 1.5mm
- Check how many gaskets the joint requires before ordering
- Verify the part number 60022831-07 against the manufacturer's parts list for your appliance
Compliance
| GC number | E23-563 |
|---|---|
| Barcode / EAN | 3234090293265 |
| Alternative numbers | SHEET-GASKET-D-105-62-15, 1610576 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX CALYDRA 100 LPG | — | — | — | |
| CHAFFOTEAUX CALYDRA 100 NAT GAS - FROM APR 1998 | — | — | — | |
| CHAFFOTEAUX CALYDRA 100 NAT GAS - FROM JAN 1999 | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 LPG | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 NAT GAS - FROM APR 1998 TO DEC 2001 | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 NAT GAS FROM MAY 2000 TO JUNE 2000 | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 V2 LPG | — | — | — | |
| CHAFFOTEAUX CALYDRA 80 V2 NAT GAS - JAN 2002 | — | — | — | |
| CHAFFOTEAUX CALYDRA COMFORT 100 NAT GAS - APR 2005 | 47-980-23 | 47-980-23 | — | — |
| CHAFFOTEAUX CALYDRA COMFORT 80 NAT GAS - APR 2005 | 47-980-22 | 47-980-22 | — | — |
Showing 10 of 14 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
CHAFFOTEAUX appliance manual — CALYDRA 100 LPG, CALYDRA 100 NAT GAS - FROM APR 1998, CALYDRA 100 NAT GAS - FROM JAN 1999, CALYDRA 80 LPG, CALYDRA 80 NAT GAS - FROM APR 1998 TO DEC 2001, CALYDRA 80 NAT GAS FROM MAY 2000 TO JUNE 2000
manualmanualCHAFFOTEAUX appliance manual — CALYDRA COMFORT 100 NAT GAS - APR 2005 (GC 47-980-23), CALYDRA COMFORT 80 NAT GAS - APR 2005 (GC 47-980-22)
manualmanualCHAFFOTEAUX appliance manual — CALYDRA GREEN 24KW G20 (GC 47-980-25), CALYDRA GREEN 24KW G31 (GC 47-980-25), CALYDRA GREEN 30KW G20 (GC 47-980-26), CALYDRA GREEN 30KW G31 (GC 47-980-26)
manualNo technical questions yet for this part.
