Chaffoteaux

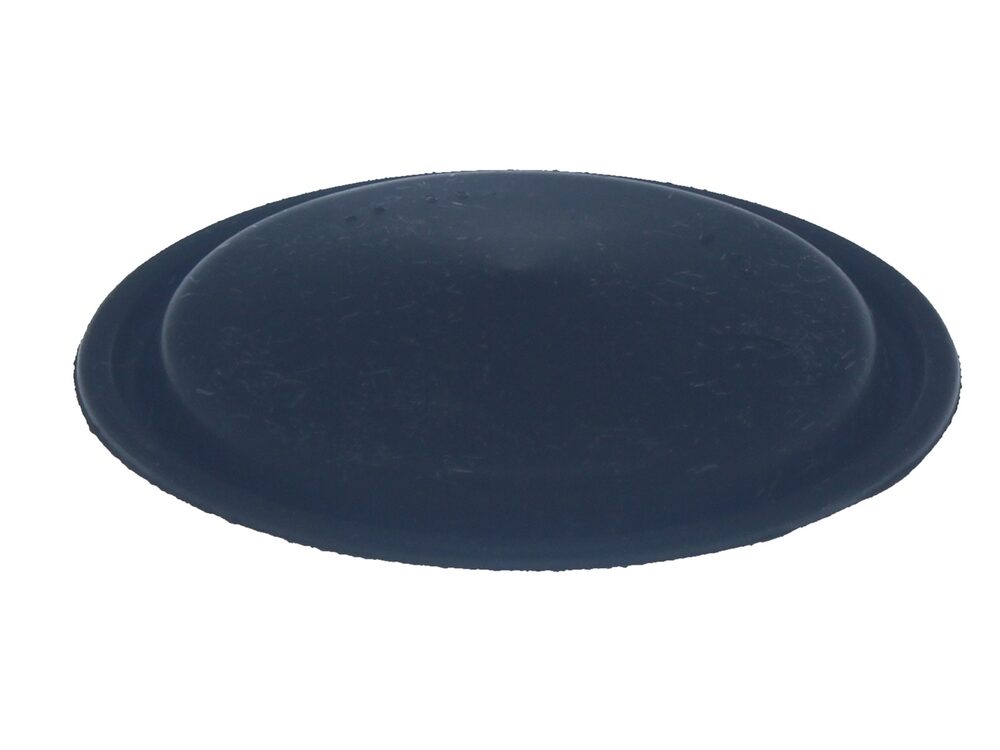

Chaffoteaux Diaphragm 60010419
Diverter valve diaphragm for Chaffoteaux Flexiflame, Miniflame, Maxiflame, Moduloflame and Corvec gas boilers.
At a glance
- Also known as 1610160
£4.22
£3.52 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Chaffoteaux 60010419 diaphragm is a diverter valve component for Chaffoteaux gas boilers. It is listed for use across the Flexiflame, Miniflame, Maxiflame, Moduloflame and Corvec appliance families. The diaphragm forms part of the diverter valve assembly.
Signs this part needs replacing
- Hot water demand does not activate the boiler.
- Diverter valve fails to switch between heating and hot water.
- Reduced or no hot water flow at the tap.
- Visible splits, holes or hardening in the diaphragm.
- Water leaking from the diverter valve area.
Before you order
- Confirm the appliance model and GC number against the fitment list.
- Check the existing diaphragm for visible damage and confirm part number 60010419.
- Verify the diverter valve assembly type before ordering.
- Isolate and depressurise the boiler before carrying out any work.
Compliance
| GC number | 262-835 |
|---|---|
| Barcode / EAN | 3234090290424 |
| Alternative numbers | 1610160 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX CHAFFOTEAUX CORVEC 48 CF | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX CORVEC 64 CF | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX CORVEC 80 CF | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX FLEXIFLAME 140 | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX FLEXIFLAME 140 LPG | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX FLEXIFLAME 280 | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX FLEXIFLAME 420 | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX MAXIFLAME BF CAT 1N | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX MAXIFLAME BF CAT 2TN | — | — | — | |
| CHAFFOTEAUX CHAFFOTEAUX MINIFLAME CF CAT 1N | — | — | — |
Showing 10 of 35 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
CHAFFOTEAUX appliance manual — FLEXIFLAME 105 NAT GAS, FLEXIFLAME 70 NAT GAS
manualmanualCHAFFOTEAUX appliance manual — FLEXIFLAME 140 LPG, FLEXIFLAME 140 NAT GAS
manualmanualCHAFFOTEAUX appliance manual — FLEXIFLAME 280 NAT GAS - FROM OCT 1988 TO DEC 1996 (GC 41-981-12), FLEXIFLAME 280 NAT GAS - UPTO SEPT 1988 (GC 41-981-12), FLEXIFLAME 420 NAT GAS - FROM OCT 1988 TO DEC 1996 (GC 41-981-13), FLEXIFLAME 420 NAT GAS - UPTO SEPT 1988 (GC 41-981-13)
manualmanualCHAFFOTEAUX appliance manual — MODULOFLAME 280 NAT GAS MOD 31 - MAR 1996, MODULOFLAME 420 NAT GAS MOD 31 - MAR 1996
manualNo technical questions yet for this part.
