Ariston
Ariston Flange Gasket 5 Stud 60003308

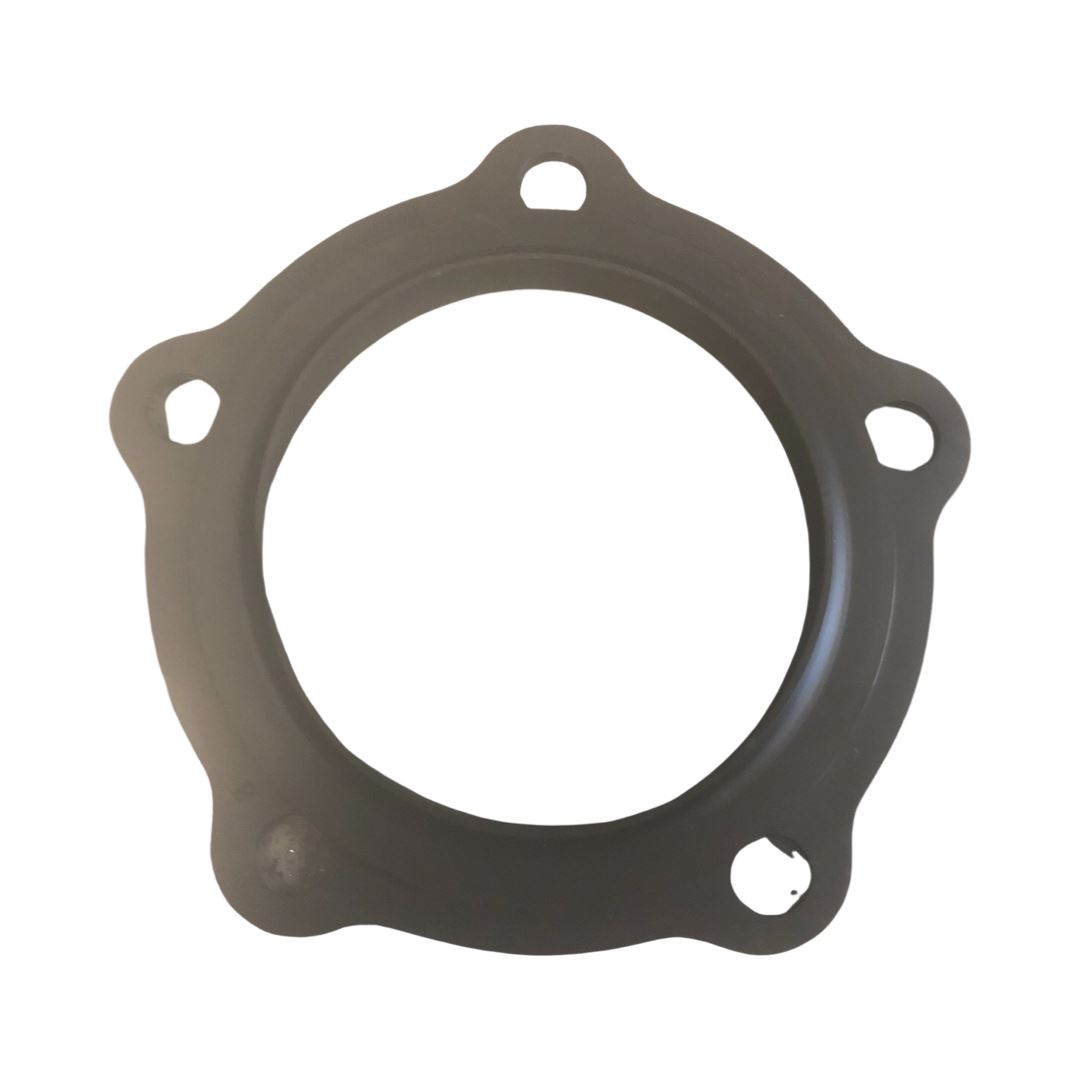

Ariston five-stud flange gasket, part 60003308, replacing 924001, for ST 50, 80 and 100 Protech element flanges.
At a glance
- Part type: Gasket, O-ring, seal and washer
- Also known as 1577999
£12.74
£10.62 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 60003308 is a five-stud flange gasket that seals the element mounting flange on Ariston ST 50, ST 80 and ST 100 Protech appliances. It replaces the earlier part number 924001 and is supplied as a single gasket. The gasket sits between the flange face and the vessel, compressing under the stud fixings to form a watertight joint around the element.
Signs this part needs replacing
- Water weeping or a damp stain around the element flange
- Visible hardening, cracking or flattening of the gasket material
- Scale or corrosion deposits tracked across the flange face
- Recurring leaks after the element has been removed and refitted
- Gasket damage found during an element replacement
Before you order
- Confirm the appliance model and check the old gasket against part number 924001, which this gasket replaces.
- Check the flange stud count - this gasket is for five-stud flanges.
- If the element is being changed at the same time, order the gasket alongside it so the joint can be remade in one visit.
- This is not a gas-carrying component.
Mechanical
| Part type | Gasket, O-ring, seal and washer |
|---|
Compliance
| Manufacturer part number (MPN) | 60003308 |
|---|---|
| Barcode / EAN | 60003308 |
| Commodity code | 4016 93 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 924001, 1577999 |
| Previous numbers | 924001 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON AYVMA 075 EDITION 4 (MARCH 1999) | — | — | — | |
| ARISTON AYVMA 075 PROTECH EDITION 2 (MAY 1999) | — | — | — | |
| ARISTON AYVMA 100 EDITION 4 (MARCH 1999) | — | — | — | |
| ARISTON AYVMA 100 PROTECH EDITION 2 (MAY 1999) | — | — | — | |
| ARISTON AYVMB 075 2000W EDITION 1 (JULY 1996) | — | — | — | |
| ARISTON AYVMB 100 2000W EDITION 1 (JULY 1996) | — | — | — | |
| ARISTON AYVMB 150 2000W EDITION 1 (JULY 1996) | — | — | — | |
| ARISTON AYVMB 200 2000W EDITION 1 (JULY 1996) | — | — | — | |
| ARISTON NUOS FS 200 EDITION 1 (07 FEB 2012) | — | — | — | |
| ARISTON NUOS FSI 250 EDITION 1 (07 FEB 2012) | — | — | — |
Showing 10 of 31 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ARISTON appliance manual — ST 100 PROTECH EDITION 3 (JAN 2011)
manualmanualARISTON appliance manual — ST 50 EDITION 1 (JAN 1998), ST 50 EDITION 2 (JUNE 2002), STT 125 EDITION 1 (JAN 1998), STT 150 EDITION 1 (JAN 1998), STT 210 EDITION 1 (JAN 1998)
manualmanualARISTON appliance manual — ST 50 PROTECH EDITION 3 (JAN 2011), ST 80 PROTECH EDITION 3 (JAN 2011)
manualmanualARISTON appliance manual — SUPER BRAVO SB 125 EDITION 1 (JAN 1998), SUPER BRAVO SB 125 EDITION 2 (JUN 2002), SUPER BRAVO SB 150 EDITION 1 (JAN 1998), SUPER BRAVO SB 150 EDITION 2 (JUN 2002), SUPER BRAVO SB 210 EDITION 1 (JAN 1998), SUPER BRAVO SB 210 EDITION 2 (JUN 2002)
manualNo technical questions yet for this part.
