Ariston

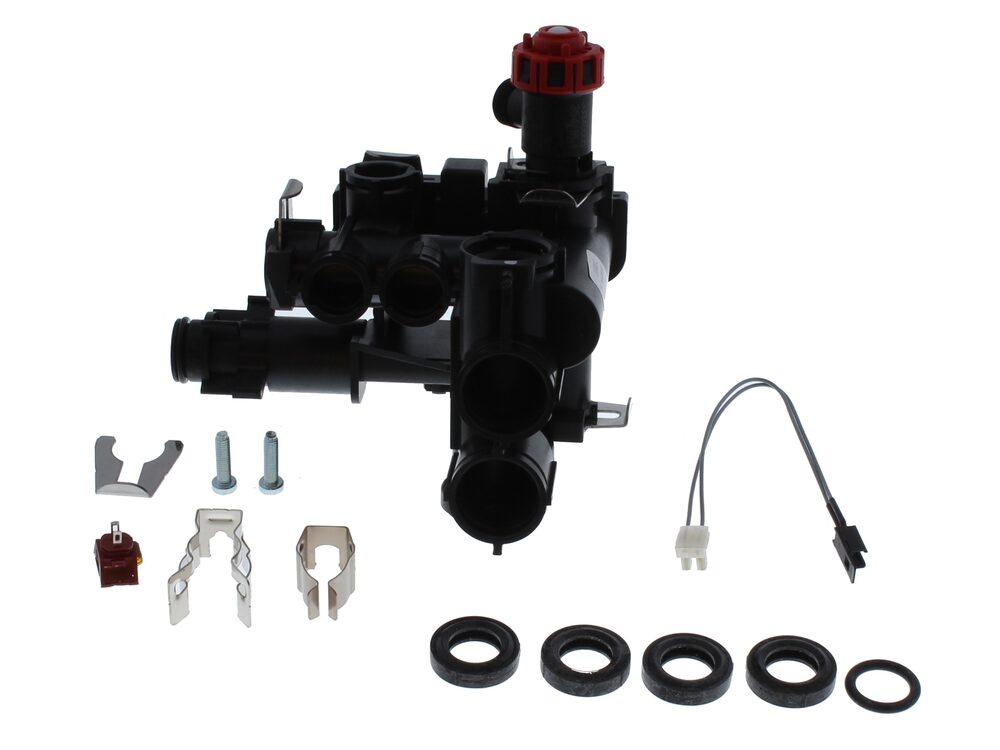

Ariston 60002320 Flow Group Kit
Ariston 60002320 flow group kit for Ariston standard water heaters, managing water flow through the appliance water circuit.
At a glance
- Part type: Flow group kit
- Also known as 3234090813296, ARISTON60002320, 254889043139, 1595195
£110.42
£92.02 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 60002320 is a flow group kit supplied by Ariston for its standard water heater range. The flow group sits in the water circuit of the appliance and governs the passage of water through the heater, providing the flow sensing and connection point that the control system relies on to start and modulate heating.
It is a service component rather than a consumable, so it is normally replaced when flow detection becomes unreliable or when the body of the group begins to leak.
Signs this part needs replacing
- Hot water flow is weak, intermittent or noticeably reduced compared with normal operation
- The appliance fails to detect flow and does not begin heating when a tap is opened
- Fault codes relating to water flow or flow sensing appear on the control display
- Water weeps or drips from the body of the flow group or from its connections
- Scale or debris build-up inside the group causes sticking or erratic operation
Before you order
- Confirm the appliance model and serial number, then match the part number printed on the existing component against 60002320
- Check the condition of the seals and gaskets on the water connections, as these are often disturbed during removal and refitting
- Isolate the water supply and the electrical supply to the appliance before starting work
- Confirm the replacement group matches the pipework orientation and connection layout of the original
Mechanical
| Part type | Flow group kit |
|---|
Compliance
| Manufacturer part number (MPN) | 60002320 |
|---|---|
| Barcode / EAN | 60002320 |
| Commodity code | 8419 90 15 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 3234090813296, ARISTON60002320, 254889043139, 1595195 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON ARISTON CLAS 24 FF | — | — | — | |
| ARISTON ARISTON CLAS 28 FF | — | — | — | |
| ARISTON ARISTON CLAS 28 FF SYSTEM | — | — | — | |
| ARISTON ARISTON CLAS HE 24 FF | — | — | — | |
| ARISTON ARISTON CLAS HE 30 FF | — | — | — | |
| ARISTON ARISTON CLAS HE 38 FF | — | — | — | |
| ARISTON ARISTON E-COMBI 24 FF | — | — | — | |
| ARISTON ARISTON E-COMBI 30 FF | — | — | — | |
| ARISTON ARISTON E-COMBI 35 FF | — | — | — | |
| ARISTON CLAS 24 FF NG (IE) EDITION 3 (MAR 2008) | 47-116-59 | 47-116-59 | — | — |
Showing 10 of 34 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ARISTON appliance manual — CLAS 24 FF NG (IE) EDITION 3 (MAR 2008) (GC 47-116-59), CLAS 28 FF NG (IE) EDITION 3 (MAR 2008) (GC 47-116-61), CLAS 28 FF SYSTEM NG (IE) EDITION 3 (MAR 2008) (GC 41-116-28), CLAS HE 24 FF NG UK (MAY 2007) (GC 47-116-51), CLAS HE 30 FF NG UK (MAY 2007) (GC 47-116-52), CLAS HE 38 FF NG UK (MAY 2007) (GC 47-116-53)
manualmanualARISTON appliance manual — CLAS HE EVO 24 UK (GC 47-116-73), CLAS HE EVO 30 UK (GC 47-116-74), CLAS HE EVO 38 UK (GC 47-116-75)
manualmanualARISTON appliance manual — E-COMBI 24 FF NG (UK) (GC 47-116-62), E-COMBI 30 FF NG (UK) (GC 47-116-63), E-COMBI 38 FF NG (UK) (GC 47-116-64)
manualmanualARISTON appliance manual — E-COMBI EVO 24 FF UK (GC 47-116-68), E-COMBI EVO 30 FF UK (GC 47-116-69), E-COMBI EVO 38 FF UK (GC 47-116-70)
manualmanualARISTON appliance manual — GENUS HE 24 FF NG UK (APRIL 2007) (GC 47-116-54), GENUS HE 30 FF NG UK (MAY 2007) (GC 47-116-55), GENUS HE 38 FF NG UK (MAY 2007) (GC 47-116-56)
manualNo technical questions yet for this part.
