Ariston Fan Cable Clas HE EVO 60001624
Ariston 60001624 fan cable for Clas HE EVO and E-Combi EVO 24/30/38 and Clas HE System EVO boilers, linking the fan to the control PCB.
At a glance
- Part type: wiring / fan cable
- Appliance family: Clas HE EVO, E-Combi EVO, Clas HE System EVO
- Also known as 8901203
£18.00
£15.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

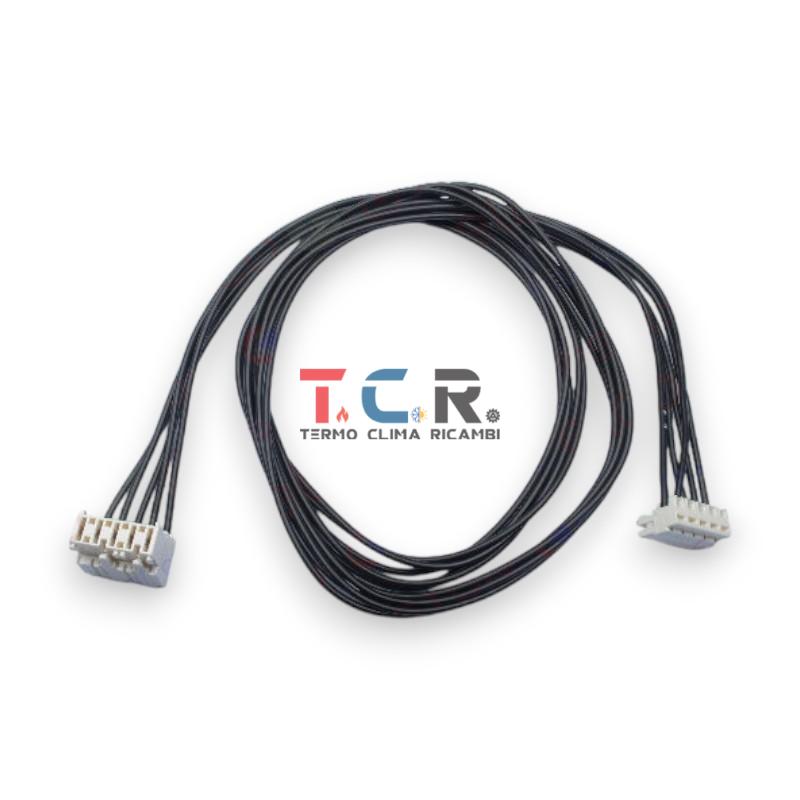

The Ariston 60001624 is the fan cable used on Clas HE EVO, E-Combi EVO and Clas HE System EVO boilers. It is the wiring harness that carries power and feedback signals between the combustion fan and the appliance control board. Because the fan speed is monitored and modulated by the PCB, a sound cable and clean connections are essential for correct combustion and safe running.
Signs this part needs replacing
- The fan fails to start, or runs intermittently, with the boiler going to lockout
- Fan-related fault codes appear on the display after ignition attempts
- The boiler overheats or shuts down because the fan cannot be driven at the requested speed
- Visible damage to the cable: cracked insulation, scorched or brittle conductors, or a loose plug on the fan or PCB
- Rodent or heat damage to the loom inside the casing
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the model
- Compare the part number on the existing cable with 60001624 before ordering
- Inspect the fan connector and PCB header for corrosion or heat marking, as these often need attention at the same time
Mechanical
| Part type | Wiring |
|---|---|
| Appliance family | Clas HE EVO, E-Combi EVO, Clas HE System EVO |
Compliance
| Manufacturer part number (MPN) | 60001624 |
|---|---|
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 8901203 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON CLAS HE EVO 24 UK | 47-116-73 | 47-116-73 | — | — |
| ARISTON CLAS HE EVO 30 UK | 47-116-74 | 47-116-74 | — | — |
| ARISTON CLAS HE EVO 38 UK | 47-116-75 | 47-116-75 | — | — |
| ARISTON CLAS HE SYSTEM EVO 18 | — | — | — | |
| ARISTON CLAS HE SYSTEM EVO 18 UK | 41-116-41 | 41-116-41 | — | — |
| ARISTON CLAS HE SYSTEM EVO 24 | — | — | — | |
| ARISTON CLAS HE SYSTEM EVO 24 UK | 41-116-42 | 41-116-42 | — | — |
| ARISTON CLAS HE SYSTEM EVO 30 | — | — | — | |
| ARISTON CLAS HE SYSTEM EVO 30 UK | 41-116-43 | 41-116-43 | — | — |
| ARISTON CLAS PREMIUM EVO 24 | — | — | — |
Showing 10 of 37 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ARISTON appliance manual — CLAS HE EVO 24 UK (GC 47-116-73), CLAS HE EVO 30 UK (GC 47-116-74), CLAS HE EVO 38 UK (GC 47-116-75), CLAS HE SYSTEM EVO 18 UK (GC 41-116-41), CLAS HE SYSTEM EVO 24 UK (GC 41-116-42), CLAS HE SYSTEM EVO 30 UK (GC 41-116-43)
manualmanualARISTON appliance manual — E-COMBI EVO 24 FF UK (GC 47-116-68), E-COMBI EVO 30 FF UK (GC 47-116-69), E-COMBI EVO 38 FF UK (GC 47-116-70), E-SYSTEM EVO 24 UK (GC 41-116-39), E-SYSTEM EVO 30 UK (GC 41-116-40)
