Ariston Condensate Trap Assembly 60000987-01
Ariston condensate trap assembly, part 60000987-01, for CLAS HE condensing boilers; collects and drains condensate while sealing flue gases.
At a glance
- Part type: Condensate trap assembly
- Also known as 1579543
£28.91
£24.09 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

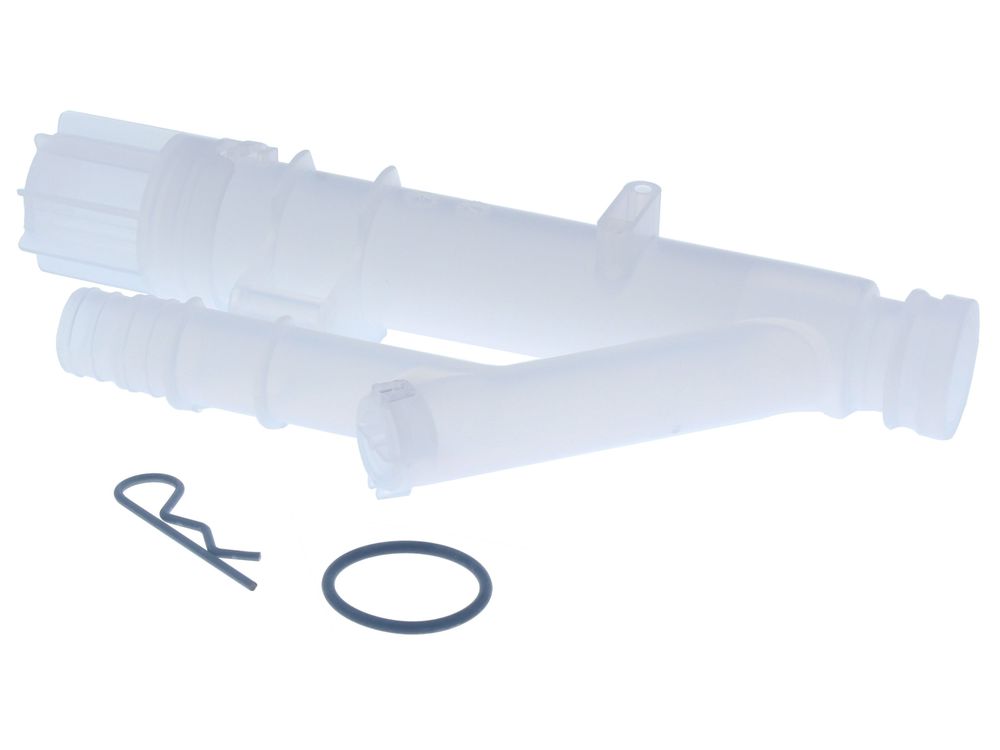

The Ariston condensate trap assembly, part number 60000987-01, is the drainage component fitted to Ariston CLAS HE condensing boilers. It collects the condensate formed during combustion and discharges it to the boiler's condensate outlet. The trap holds a water seal that stops flue gases passing into the condensate pipework while still allowing condensate to drain away.
Signs this part needs replacing
- Water pooling under the boiler or dripping from the trap body
- Condensate backing up in the boiler sump or flue
- Boiler locking out or displaying a condensate-related fault code
- Gurgling or bubbling noises from the condensate route
- Visible cracks, scale or sludge blocking the trap
Before you order
- Check the GC number on the appliance data badge against the compatibility list below.
- Compare the part number on the existing trap with 60000987-01 and the previous numbers listed.
- Inspect the trap seals and washers and renew them if they are perished or hardened.
Mechanical
| Part type | Condensate trap assembly |
|---|---|
| Appliance family | Ariston CLAS HE |
Compliance
| Manufacturer part number (MPN) | 60000987-01 |
|---|---|
| Barcode / EAN | 3234090828511 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 60000529, 60000530, 60000531, 60000987, 1579543 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON ARISTON CLAS HE 18 FF SYSTEM | — | — | — | |
| ARISTON ARISTON CLAS HE 24 FF | — | — | — | |
| ARISTON ARISTON CLAS HE 24 FF SYSTEM | — | — | — | |
| ARISTON ARISTON CLAS HE 30 FF | — | — | — | |
| ARISTON ARISTON CLAS HE 30 FF SYSTEM | — | — | — | |
| ARISTON ARISTON CLAS HE 38 FF | — | — | — | |
| ARISTON ARISTON E-COMBI 24 FF | — | — | — | |
| ARISTON ARISTON E-COMBI 30 FF | — | — | — | |
| ARISTON ARISTON E-COMBI 35 FF | — | — | — | |
| ARISTON ARISTON E-SYSTEM 24 | — | — | — |
Showing 10 of 64 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ARISTON appliance manual — CLAS HE 18 FF SYSTEM NG UK (MAY 2007) (GC 41-116-26), CLAS HE 24 FF SYSTEM NG UK (MAY 2007) (GC 41-116-22), CLAS HE 30 FF SYSTEM NG UK (MAY 2007) (GC 41-116-23)
manualmanualARISTON appliance manual — CLAS HE 24 FF NG UK (MAY 2007) (GC 47-116-51), CLAS HE 30 FF NG UK (MAY 2007) (GC 47-116-52), CLAS HE 38 FF NG UK (MAY 2007) (GC 47-116-53)
manualmanualARISTON appliance manual — CLAS HE EVO 24 UK (GC 47-116-73), CLAS HE EVO 30 UK (GC 47-116-74), CLAS HE EVO 38 UK (GC 47-116-75), CLAS HE SYSTEM EVO 18 UK (GC 41-116-41), CLAS HE SYSTEM EVO 24 UK (GC 41-116-42), CLAS HE SYSTEM EVO 30 UK (GC 41-116-43)
manualmanualARISTON appliance manual — E-COMBI 24 FF NG (UK) (GC 47-116-62), E-COMBI 30 FF NG (UK) (GC 47-116-63), E-COMBI 38 FF NG (UK) (GC 47-116-64), E-SYSTEM 24 NG (UK) (GC 41-116-34), E-SYSTEM 30 NG (UK) (GC 41-116-35)
manualmanualARISTON appliance manual — E-COMBI EVO 24 FF UK (GC 47-116-68), E-COMBI EVO 30 FF UK (GC 47-116-69), E-COMBI EVO 38 FF UK (GC 47-116-70), E-SYSTEM EVO 24 UK (GC 41-116-39), E-SYSTEM EVO 30 UK (GC 41-116-40)
manualmanualARISTON appliance manual — GENUS HE 24 FF NG UK (APRIL 2007) (GC 47-116-54), GENUS HE 30 FF NG UK (MAY 2007) (GC 47-116-55), GENUS HE 38 FF NG UK (MAY 2007) (GC 47-116-56)
manualmanualARISTON appliance manual — GENUS HE 24 FF SYSTEM NG UK (MAY 2007) (GC 41-116-24), GENUS HE 30 FF SYSTEM NG UK (MAY 2007) (GC 41-116-25)
manualNo technical questions yet for this part.
