Chaffoteaux

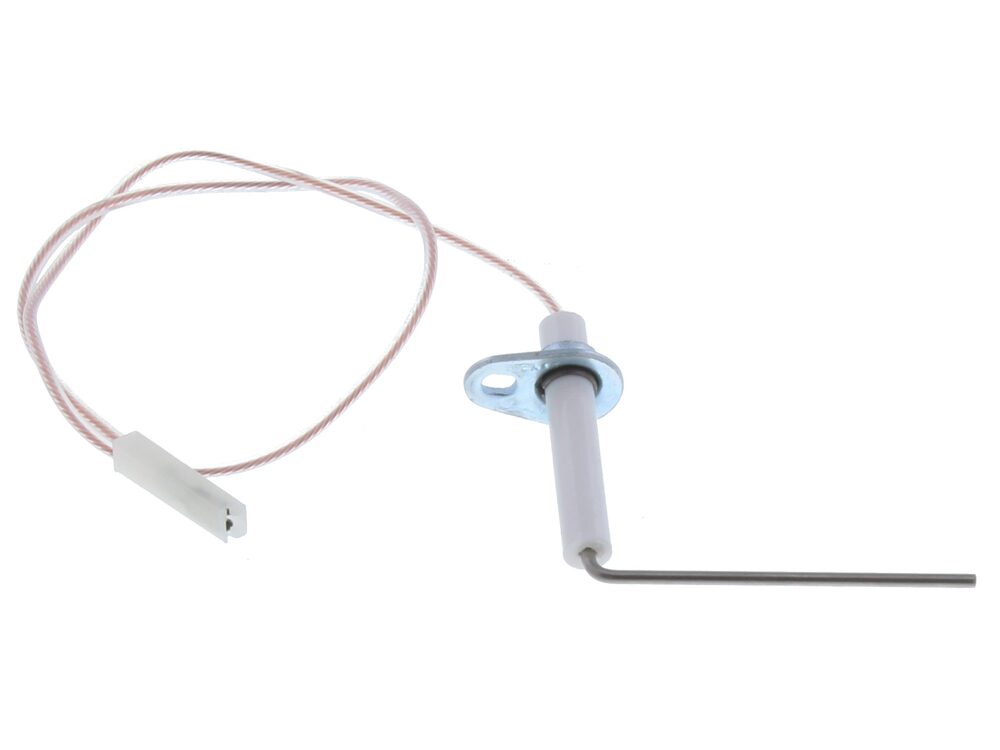

Chaffoteaux Ionisation Electrode 60000231
Ionisation electrode for Chaffoteaux Minima MX2 and Minima SE System gas boilers.
At a glance
- Also known as 1613026
£8.16
£6.80 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The ionisation electrode is a flame sensing component used on Chaffoteaux Minima MX2 and Minima SE System gas boilers. It sits in the burner flame path and returns a small ionisation current to the control board, which confirms that a flame is present and allows the boiler to continue running. If the signal is lost, the board shuts the gas valve and the boiler locks out.
Signs this part needs replacing
- Boiler fires, then locks out after a few seconds because no flame signal is proved
- Repeated lockouts on the flame supervision sequence
- Intermittent shutdown during a demand for heat
- Visible damage to the electrode tip, ceramic insulator or lead
- Soot or oxide build-up on the electrode probe affecting the sensing current
Before you order
- Confirm the boiler model against the fitment list above, including fuel type and whether a clock variant is fitted
- Inspect the existing electrode and its lead for cracks, contamination or poor connection before condemning the part
- Isolate the electrical supply and the gas supply before any work on the burner or electrode
- Check that the fault is not caused by the control board or ignition electrode before ordering
Compliance
| Barcode / EAN | 3234090567168 |
|---|---|
| Alternative numbers | 1613026 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| CHAFFOTEAUX MINIMA MX2 24 FF LPG | — | — | — | |
| CHAFFOTEAUX MINIMA MX2 24 FF LPG CLOCK | — | — | — | |
| CHAFFOTEAUX MINIMA MX2 24 FF NAT GAS | — | — | — | |
| CHAFFOTEAUX MINIMA MX2 30 FF LPG | — | — | — | |
| CHAFFOTEAUX MINIMA MX2 30 FF NAT GAS | — | — | — | |
| CHAFFOTEAUX MINIMA SE SYSTEM 24 FF | — | — | — | |
| CHAFFOTEAUX MINIMA SE SYSTEM 30 FF | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
