Alpha

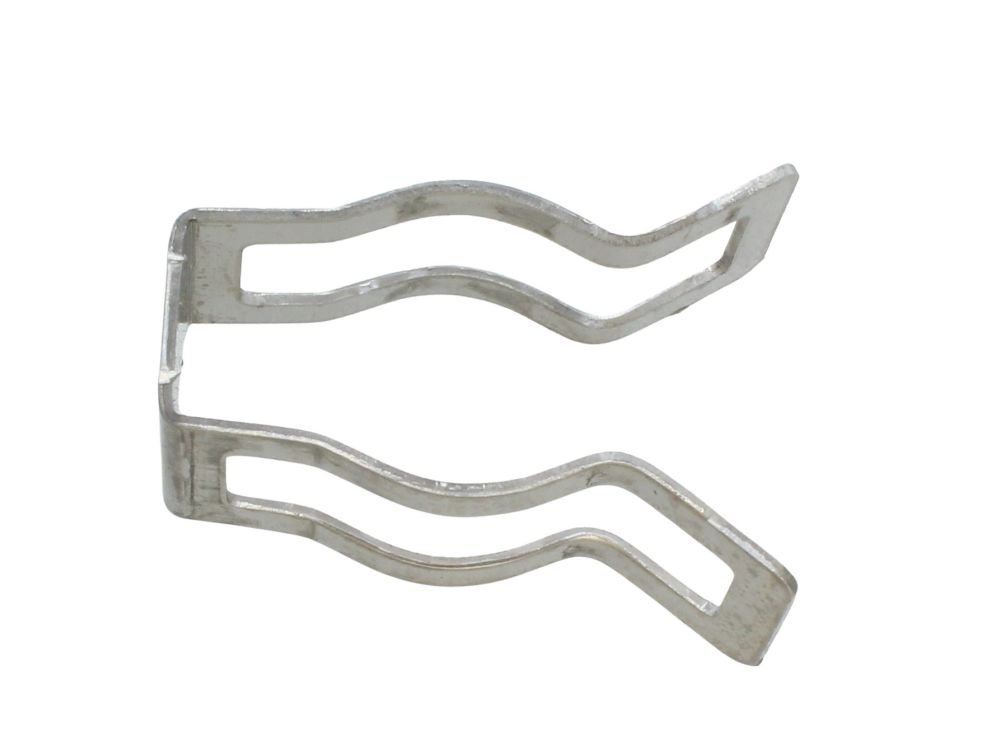

Alpha Clip By-Pass Pipe 6.5108130
By-pass pipe clip for Alpha 240 and 280 series gas boilers, part number 6.5108130.
At a glance
- Also known as CLIP-BY-PASS-PIPE-240280, 1250853
£5.44
£4.53 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Alpha by-pass pipe clip, part number 6.5108130, is a retaining clip used in the pipework assembly of Alpha 240 and 280 series gas boilers. It holds the by-pass pipe in position within the appliance. This part is listed for the Alpha 240 and 280 boiler families.
Signs this part needs replacing
- Clip is cracked, snapped or missing
- By-pass pipe is loose or can be moved by hand
- Corrosion or heat damage visible on the clip
- Rattling or vibration from the pipework inside the boiler casing
- Weeping or staining at the by-pass pipe joint caused by pipe movement
Before you order
- Confirm your boiler model and GC number against the fitment list
- Check the existing clip and pipework to confirm the part is required
- Verify part number 6.5108130 against the manufacturer's parts list for your appliance
Compliance
| GC number | 343-615 |
|---|---|
| Alternative numbers | CLIP-BY-PASS-PIPE-240280, 65108130, 1250853 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA 240 | 47-532-04 | 47-532-04 | — | — |
| ALPHA 240 ECO | 47-532-05 | 47-532-05 | — | — |
| ALPHA 240E | 47-532-06 | 47-532-06 | — | — |
| ALPHA 240E (LPG) | — | — | — | |
| ALPHA 240P | 47-532-09 | 47-532-09 | — | — |
| ALPHA 240X | 47-532-13 | 47-532-13 | — | — |
| ALPHA 240XE | 47-532-11 | 47-532-11 | — | — |
| ALPHA 240XP | 47-532-10 | 47-532-10 | — | — |
| ALPHA 280E | 47-532-08 | 47-532-08 | — | — |
| ALPHA 280E (LPG) | — | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ALPHA appliance manual — 240 (GC 47-532-04), 240E (GC 47-532-06), 240E (LPG), 240P (GC 47-532-09), 280E (GC 47-532-08), 280E (LPG), 280P (GC 47-532-12)
manualmanualALPHA appliance manual — 240 ECO (GC 47-532-05)
manualmanualALPHA appliance manual — 240X (GC 47-532-13)
manualmanualALPHA appliance manual — 240XE (GC 47-532-11), 240XP (GC 47-532-10)
manualNo technical questions yet for this part.
