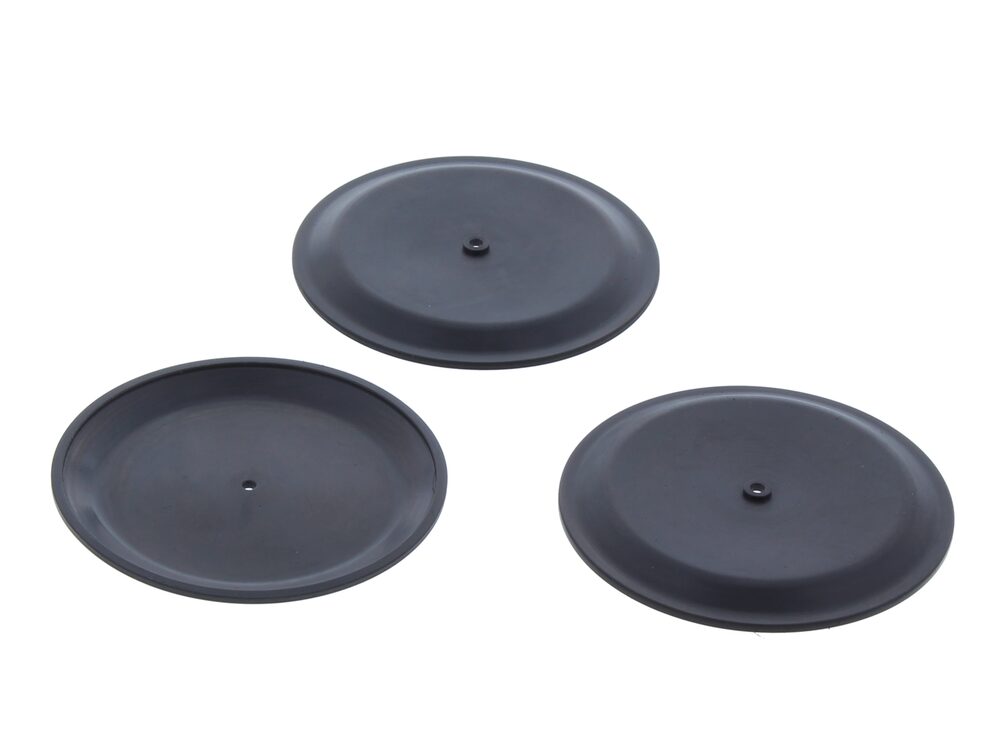

Alpha DHW diaphragm pack of 3 6.1000801
Genuine Alpha DHW (hot water) diaphragms, pack of 3, part number 6.1000801.
At a glance
- Also known as 1250832
- Fitting should be carried out or checked by a Gas Safe registered engineer
Showing prices
£21.28
£17.73 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is a pack of 3 domestic hot water (DHW) diaphragms for affected Alpha boilers, used to reseal the hot water flow valve or diverter assembly. It is a genuine Alpha part, number 6.1000801.
Signs this part needs replacing
- Reduced or fluctuating hot water flow
- Hot water still running when the tap is turned off (diaphragm not sealing)
- Split or perished diaphragm found during servicing
- Noisy or juddering DHW flow valve
Before you order
- Match this part number against the diaphragm fitted to your boiler
- Isolate and drain the relevant circuit before starting work
- Fitting should be carried out or checked by a Gas Safe registered engineer
Compliance
| Alternative numbers | DIAPHRAGM-PACK, 1250832 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA 240 | 47-532-04 | 47-532-04 | — | — |
| ALPHA 240 ECO | 47-532-05 | 47-532-05 | — | — |
| ALPHA 240E | 47-532-06 | 47-532-06 | — | — |
| ALPHA 240E (LPG) | — | — | — | |
| ALPHA 240P | 47-532-09 | 47-532-09 | — | — |
| ALPHA 240X | 47-532-13 | 47-532-13 | — | — |
| ALPHA 240XE | 47-532-11 | 47-532-11 | — | — |
| ALPHA 240XP | 47-532-10 | 47-532-10 | — | — |
| ALPHA 280E | 47-532-08 | 47-532-08 | — | — |
| ALPHA 280E (LPG) | — | — | — |
Showing 10 of 20 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
ALPHA appliance manual — 240 (GC 47-532-04), 240E (GC 47-532-06), 240E (LPG), 240P (GC 47-532-09), 280E (GC 47-532-08), 280E (LPG), 280P (GC 47-532-12)
manualmanualALPHA appliance manual — 240 ECO (GC 47-532-05)
manualmanualALPHA appliance manual — 240X (GC 47-532-13)
manualmanualALPHA appliance manual — 240XE (GC 47-532-11), 240XP (GC 47-532-10)
manualNo technical questions yet for this part.
