Ariston

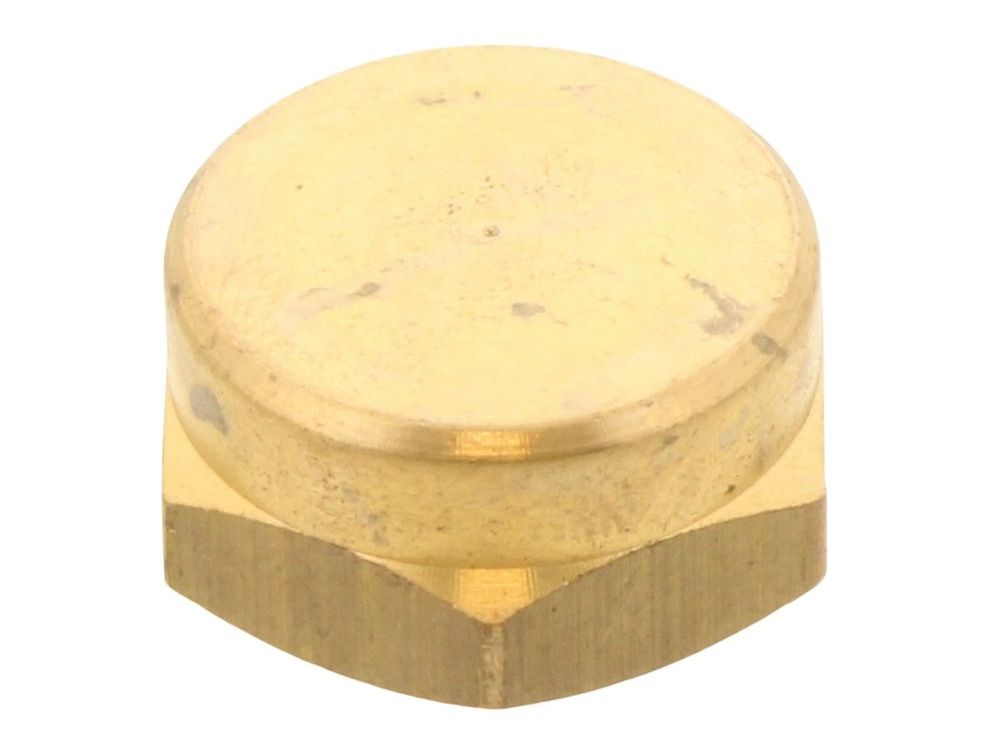

Ariston Brass Cap 1/2 Inch 570571
Ariston 1/2 inch brass cap, part number 570571, for use on Genus 27 BFFI boiler models.
At a glance
- Also known as 1572704
£13.39
£11.16 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 570571 is a 1/2 inch brass cap used as a blanking or sealing fitting on Ariston Genus 27 BFFI boilers. It closes off a 1/2 inch threaded port on the appliance, keeping the hydraulic circuit sealed at that point. The cap is manufactured in brass for resistance to corrosion and to withstand the temperatures and pressures found in a domestic heating system.
Signs this part needs replacing
- Visible weeping or a damp trace around the cap when the system is under pressure
- Green or white corrosion product on the brass, or heavy limescale build-up on the threads
- Rounded or chewed flats on the cap, making it difficult to tighten or remove
- Staining or water marks on the casing or pipework directly below the cap
- Cross-threaded or damaged threads that will not seal correctly
Before you order
- Confirm the port you are blanking is 1/2 inch and that the existing cap matches this thread size
- Check the boiler data badge against the model and edition list above before ordering
- Inspect the mating thread on the appliance for damage, as a worn port will not seal with a new cap
- Confirm whether a sealing washer or jointing compound is required for the joint on your appliance
Compliance
| Barcode / EAN | 5411692068301 |
|---|---|
| Alternative numbers | 1572704 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON GENUS 27 BFFI PLUS LPG EDITION 1 (MAY 2000) | 47-116-11 | 47-116-11 | — | — |
| ARISTON GENUS 27 BFFI PLUS LPG EDITION 2 (OCT 2000) | 47-116-11 | 47-116-11 | — | — |
| ARISTON GENUS 27 BFFI PLUS LPG EDITION 3 (MAY 2001) | 47-116-11 | 47-116-11 | — | — |
| ARISTON GENUS 27 BFFI PLUS LPG EDITION 4 (OCT 2003) | 47-116-11 | 47-116-11 | — | — |
| ARISTON GENUS 27 BFFI PLUS NG EDITION 1 (MAY 2000) | 47-116-11 | 47-116-11 | — | — |
| ARISTON GENUS 27 BFFI PLUS NG EDITION 2 (OCT 2000) | 47-116-11 | 47-116-11 | — | — |
| ARISTON GENUS 27 BFFI PLUS NG EDITION 3 (MAY 2001) | 47-116-11 | 47-116-11 | — | — |
| ARISTON GENUS 27 BFFI PLUS NG EDITION 4 (OCT 2003) | 47-116-11 | 47-116-11 | — | — |
| ARISTON GENUS 27 BFFI UK LPG EDITION 2 (JUN 1998) | 47-116-11 | 47-116-11 | — | — |
| ARISTON GENUS 27 BFFI UK LPG EDITION 3 (DEC 2000) | 47-116-11 | 47-116-11 | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ARISTON appliance manual — GENUS 27 BFFI PLUS LPG EDITION 1 (MAY 2000) (GC 47-116-11), GENUS 27 BFFI PLUS LPG EDITION 2 (OCT 2000) (GC 47-116-11), GENUS 27 BFFI PLUS LPG EDITION 3 (MAY 2001) (GC 47-116-11), GENUS 27 BFFI PLUS LPG EDITION 4 (OCT 2003) (GC 47-116-11), GENUS 27 BFFI PLUS NG EDITION 1 (MAY 2000) (GC 47-116-11), GENUS 27 BFFI PLUS NG EDITION 2 (OCT 2000) (GC 47-116-11), GENUS 27 BFFI PLUS NG EDITION 3 (MAY 2001) (GC 47-116-11), GENUS 27 BFFI PLUS NG EDITION 4 (OCT 2003) (GC 47-116-11)
manualmanualARISTON appliance manual — GENUS 27 BFFI UK LPG EDITION 2 (JUN 1998) (GC 47-116-11), GENUS 27 BFFI UK LPG EDITION 3 (DEC 2000) (GC 47-116-11), GENUS 27 BFFI UK NG EDITION 2 (JUN 1998) (GC 47-116-11), GENUS 27 BFFI UK NG EDITION 3 (DEC 2000) (GC 47-116-11)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
