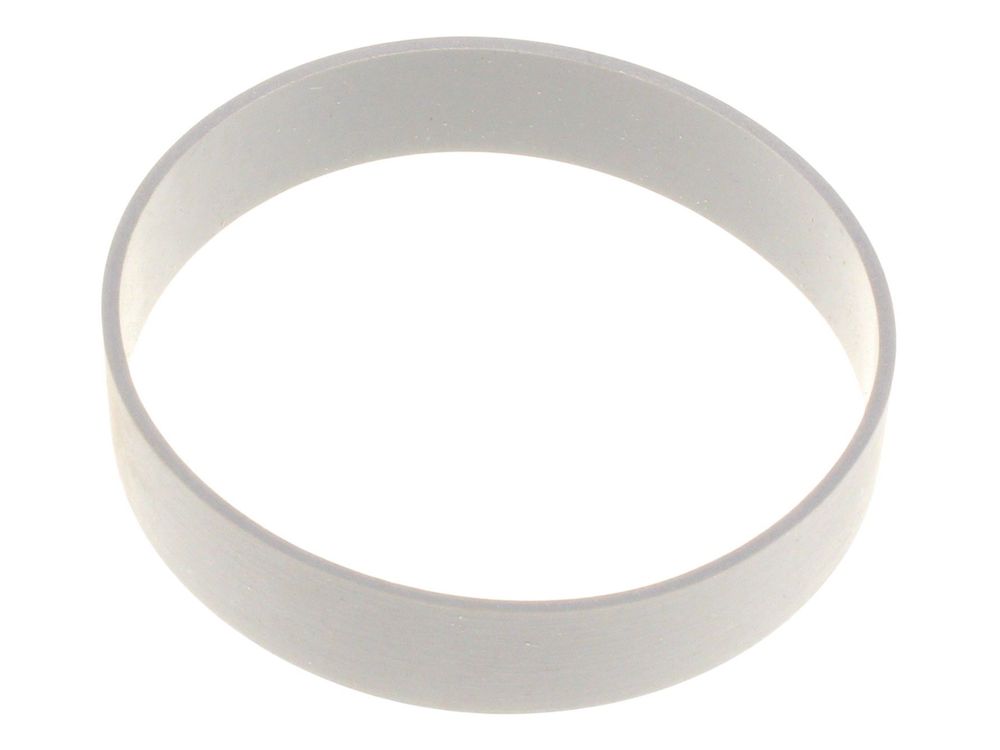

Ariston Fan Seal 569433
Ariston fan seal, part number 569433, for DIA and SX gas boiler fan assemblies.
At a glance
- Part type: fan seal
- Also known as FAN-SEAL, 1572360
£8.42
£7.02 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 569433 is a fan seal used on the fan assembly of Ariston DIA and SX gas boilers. It seals the joint between the fan and its mounting or flue connection, preventing leakage of flue products into the appliance casing. The seal is a service item and is replaced when the original has hardened, split or lost its sealing properties.
Signs this part needs replacing
- Visible splitting, cracking or hardening of the seal material
- Flue gas smell or combustion readings drifting outside expected limits
- Whistling or draught at the fan housing joint
- Seal flattened or deformed so it no longer sits proud of the joint face
- Seal damaged or disturbed during fan removal or servicing
Before you order
- Confirm the boiler model against the fit list above
- Check the existing seal for the part number or match the profile before removal
- Inspect the fan housing and joint face for damage that could prevent a correct seal
- Replace the seal whenever the fan is removed, as refitting a used seal is not advised
Compliance
| Barcode / EAN | 5411692059989 |
|---|---|
| Alternative numbers | FAN-SEAL, 1572360 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON DIA 20 MFFI CE UK LPG | 47-116-03 | 47-116-03 | — | — |
| ARISTON DIA 20 MFFI CE UK MET | 47-116-03 | 47-116-03 | — | — |
| ARISTON DIA 24 MFFI CE UK LPG | 47-116-04 | 47-116-04 | — | — |
| ARISTON DIA 24 MFFI CE UK MET | 47-116-04 | 47-116-04 | — | — |
| ARISTON DIA SYSTEM 27 RFFI LPG | — | — | — | |
| ARISTON DIA SYSTEM 27 RFFI MET | 41-116-02 | 41-116-02 | — | — |
| ARISTON SX 20 MFFI CE LPG PROG. MEC EDITION 1 (JULY 2007) | — | — | — | |
| ARISTON SX 20 MFFI CE NG PROG. MEC EDITION 1 (JULY 2007) | 47-116-02 | 47-116-02 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ARISTON appliance manual — DIA 20 MFFI CE UK LPG (GC 47-116-03), DIA 20 MFFI CE UK MET (GC 47-116-03), DIA 24 MFFI CE UK LPG (GC 47-116-04), DIA 24 MFFI CE UK MET (GC 47-116-04)
manualmanualARISTON appliance manual — DIA SYSTEM 27 RFFI LPG, DIA SYSTEM 27 RFFI MET (GC 41-116-02)
manualmanualARISTON appliance manual — SX 20 MFFI CE LPG PROG. MEC EDITION 1 (JULY 2007), SX 20 MFFI CE NG PROG. MEC EDITION 1 (JULY 2007) (GC 47-116-02)
manualNo technical questions yet for this part.
