Ariston Safety Valve 3 Bar 569292

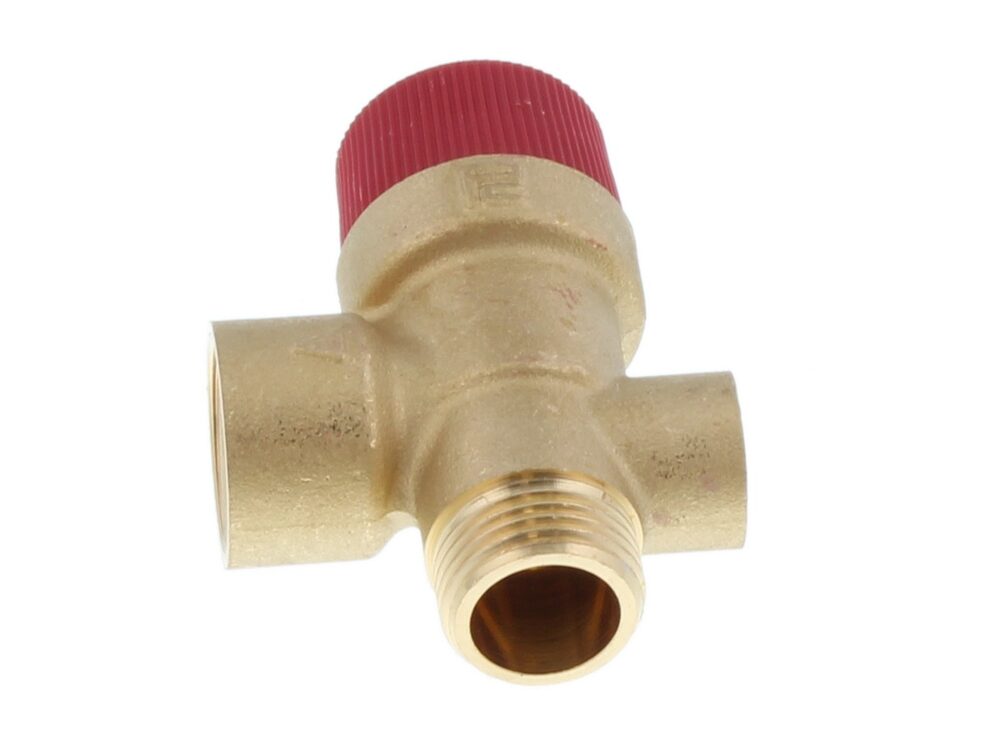

Ariston 569292 3 bar safety valve for Challenger, DIA, Eurocombi, Genus and STYX gas boilers.
At a glance
- Part type: safety valve
- Also known as 1572314
Showing prices
£21.62
£18.02 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 569292 is a 3 bar safety valve used on a range of Ariston gas boilers, including Challenger, DIA, Eurocombi, Genus, STYX and SX models. It opens at its set pressure to discharge excess water and protect the appliance and system from over-pressurisation. It is listed under pressure relief and safety valves in the gas boiler spares range.
Signs this part needs replacing
- Water continually dripping or running from the valve discharge pipe when the system is below its set pressure
- System pressure repeatedly falling, requiring frequent top-ups
- Boiler pressure gauge reading climbing towards or above 3 bar during heating
- Valve outlet weeping or showing scale and corrosion deposits around the seat
- Valve failing to discharge when system pressure exceeds its rating
Before you order
- Confirm your boiler model and serial number against the Fits list, as fitment varies by serial number range on several models
- Check the existing valve is rated at 3 bar
- Inspect the discharge pipework and system pressure before fitting, as debris or a faulty expansion vessel can cause a new valve to weep
Mechanical
| Part type | PRESSURE RELIEF VALVES |
|---|
Compliance
| Manufacturer part number (MPN) | 569292 |
|---|---|
| GC number | 379-978 |
| Barcode / EAN | 5411692058678 |
| Alternative numbers | 1572314 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON ARISTON CHALLENGER 80E | — | — | — | |
| ARISTON ARISTON DIA 20 MFFI CE | — | — | — | |
| ARISTON ARISTON DIA 20 MFFI CE - FROM SERIAL No 96010000 | — | — | — | |
| ARISTON ARISTON DIA 24 MFFI - FROM SERIAL No 96010000 | — | — | — | |
| ARISTON ARISTON DIA 24 MFFI CE | — | — | — | |
| ARISTON ARISTON EUROCOMBI SX20 MFFI CE - FROM SERIAL No 95020000 | — | — | — | |
| ARISTON ARISTON EUROCOMBI SX20 MFFI CE - FROM SERIAL No 96010000 | — | — | — | |
| ARISTON ARISTON GENUS 27 BFFI PLUS - FROM SERIAL No 2320010200001 TO SERIAL No 2320020100002 | — | — | — | |
| ARISTON ARISTON GENUS 27 BFFI PLUS - FROM SERIAL No 2320020100002 TO SERIAL No 2320102500001 | — | — | — | |
| ARISTON ARISTON GENUS 27 BFFI PLUS - FROM SERIAL No 2320317800001 | — | — | — |
Showing 10 of 40 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
ARISTON appliance manual — CHALLENGER 80E (GC 47-116-05)
manualmanualARISTON appliance manual — DIA 20 MFFI CE UK LPG (GC 47-116-03), DIA 20 MFFI CE UK MET (GC 47-116-03), DIA 24 MFFI CE UK LPG (GC 47-116-04), DIA 24 MFFI CE UK MET (GC 47-116-04)
manualmanualARISTON appliance manual — DIA 20 MI CE UK LPG, DIA 20 MI CE UK MET, DIA 24 MI CE UK LPG, DIA 24 MI CE UK MET
manualmanualARISTON appliance manual — DIA SYSTEM 27 RFFI LPG, DIA SYSTEM 27 RFFI MET (GC 41-116-02)
manualmanualARISTON appliance manual — GENUS 27 BFFI PLUS LPG EDITION 1 (MAY 2000) (GC 47-116-11), GENUS 27 BFFI PLUS LPG EDITION 2 (OCT 2000) (GC 47-116-11), GENUS 27 BFFI PLUS LPG EDITION 3 (MAY 2001) (GC 47-116-11), GENUS 27 BFFI PLUS LPG EDITION 4 (OCT 2003) (GC 47-116-11), GENUS 27 BFFI PLUS NG EDITION 1 (MAY 2000) (GC 47-116-11), GENUS 27 BFFI PLUS NG EDITION 2 (OCT 2000) (GC 47-116-11), GENUS 27 BFFI PLUS NG EDITION 3 (MAY 2001) (GC 47-116-11), GENUS 27 BFFI PLUS NG EDITION 4 (OCT 2003) (GC 47-116-11)
manualmanualARISTON appliance manual — GENUS 27 BFFI UK LPG EDITION 2 (JUN 1998) (GC 47-116-11), GENUS 27 BFFI UK LPG EDITION 3 (DEC 2000) (GC 47-116-11), GENUS 27 BFFI UK NG EDITION 2 (JUN 1998) (GC 47-116-11), GENUS 27 BFFI UK NG EDITION 3 (DEC 2000) (GC 47-116-11)
manualmanualARISTON appliance manual — SX 20 MFFI CE LPG PROG. MEC EDITION 1 (JULY 2007), SX 20 MFFI CE NG PROG. MEC EDITION 1 (JULY 2007) (GC 47-116-02)
