Ariston

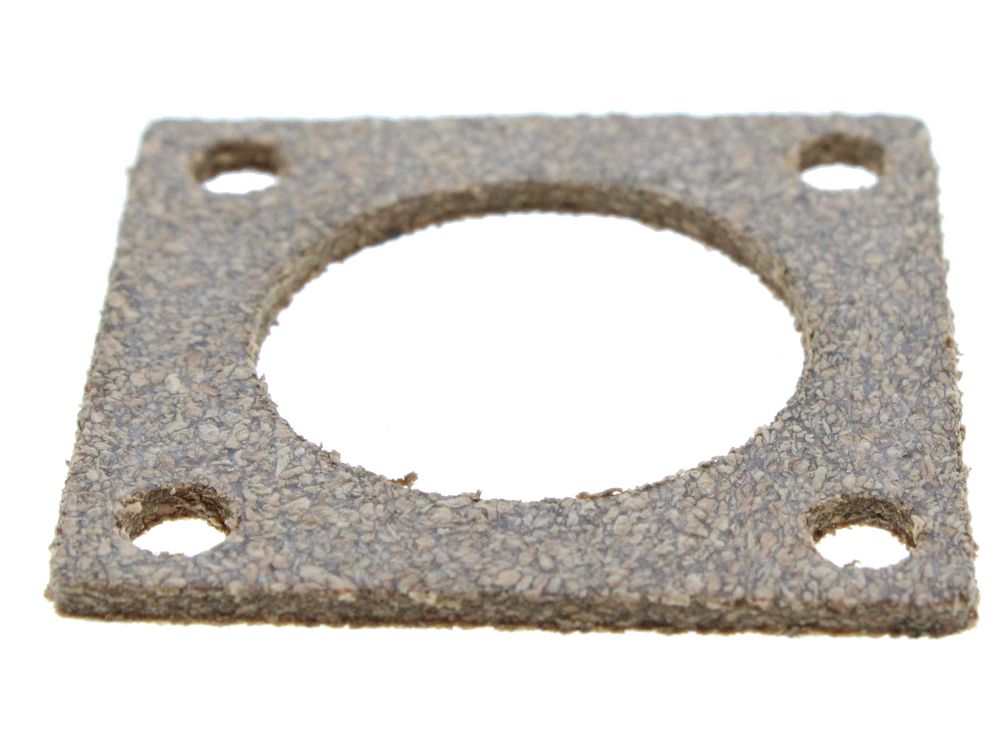

Ariston Gas Valve Gasket 569254
Gas valve gasket for Ariston DIA, Genus and SX gas boilers, part number 569254.
At a glance
- Part type: gasket for the gas valve
- Also known as GASKET-GAS-VALVE, 1572300
- Have the work carried out by a Gas Safe registered engineer, with the gas supply isolated before the joint is opened
£2.53
£2.11 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 569254 is a gasket that seals the joint at the gas valve on a range of Ariston gas boilers. It forms the gas-tight seal between the valve and the component it mounts to, preventing leakage at that connection. It is a service item, replaced whenever the gas valve joint is broken or the existing seal has deteriorated.
Signs this part needs replacing
- A gas smell or a positive leak detection reading at the gas valve joint
- Soap solution bubbling at the valve connection during a tightness test
- Visible cracking, flattening or perishing of the existing gasket
- The gasket has been disturbed or the gas valve has been removed and refitted
- Unstable combustion readings or flame picture traced to a leaking valve joint
Before you order
- Confirm your boiler model against the fitment list above, as the same appliance family uses different valve arrangements
- Check the existing gasket and the gas valve joint to confirm the part is the correct seal for your appliance
- Have the work carried out by a Gas Safe registered engineer, with the gas supply isolated before the joint is opened
Compliance
| Barcode / EAN | 5411692058333 |
|---|---|
| Alternative numbers | GASKET-GAS-VALVE, 1572300 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON DIA 20 MFFI CE UK LPG | 47-116-03 | 47-116-03 | — | — |
| ARISTON DIA 20 MFFI CE UK MET | 47-116-03 | 47-116-03 | — | — |
| ARISTON DIA 20 MI CE UK LPG | — | — | — | |
| ARISTON DIA 20 MI CE UK MET | — | — | — | |
| ARISTON DIA 24 MFFI CE UK LPG | 47-116-04 | 47-116-04 | — | — |
| ARISTON DIA 24 MFFI CE UK MET | 47-116-04 | 47-116-04 | — | — |
| ARISTON DIA 24 MI CE UK LPG | — | — | — | |
| ARISTON DIA 24 MI CE UK MET | — | — | — | |
| ARISTON DIA SYSTEM 27 RFFI LPG | — | — | — | |
| ARISTON DIA SYSTEM 27 RFFI MET | 41-116-02 | 41-116-02 | — | — |
Showing 10 of 16 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ARISTON appliance manual — DIA 20 MFFI CE UK LPG (GC 47-116-03), DIA 20 MFFI CE UK MET (GC 47-116-03), DIA 24 MFFI CE UK LPG (GC 47-116-04), DIA 24 MFFI CE UK MET (GC 47-116-04)
manualmanualARISTON appliance manual — DIA 20 MI CE UK LPG, DIA 20 MI CE UK MET, DIA 24 MI CE UK LPG, DIA 24 MI CE UK MET
manualmanualARISTON appliance manual — DIA SYSTEM 27 RFFI LPG, DIA SYSTEM 27 RFFI MET (GC 41-116-02)
manualmanualARISTON appliance manual — GENUS 27 BFFI UK LPG EDITION 2 (JUN 1998) (GC 47-116-11), GENUS 27 BFFI UK LPG EDITION 3 (DEC 2000) (GC 47-116-11), GENUS 27 BFFI UK NG EDITION 2 (JUN 1998) (GC 47-116-11), GENUS 27 BFFI UK NG EDITION 3 (DEC 2000) (GC 47-116-11)
manualmanualARISTON appliance manual — SX 20 MFFI CE LPG PROG. MEC EDITION 1 (JULY 2007), SX 20 MFFI CE NG PROG. MEC EDITION 1 (JULY 2007) (GC 47-116-02)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
