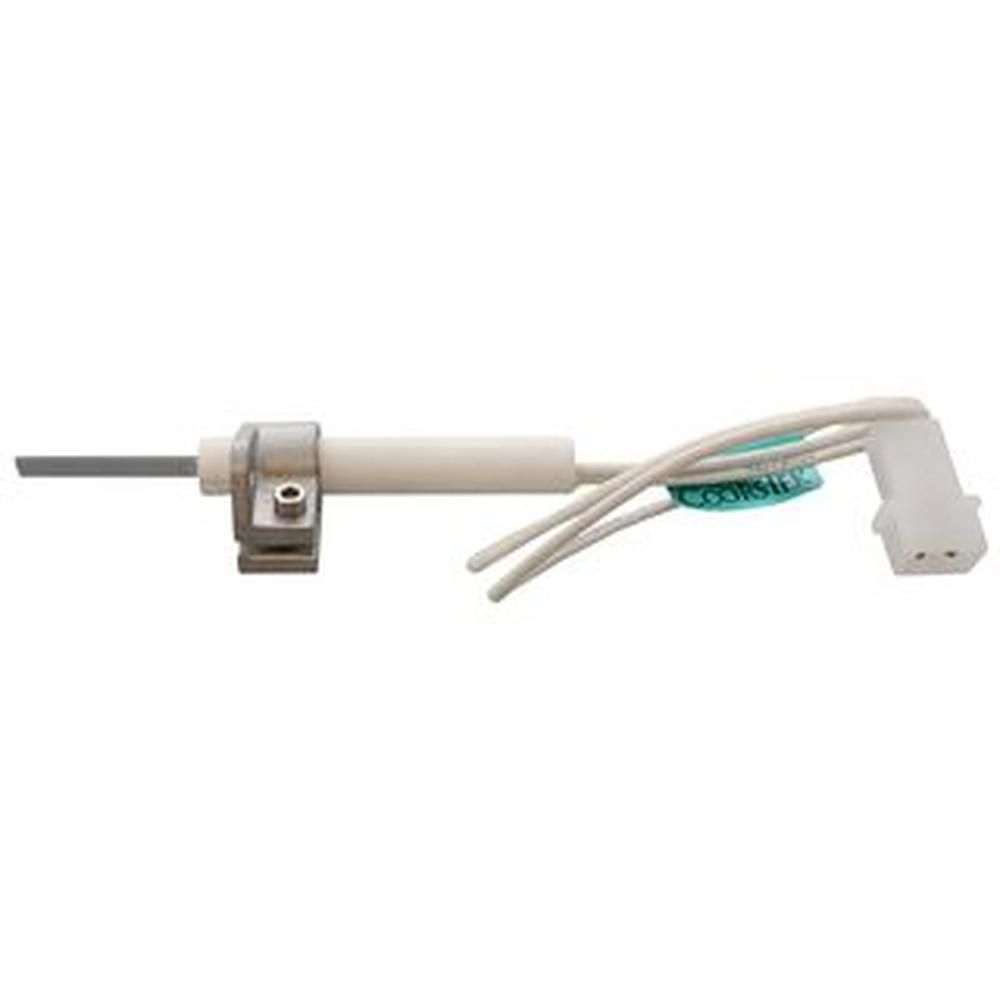

Hamworthy 563801016 Hot Surface Ignitor
Hamworthy 563801016 HSI assembly — a hot surface igniter for Hamworthy heating appliances, used to light the gas burner on a call for heat.
At a glance
- Part type: HSI assembly
- Also known as HAMWORTHY563801016
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£162.00
£135.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Hamworthy 563801016 is a hot surface igniter (HSI) assembly supplied by Hamworthy for use in their heating appliances. It sits in the combustion air path and heats to a high temperature so the gas burner can be lit on a call for heat. Because the element runs hot on every ignition cycle, it is a wear item and a frequent cause of ignition lockout.
Signs this part needs replacing
- The burner fails to light and the appliance locks out on ignition
- The igniter element does not glow when the appliance calls for heat
- Repeated lockouts that clear after a reset and then return
- Visible cracking, discolouration or damage to the ceramic element
- Ignition becomes intermittent, delayed or noisy
Before you order
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Confirm the part number 563801016 against your appliance's rating plate or manual.
- Check the appliance model and GC number before ordering, as Hamworthy used different ignition components across their ranges.
Mechanical
| Part type | Miscellaneous |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 563801016 |
|---|---|
| Barcode / EAN | 563801016 |
| Commodity code | 8516 80 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | HAMWORTHY563801016, 2062849 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HAMWORTHY HAMWORTHY SPARE PARTS | — | — | — | |
| HAMWORTHY PURWELL VARIHEAT PV105HE FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL VARIHEAT PV110C FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL VARIHEAT PV125HE FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL VARIHEAT PV140C FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL VARIHEAT PV180C FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL VARIHEAT PV65HE FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL VARIHEAT PV70C FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL VARIHEAT PV85HE FLOOR STANDING | — | — | — | |
| HAMWORTHY PURWELL VARIHEAT PV95C FLOOR STANDING | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
HAMWORTHY appliance manual — PURWELL VARIHEAT PV105HE FLOOR STANDING, PURWELL VARIHEAT PV125HE FLOOR STANDING, PURWELL VARIHEAT PV65HE FLOOR STANDING, PURWELL VARIHEAT PV85HE FLOOR STANDING
manualmanualHAMWORTHY appliance manual — PURWELL VARIHEAT PV110C FLOOR STANDING, PURWELL VARIHEAT PV140C FLOOR STANDING, PURWELL VARIHEAT PV180C FLOOR STANDING, PURWELL VARIHEAT PV70C FLOOR STANDING, PURWELL VARIHEAT PV95C FLOOR STANDING
manualNo technical questions yet for this part.
