Ariston

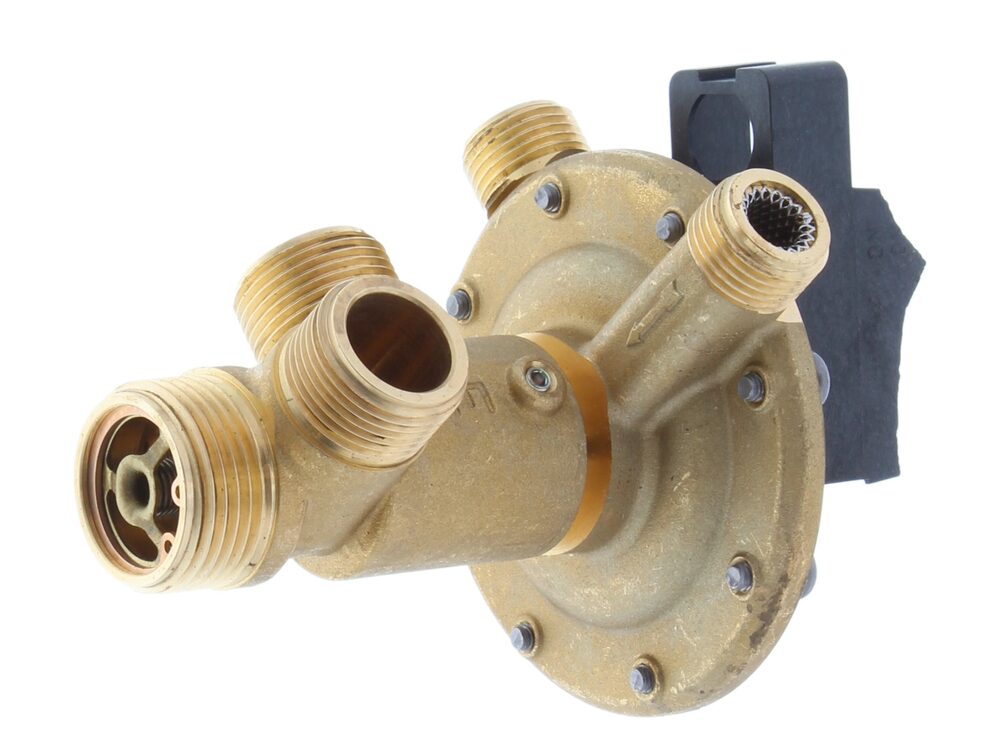

Ariston Diverter Valve DHW C/W Microswitch 560166
Diverter valve for the domestic hot water circuit in Ariston gas boilers, supplied with a microswitch.
At a glance
- Also known as DIVERTER-VALVE-DHW-WITH-MICRO, 1571000, N1445-1
£124.93
£104.11 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 560166 is a diverter valve for the domestic hot water (DHW) circuit, supplied with a microswitch. It is used in Ariston gas boilers to direct water flow between heating and hot water operation. The microswitch is included as part of the valve assembly.
Signs this part needs replacing
- No domestic hot water, or hot water runs cold while central heating continues to work.
- Central heating operates when only hot water is demanded.
- Hot water temperature fluctuates or drops during use.
- The valve does not move between heating and hot water positions.
- The microswitch does not operate, so the boiler does not detect a DHW demand.
Before you order
- Confirm the boiler model and serial number against the fitment list.
- Check the GC number where shown on the appliance.
- Verify the existing valve is marked 560166 and has a microswitch.
- Confirm the appliance is an Ariston gas boiler covered by the listed models.
Mechanical
| Part type | DIVERTER VALVES & HYDRAULICS |
|---|
Compliance
| Manufacturer part number (MPN) | 560166 |
|---|---|
| GC number | 379-821 |
| Barcode / EAN | 5411692053369 |
| Alternative numbers | DIVERTER-VALVE-DHW-WITH-MICRO, 1571000, N1445-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON ARISTON CHALLENGER 80E | — | — | — | |
| ARISTON ARISTON DIA 20 MFFI CE | — | — | — | |
| ARISTON ARISTON DIA 20 MFFI CE - FROM SERIAL No 96010000 | — | — | — | |
| ARISTON ARISTON DIA 24 MFFI - FROM SERIAL No 96010000 | — | — | — | |
| ARISTON ARISTON DIA 24 MFFI CE | — | — | — | |
| ARISTON ARISTON EUROCOMBI SX20 MFFI CE - FROM SERIAL No 95020000 | — | — | — | |
| ARISTON ARISTON EUROCOMBI SX20 MFFI CE - FROM SERIAL No 96010000 | — | — | — | |
| ARISTON ARISTON STYX SX 20 M - FROM SERIAL No 92010000 | — | — | — | |
| ARISTON ARISTON STYX SX 20 MFF - FROM SERIAL No 92010000 | — | — | — | |
| ARISTON CHALLENGER 80E | 47-116-05 | 47-116-05 | — | — |
Showing 10 of 20 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ARISTON appliance manual — CHALLENGER 80E (GC 47-116-05)
manualmanualARISTON appliance manual — DIA 20 MFFI CE UK LPG (GC 47-116-03), DIA 20 MFFI CE UK MET (GC 47-116-03), DIA 24 MFFI CE UK LPG (GC 47-116-04), DIA 24 MFFI CE UK MET (GC 47-116-04)
manualmanualARISTON appliance manual — DIA 20 MI CE UK LPG, DIA 20 MI CE UK MET, DIA 24 MI CE UK LPG, DIA 24 MI CE UK MET
manualmanualARISTON appliance manual — SX 20 MFFI CE LPG PROG. MEC EDITION 1 (JULY 2007), SX 20 MFFI CE NG PROG. MEC EDITION 1 (JULY 2007) (GC 47-116-02)
manualNo technical questions yet for this part.
