Ariston

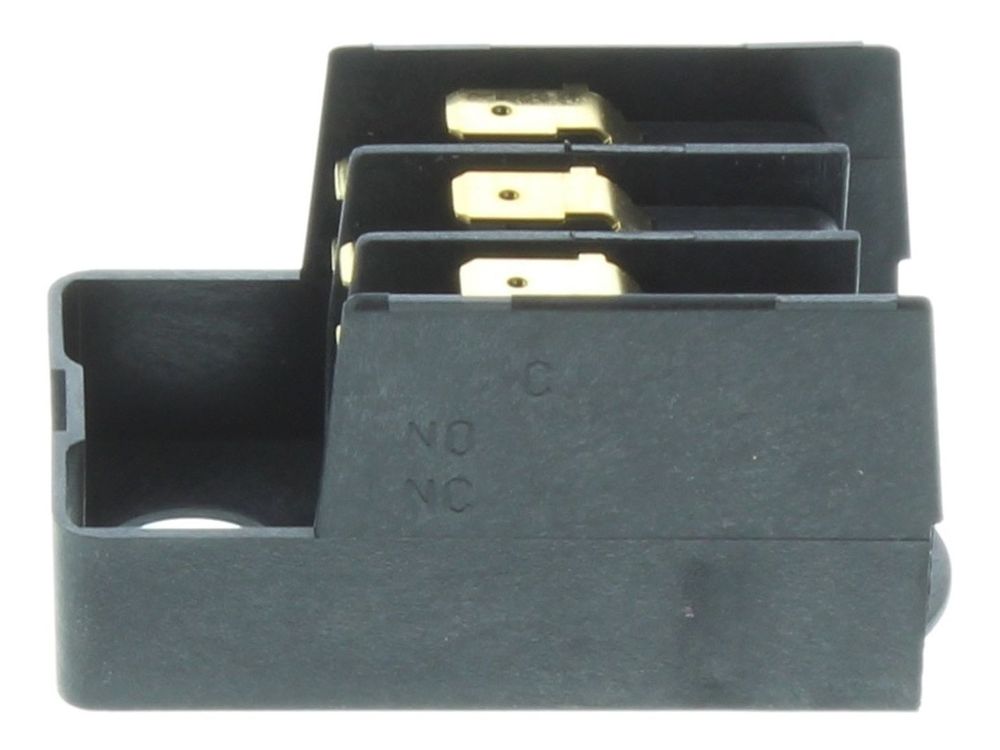

Ariston Microswitch Triple 560146
Triple microswitch, part 560146, for Ariston Challenger 80E, Eurocombi Sx20 MFFI CE and STYX SX 20 M gas boilers.
At a glance
- Also known as 1571034
£26.57
£22.14 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ariston 560146 is a triple microswitch used in Ariston gas boilers. Microswitches of this type are actuated by mechanical movement within the appliance, most commonly at the diverter valve or flow sensing assembly, and pass a switching signal to the boiler control. This three-switch unit provides the multiple switching contacts required by the appliance's control circuit.
Signs this part needs replacing
- Boiler fails to respond to a hot water or heating demand that depends on the switched signal
- Intermittent operation, with the appliance cutting in and out as the switch contact breaks down
- Pump, fan or burner not being energised when the relevant actuator moves
- Audible chattering or repeated clicking from the switch assembly
- No continuity across the switch contacts when the actuator is operated
Before you order
- Confirm the appliance model and, where a serial number threshold is listed, check your boiler's serial number falls within the stated range
- Inspect the existing switch unit and note the terminal arrangement and number of switches before ordering
- Check the part number against the manufacturer's parts list for your specific model
- Ensure the boiler is electrically isolated before any inspection or replacement work
Compliance
| GC number | 379-822 |
|---|---|
| Barcode / EAN | 5411692053161 |
| Alternative numbers | 1571034 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ARISTON ARISTON CHALLENGER 80E | — | — | — | |
| ARISTON ARISTON EUROCOMBI SX20 MFFI CE - FROM SERIAL No 95020000 | — | — | — | |
| ARISTON ARISTON EUROCOMBI SX20 MFFI CE - FROM SERIAL No 96010000 | — | — | — | |
| ARISTON ARISTON STYX SX 20 M - FROM SERIAL No 92010000 | — | — | — | |
| ARISTON ARISTON STYX SX 20 MFF - FROM SERIAL No 92010000 | — | — | — | |
| ARISTON CHALLENGER 80E | 47-116-05 | 47-116-05 | — | — |
| ARISTON SX 20 MFFI CE LPG PROG. MEC EDITION 1 (JULY 2007) | — | — | — | |
| ARISTON SX 20 MFFI CE NG PROG. MEC EDITION 1 (JULY 2007) | 47-116-02 | 47-116-02 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
