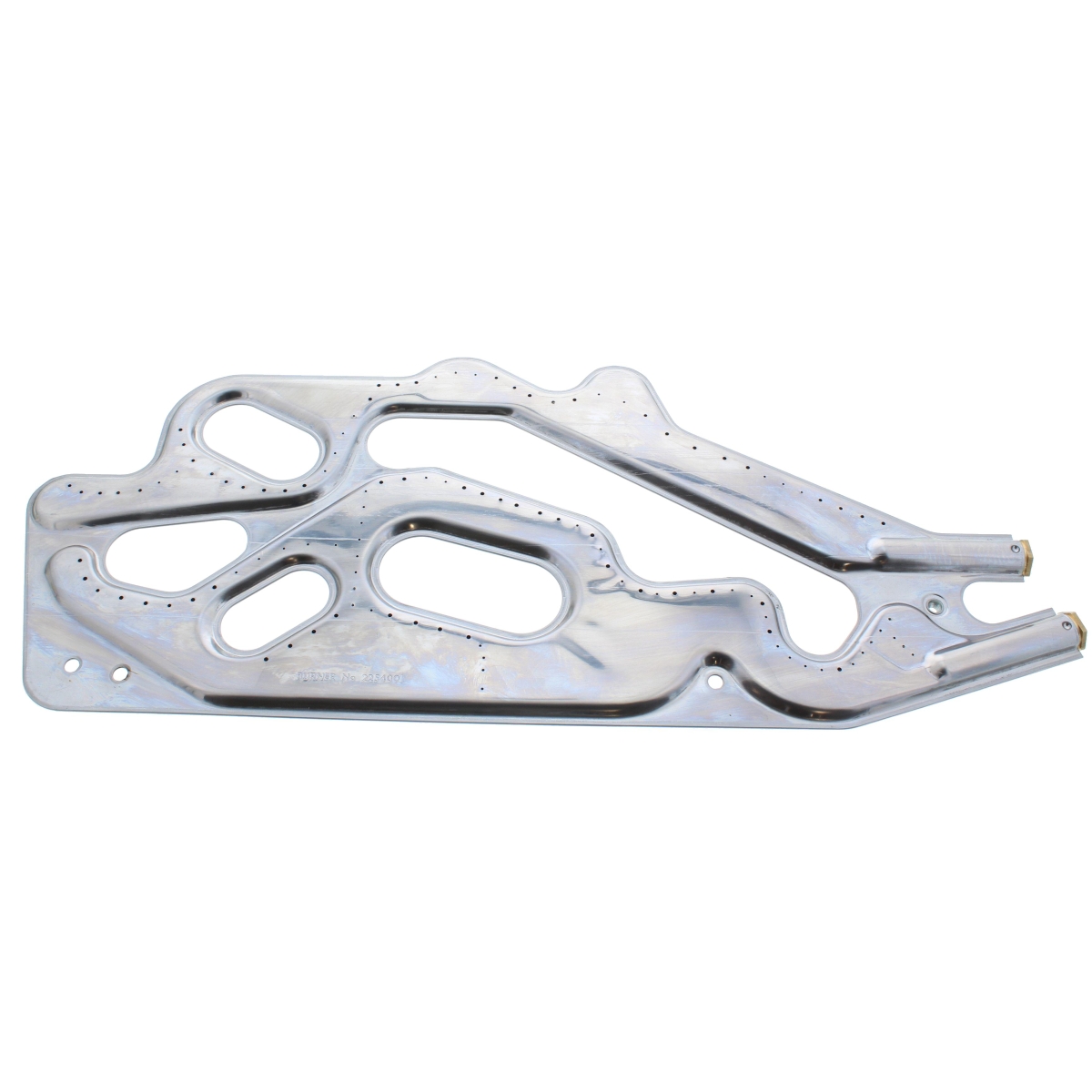

Baxi Burner Assembly Bermuda 5134747
Baxi burner assembly (5134747) for Bermuda, Arena and Baroque gas appliances, delivering and igniting the gas/air mixture in the combustion chamber.
At a glance
- Part type: Burner assembly
- Also known as 1111402
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£84.00
£70.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi burner assembly, part 5134747, is the component that delivers and ignites the gas and air mixture inside the combustion chamber of a gas appliance. Gas is passed through the gas valve and into the burner, where it is ignited, and the heat produced is transferred to the water in the master heat exchanger. It is used across the Baxi Bermuda, Arena and Baroque appliance families.
Signs this part needs replacing
- The appliance fails to light or repeatedly locks out on ignition
- A weak, uneven or yellow flame at the burner
- Sooting or black deposits around the burner and heat exchanger
- Flame lift-off or an unstable flame pattern
- Ignition faults traced back to the burner itself
Before you order
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Check the GC number and appliance model against the compatibility list before ordering.
- Earlier numbers 1111402 and 225400 may appear on the existing component or in older documentation.
- Check whether a gasket or seal is required for the burner mounting.
Mechanical
| Part type | VP/SP/BARQ Spares Burner Kit |
|---|
Compliance
| Manufacturer part number (MPN) | 5134747 |
|---|---|
| GC number | 156-094 |
| Barcode / EAN | 5039177715702 |
| Commodity code | 8416 20 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 225400, 1111402 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI ARENA | 32-077-30 | 32-077-30 | — | — |
| BAXI ARENA SUPER | 32-077-34 | 32-077-34 | — | — |
| BAXI BAROQUE | 32-077-29 | 32-077-29 | — | — |
| BAXI BAROQUE SUPER | 32-077-35 | 32-077-35 | — | — |
| BAXI BAXI ARENA | — | — | — | |
| BAXI BAXI ARENA SUPER | — | — | — | |
| BAXI BAXI BAROQUE | — | — | — | |
| BAXI BAXI BAROQUE SUPER | — | — | — | |
| BAXI BAXI BERMUDA SP | — | — | — | |
| BAXI BAXI BERMUDA SP2 | — | — | — |
Showing 10 of 35 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — ARENA SUPER (GC 32-077-34), BAROQUE SUPER (GC 32-077-35)
manualmanualBAXI appliance manual — BERMUDA SP (GC 37-077-18), BERMUDA VP (GC 37-077-17)
manualmanualBAXI appliance manual — BERMUDA SP3 (GC 37-077-63), BERMUDA SP3 RENEWAL NG (GC 37-075-05), BERMUDA VP3 (GC 37-077-62), BERMUDA VP3 LPG (GC 37-077-72), BERMUDA VP3 RENEWAL LPG (GC 37-075-26), BERMUDA VP3 RENEWAL NG (GC 37-075-04)
manualNo technical questions yet for this part.
