Baxi

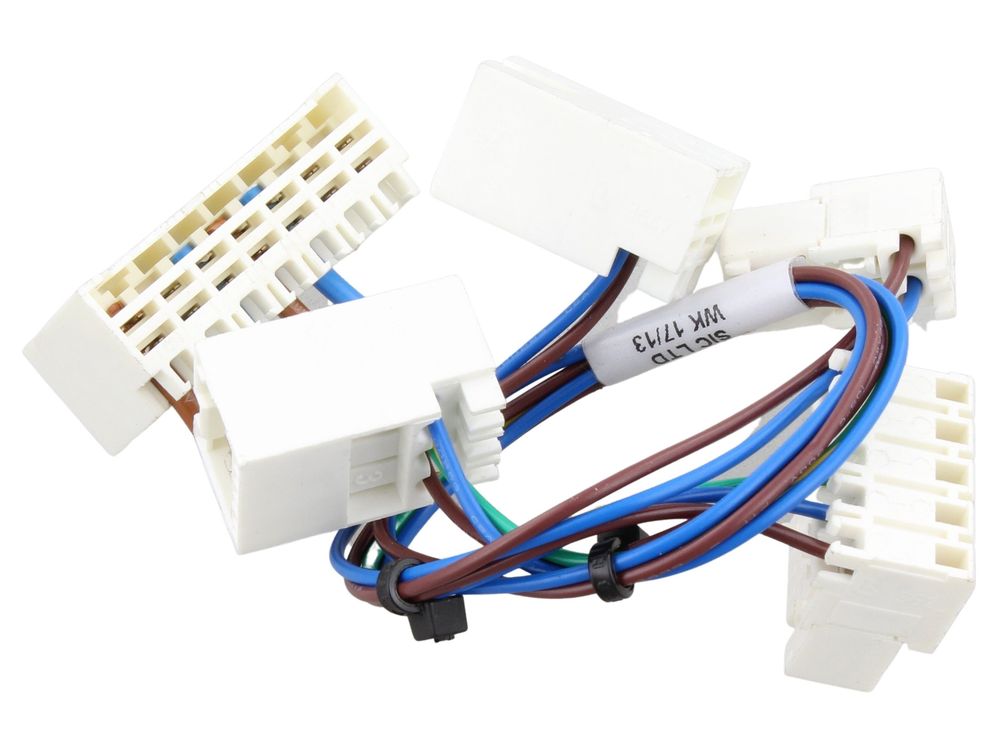

Baxi G83 Power Supply Loom HV 5134153
High-voltage G83 power supply loom, part 5134153, for the Baxi Ecogen 24 gas boiler.
At a glance
- Appliance family: Baxi Ecogen 24
- Also known as 1119634
£45.02
£37.52 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 5134153 is a high-voltage G83 power supply loom used in the Baxi Ecogen 24 appliance. It forms part of the appliance's internal wiring, carrying the high-voltage supply connection within the unit. It is supplied as a wiring component for service and repair work.
Signs this part needs replacing
- The appliance fails to power up or loses power intermittently
- Visible burning, scorching or discolouration on the loom or its connectors
- Brittle, cracked or chafed insulation on the high-voltage conductors
- Loose or corroded terminals at the loom connection points
- Repeated electrical faults traced to the supply wiring rather than the control board
Before you order
- Confirm the appliance model is the Baxi Ecogen 24 before ordering
- Check the existing loom's connectors and routing against the part you intend to fit
- Isolate the electrical supply and verify the fault is with the loom, not the PCB or supply feed
- Have the appliance's model and GC details to hand when checking compatibility
Compliance
| GC number | H76-507 |
|---|---|
| Alternative numbers | 1119634 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI ECOGEN 24 | 41-075-60 | 41-075-60 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
