Baxi

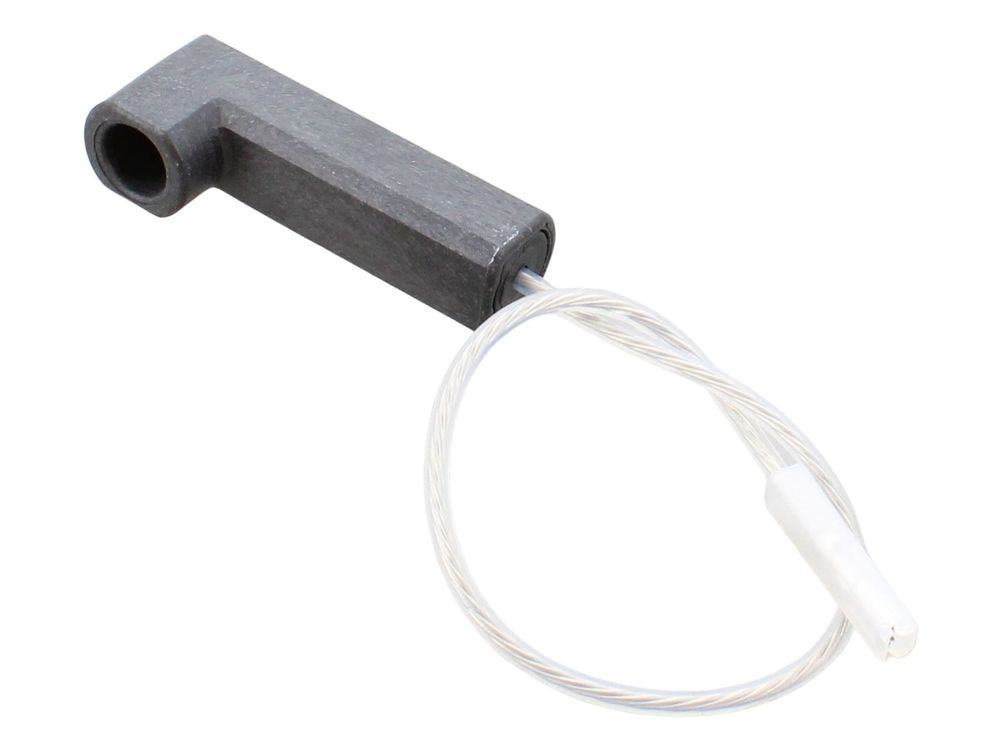

Baxi Ignition Lead 1 kOhm 5129429
Baxi 5129429 1 kOhm ignition lead (HT lead) for Platinum 2 and Duo-tec 2 boilers, carrying the spark to the electrode.
At a glance
- Part type: HT lead (ignition lead)
- Also known as 1118926
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£33.60
£28.00 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 5129429 is an ignition lead, also known as an HT lead, rated at 1 kOhm. It forms part of the ignition circuit on Baxi gas boilers, carrying the high-tension spark from the ignition generator to the spark electrode at the burner. The lead is supplied as a Baxi spare and is used across the Platinum 2 and Duo-tec 2 appliance families.
Signs this part needs replacing
- The boiler attempts to fire but does not ignite and goes to lockout
- No spark is visible at the electrode when the ignition sequence runs
- Ignition is intermittent, with repeated lockouts over several starts
- The lead insulation is cracked, brittle, scorched or otherwise heat-damaged
- Arcing or tracking is visible along the length of the lead or at its connectors
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the lead suits your model.
- Compare the part number on the existing lead with the alternative and previous numbers listed here before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Ignitors & Spark Generators |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 5129429 |
|---|---|
| GC number | H91-930 |
| Barcode / EAN | 5039177693659 |
| Commodity code | 8544 60 10 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 720908401, 1118926 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI PLATINUM 2 28 GA | — | — | — | |
| BAXI BAXI PLATINUM 2 33 GA | — | — | — | |
| BAXI BAXI PLATINUM 2 40 GA | — | — | — | |
| BAXI DUO-TEC 2 COMBI 24 | 47-075-67 | 47-075-67 | — | — |
| BAXI DUO-TEC 2 COMBI 28 | 47-075-68 | 47-075-68 | — | — |
| BAXI DUO-TEC 2 COMBI 40 | 47-075-70 | 47-075-70 | — | — |
| BAXI ECOBLUE ADVANCE COMBI 24 | 47-075-87 | 47-075-87 | — | — |
| BAXI ECOBLUE ADVANCE COMBI 28 | 47-075-88 | 47-075-88 | — | — |
| BAXI ECOBLUE ADVANCE COMBI 33 | 47-075-89 | 47-075-89 | — | — |
| BAXI ECOBLUE ADVANCE COMBI 40 | 47-075-90 | 47-075-90 | — | — |
Showing 10 of 41 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
BAXI appliance manual — DUO-TEC 2 COMBI 24 (GC 47-075-67), DUO-TEC 2 COMBI 28 (GC 47-075-68), DUO-TEC 2 COMBI 40 (GC 47-075-70)
manualmanualBAXI appliance manual — ECOBLUE ADVANCE COMBI 24 (GC 47-075-87), ECOBLUE ADVANCE COMBI 28 (GC 47-075-88), ECOBLUE ADVANCE COMBI 33 (GC 47-075-89), ECOBLUE ADVANCE COMBI 40 (GC 47-075-90)
manualmanualBAXI appliance manual — ECOBLUE ADVANCE COMBI ErP 24 (GC 47-077-14), ECOBLUE ADVANCE COMBI ErP 28 (GC 47-077-15), ECOBLUE ADVANCE COMBI ErP 33 (GC 47-077-16), ECOBLUE ADVANCE COMBI ErP 40 (GC 47-077-17)
manualmanualBAXI appliance manual — ECOBLUE COMBI 24 (GC 47-075-81), ECOBLUE COMBI 28 (GC 47-075-82), ECOBLUE COMBI 33 (GC 47-075-83)
manualmanualBAXI appliance manual — ECOBLUE COMBI ErP 24 (GC 47-077-11), ECOBLUE COMBI ErP 28 (GC 47-077-12), ECOBLUE COMBI ErP 33 (GC 47-077-13)
manualmanualBAXI appliance manual — ECOBLUE PLUS COMBI 24 (GC 47-075-84), ECOBLUE PLUS COMBI 28 (GC 47-075-85), ECOBLUE PLUS COMBI 33 (GC 47-075-86)
manualmanualBAXI appliance manual — ECOBLUE PLUS COMBI ErP 24 (GC 47-077-08), ECOBLUE PLUS COMBI ErP 28 (GC 47-077-09), ECOBLUE PLUS COMBI ErP 33 (GC 47-077-10)
manualmanualBAXI appliance manual — ECOBLUE SYSTEM 12 (GC 41-077-95), ECOBLUE SYSTEM 15 (GC 41-077-96), ECOBLUE SYSTEM 18 (GC 41-077-97), ECOBLUE SYSTEM 24 (GC 41-077-98), ECOBLUE SYSTEM 28 (GC 41-077-99), ECOBLUE SYSTEM 32 (GC 41-470-01)
manualmanualBAXI appliance manual — ECOBLUE SYSTEM ErP 12 (GC 41-470-23), ECOBLUE SYSTEM ErP 15 (GC 41-470-24), ECOBLUE SYSTEM ErP 18 (GC 41-470-25), ECOBLUE SYSTEM ErP 24 (GC 41-470-26), ECOBLUE SYSTEM ErP 28 (GC 41-470-27), ECOBLUE SYSTEM ErP 32 (GC 41-470-28)
manualmanualBAXI appliance manual — PLATINUM 2 28 GA (GC 47-075-61), PLATINUM 2 33 GA (GC 47-075-62), PLATINUM 2 40 GA (GC 47-075-63)
