Baxi

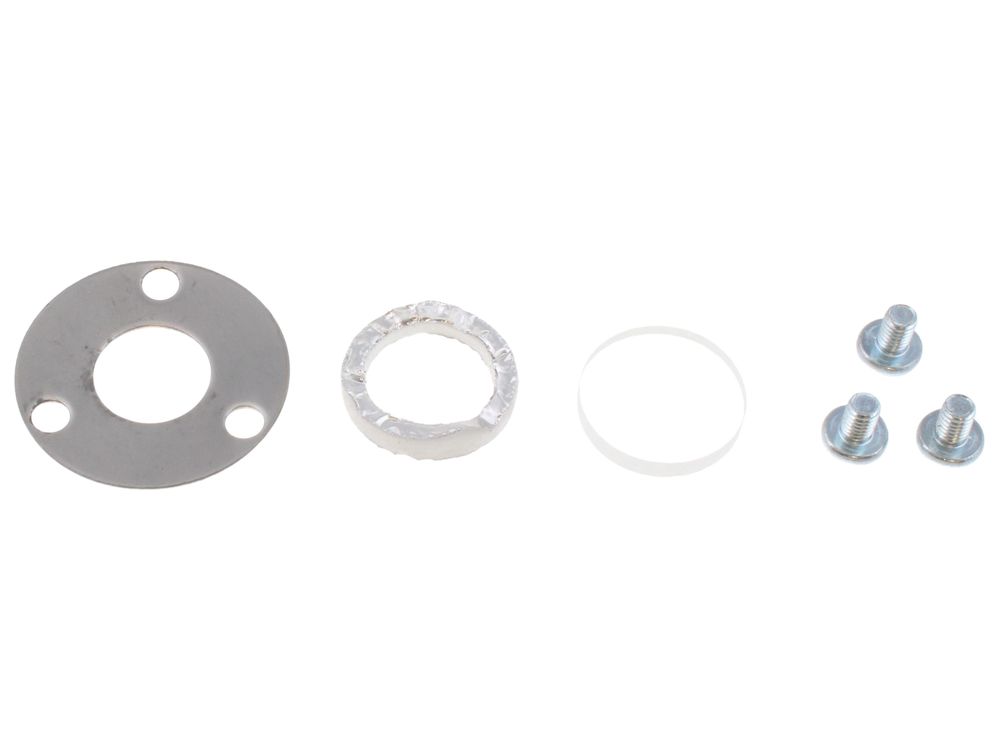

Baxi Viewing Window Assembly 5129198
Viewing window assembly for Baxi Duo-tec and Megaflo gas boilers, part number 5129198.
At a glance
- Part type: viewing window assembly
- Also known as 1118881
Showing prices
£42.59
£35.49 ex. VAT · VAT at 20%
Available to order · 1 working day
Available to order · 1 working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 5129198 is a viewing window assembly used on Baxi gas boilers, including the Duo-tec and Megaflo ranges. It provides the sealed observation point through which the burner flame and combustion chamber can be inspected during servicing. The assembly is listed by Baxi under gas boiler spares.
Signs this part needs replacing
- Cracked, crazed or chipped viewing glass
- Discoloured, scorched or blackened window that obscures flame observation
- Condensation, staining or soot deposits trapped behind the glass
- Damaged or perished sealing around the window, with signs of leakage
- Window loose in its housing or no longer seating correctly
Before you order
- Confirm your boiler model against the fitment list above
- Check the appliance serial number where fitment is listed as before or after a serial number
- Verify the part number 5129198 against your boiler's parts list or data badge
- Inspect the existing window and its seal before ordering to confirm the fault
Compliance
| GC number | H53-953 |
|---|---|
| Alternative numbers | 1118881 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI DUO-TEC 24 COMBI ErP FROM SERIAL No. PSR16 - ENDING BC | 47-075-96 | 47-075-96 | — | — |
| BAXI DUO-TEC 24 COMBI ErP SERIAL No. ENDING AC | 47-075-96 | 47-075-96 | — | — |
| BAXI DUO-TEC 28 COMBI ErP FROM SERIAL No. PSS16 - ENDING BC | 47-075-97 | 47-075-97 | — | — |
| BAXI DUO-TEC 28 COMBI ErP SERIAL No. ENDING AC | 47-075-97 | 47-075-97 | — | — |
| BAXI DUO-TEC 28 HE LPG | 47-075-39 | 47-075-39 | — | — |
| BAXI DUO-TEC 28 LPG COMBI ErP FROM SERIAL No. PSW16 - ENDING BC | 47-075-98 | 47-075-98 | — | — |
| BAXI DUO-TEC 28 LPG COMBI ErP SERIAL No. ENDING AC | 47-075-98 | 47-075-98 | — | — |
| BAXI DUO-TEC 33 COMBI ErP FROM SERIAL No. PSX16 - ENDING BC | 47-075-99 | 47-075-99 | — | — |
| BAXI DUO-TEC 33 COMBI ErP SERIAL No. ENDING AC | 47-075-99 | 47-075-99 | — | — |
| BAXI DUO-TEC 40 COMBI ErP FROM SERIAL No. PST16 - ENDING BC | 47-077-03 | 47-077-03 | — | — |
Showing 10 of 182 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
