Baxi

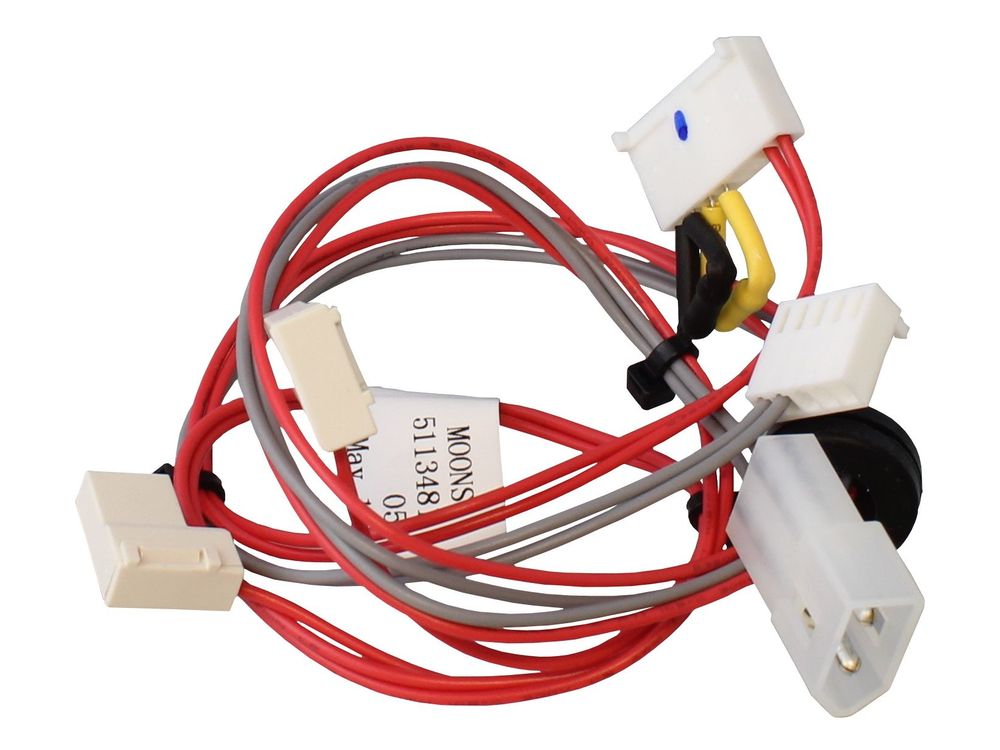

Baxi Wiring Harness Low Voltage 5113481
Low voltage wiring harness, part 5113481, for selected Baxi and Potterton 15kW gas boilers.
At a glance
- Also known as 1123810
£51.11
£42.59 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is a low voltage wiring harness, part number 5113481, used across a range of Baxi and Potterton 15kW gas boilers. It carries low voltage signals between the boiler's control components, so the appliance's electronics can communicate and sequence correctly. It is a plug-in loom rather than a mains voltage lead.
Signs this part needs replacing
- Boiler intermittently fails to fire or drops out during a demand for heat
- Fault codes relating to communication, sensing or control appear and clear at random
- Connectors are corroded, loose, or show signs of heat damage or arcing
- Loom insulation is chafed, cracked or brittle where it passes near hot components
- Boiler responds erratically to the room thermostat or programmer
Before you order
- Confirm your appliance model against the fit list above
- On ErP models, check the serial number suffix (AC or BC) where stated
- Check the existing harness part number and connector layout before removal
- Inspect the loom routing and any clips or grommets that may need attention at the same time
Compliance
| GC number | H51-229 |
|---|---|
| Barcode / EAN | 5039177657828 |
| Alternative numbers | 1123810 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI 50/2 HE PLUS | 41-077-41 | 41-077-41 | — | — |
| BAXI PLATINUM 15 HE | 41-077-90 | 41-077-90 | — | — |
| BAXI SOLO 15 HE | 41-075-46 | 41-075-46 | — | — |
| BAXI SOLO 15HE A | 41-075-66 | 41-075-66 | — | — |
| BAXI SOLO 15HE IE | — | — | — | |
| BAXI SOLO HEAT 15 ErP IE - SERIAL NUMBER ENDING BC | — | — | — | |
| BAXI SOLO HEAT 15 ErP IE SERIAL No. ENDING AC | — | — | — | |
| POTTERTON GOLD H 15 | 41-592-12 | 41-592-12 | — | — |
| POTTERTON GOLD HEAT ErP 15 SERIAL No. ENDING AC | 41-592-51 | 41-592-51 | — | — |
| POTTERTON PROMAX PLUS 15/2 HE | 41-605-52 | 41-605-52 | — | — |
Showing 10 of 13 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — 50/2 HE PLUS (GC 41-077-41)
manualmanualBAXI appliance manual — SOLO 15 HE (GC 41-075-46)
manualmanualBAXI appliance manual — SOLO 15HE A (GC 41-075-66)
manualmanualPOTTERTON appliance manual — GOLD H 15 (GC 41-592-12)
manualmanualPOTTERTON appliance manual — GOLD HEAT ErP 15 SERIAL No. ENDING AC (GC 41-592-51)
manualmanualPOTTERTON appliance manual — PROMAX PLUS 15/2 HE (GC 41-605-52)
manualmanualPOTTERTON appliance manual — PROMAX SL HEAT ErP 15 - SERIAL No. ENDING AC (GC 41-592-35), PROMAX SL HEAT ErP 15 - SERIAL No. ENDING BC (GC 41-592-35)
manualmanualPOTTERTON appliance manual — PROMAX SL PLUS 15 HE (GC 41-591-87)
manualNo technical questions yet for this part.
