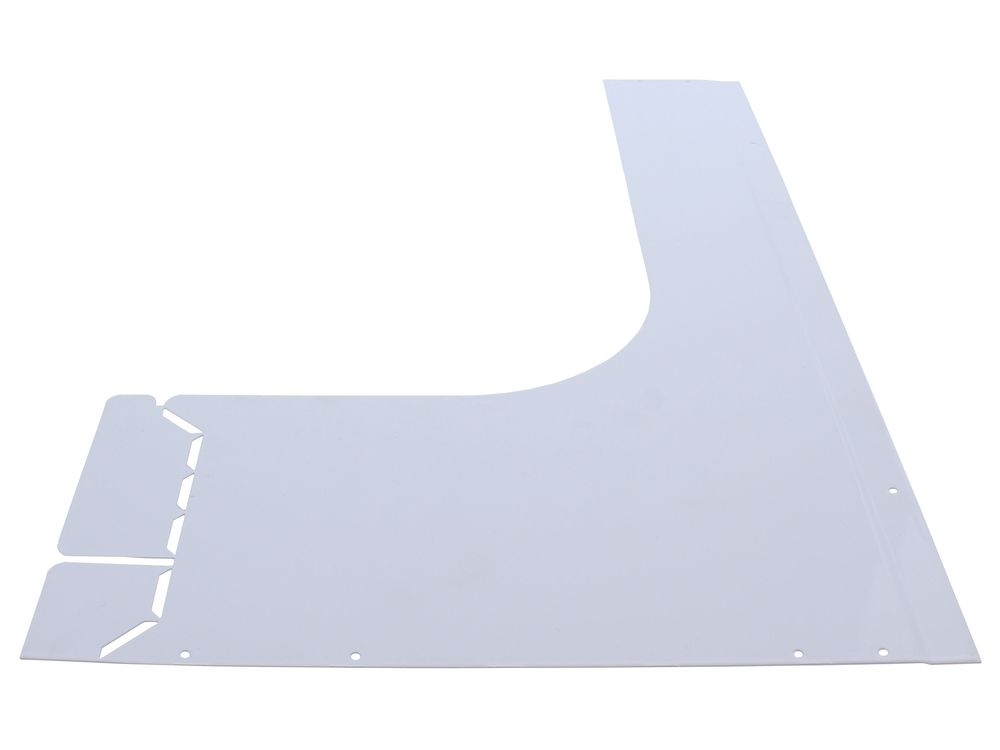

Baxi Bottom Outer Case Panel 5113474
Baxi 5113474 bottom outer case paint panel for Platinum and Solo HE boilers, forming the lower section of the appliance casing.
At a glance
- Part type: Casing assembly
- Also known as 1117978
£26.40
£22.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 5113474 is the bottom outer case paint panel for a range of Baxi Platinum and Solo HE appliances. It forms the lower section of the boiler's outer casing, closing off the underside of the appliance and protecting the components housed behind it. The panel is supplied as a finished painted pressing, so it matches the rest of the casework on the boiler.
Signs this part needs replacing
- Rust, corrosion or blistering across the painted surface of the lower panel
- Flaking or peeling paint on the outer face
- Dents, creasing or deformation from impact during servicing or handling
- Panel sitting proud, loose or failing to seat correctly against the chassis
- Water staining or scorch marks visible on the casing
Before you order
- Check the appliance GC number against the compatibility list below, as the same panel is used across several Platinum and Solo variants.
- Read the model and serial plate on the appliance before ordering to confirm the exact boiler.
- This is not a gas-carrying part, but the outer case must be refitted correctly after any work inside the appliance.
Mechanical
| Part type | Casing assembly |
|---|
Compliance
| Manufacturer part number (MPN) | 5113474 |
|---|---|
| GC number | 151-443 |
| Barcode / EAN | 5039177657781 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1117978 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI PLATINUM 15 HE | — | — | — | |
| BAXI BAXI PLATINUM 24 HE | — | — | — | |
| BAXI BAXI PLATINUM SYSTEM 15HE | — | — | — | |
| BAXI BAXI PLATINUM SYSTEM 24HE | — | — | — | |
| BAXI BAXI SOLO 12 HE | — | — | — | |
| BAXI BAXI SOLO 12HE A | — | — | — | |
| BAXI BAXI SOLO 12HE A IE | — | — | — | |
| BAXI BAXI SOLO 12HE IE | — | — | — | |
| BAXI BAXI SOLO 15 HE | — | — | — | |
| BAXI BAXI SOLO 15HE A | — | — | — |
Showing 10 of 56 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — PLATINUM 24 HE (GC 41-077-91)
manualmanualBAXI appliance manual — SOLO 12 HE (GC 41-075-50), SOLO 15 HE (GC 41-075-46), SOLO 18 HE (GC 41-075-51), SOLO 24 HE (GC 41-075-45), SOLO 30 HE (GC 41-075-44)
manualmanualBAXI appliance manual — SOLO 12HE A (GC 41-075-65), SOLO 15HE A (GC 41-075-66), SOLO 18HE A (GC 41-075-67), SOLO 24HE A (GC 41-075-68), SOLO 30HE A (GC 41-075-69)
manualNo technical questions yet for this part.
