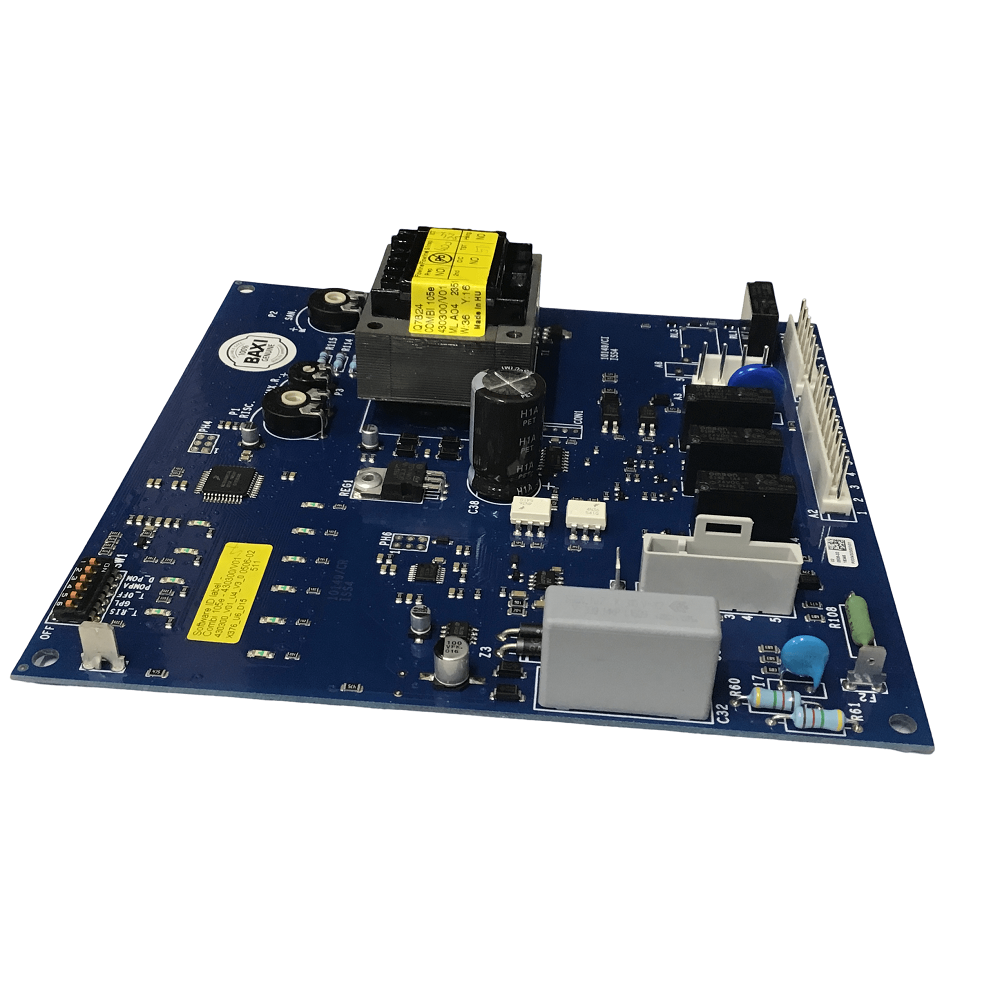

Baxi 5112380 Potterton & Main Printed Circuit Board (PCB)
At a glance
- Part type: Printed circuit board (PCB)
- Appliance family: Baxi Combi and System boilers, plus Main and Potterton equivalents
- Also known as BAXI5112380
£264.60
£220.50 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 5112380 is a printed circuit board (PCB) used to control the operating sequence of a range of Baxi, Main and Potterton gas boilers. It carries the boiler's control logic and switching, handling ignition sequencing, fan and pump control, temperature regulation and safety lockout. The board is supplied as a direct replacement for the original item fitted to the Combi and System models listed below.
Signs this part needs replacing
- Boiler fails to fire or locks out with no fault code shown on the display
- No heating or no hot water, with the pump or fan not running
- Erratic behaviour such as the boiler cycling on and off without demand
- Visible scorching, burn marks or a blown track on the board
- Repeated lockouts that clear temporarily after a power reset
Before you order
- Check the GC number on the appliance data badge against the list above, as the same part number covers several Combi and System variants
- Confirm the boiler model and control version before ordering, since board layout differs between Combi and System appliances
- Isolate the electrical supply to the boiler before removing or fitting the board
- Inspect the wiring harness and plug connections for heat damage while the board is out
Mechanical
| Part type | Printed Circuit Board (PCB) |
|---|
Compliance
| Manufacturer part number (MPN) | 5112380 |
|---|---|
| GC number | H01-109 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5039177655763, BAXI5112380, 262048980114 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI COMBI 105E | 47-075-08 | 47-075-08 | — | — |
| BAXI COMBI 105HE | 47-075-18 | 47-075-18 | — | — |
| BAXI COMBI 80 MAXFLUE | 47-075-07 | 47-075-07 | — | — |
| BAXI COMBI 80E | 47-075-06 | 47-075-06 | — | — |
| BAXI SYSTEM 35/60 | 41-075-18 | 41-075-18 | — | — |
| BAXI SYSTEM 35/80 IE | — | — | — | |
| BAXI SYSTEM 60/100 | 41-075-19 | 41-075-19 | — | — |
| BAXI SYSTEM 60/100 IE | — | — | — | |
| BAXI SYSTEM IE 24 HE MEGAFLO LPG | 51-297-58 | 51-297-58 | — | — |
| BAXI SYSTEM IE 28 HE MEGAFLO LPG | 51-297-59 | 51-297-59 | — | — |
Showing 10 of 20 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — COMBI 105E (GC 47-075-08), COMBI 80E (GC 47-075-06)
manualmanualBAXI appliance manual — COMBI 105HE (GC 47-075-18)
manualmanualBAXI appliance manual — COMBI 80 MAXFLUE (GC 47-075-07)
manualmanualBAXI appliance manual — SYSTEM 35/60 (GC 41-075-18), SYSTEM 60/100 (GC 41-075-19)
manualmanualBAXI appliance manual — SYSTEM IE 24 HE MEGAFLO LPG (GC 51-297-58), SYSTEM IE 28 HE MEGAFLO LPG (GC 51-297-59)
manualmanualPOTTERTON appliance manual — PERFORMA 28 (GC 47-393-07)
manualmanualPOTTERTON appliance manual — PERFORMA 30 HE (GC 47-393-13)
manualmanualPOTTERTON appliance manual — PERFORMA SYSTEM 12E (GC 41-590-88), PERFORMA SYSTEM 18E (GC 41-590-89), PERFORMA SYSTEM 24E (GC 41-590-90), PERFORMA SYSTEM 28E (GC 41-590-91)
manualmanualPOTTERTON appliance manual — PERFORMA SYSTEM 12HE (GC 41-591-24), PERFORMA SYSTEM 18HE (GC 41-591-25), PERFORMA SYSTEM 24HE (GC 41-591-26), PERFORMA SYSTEM 28HE (GC 41-591-27)
manualNo technical questions yet for this part.
