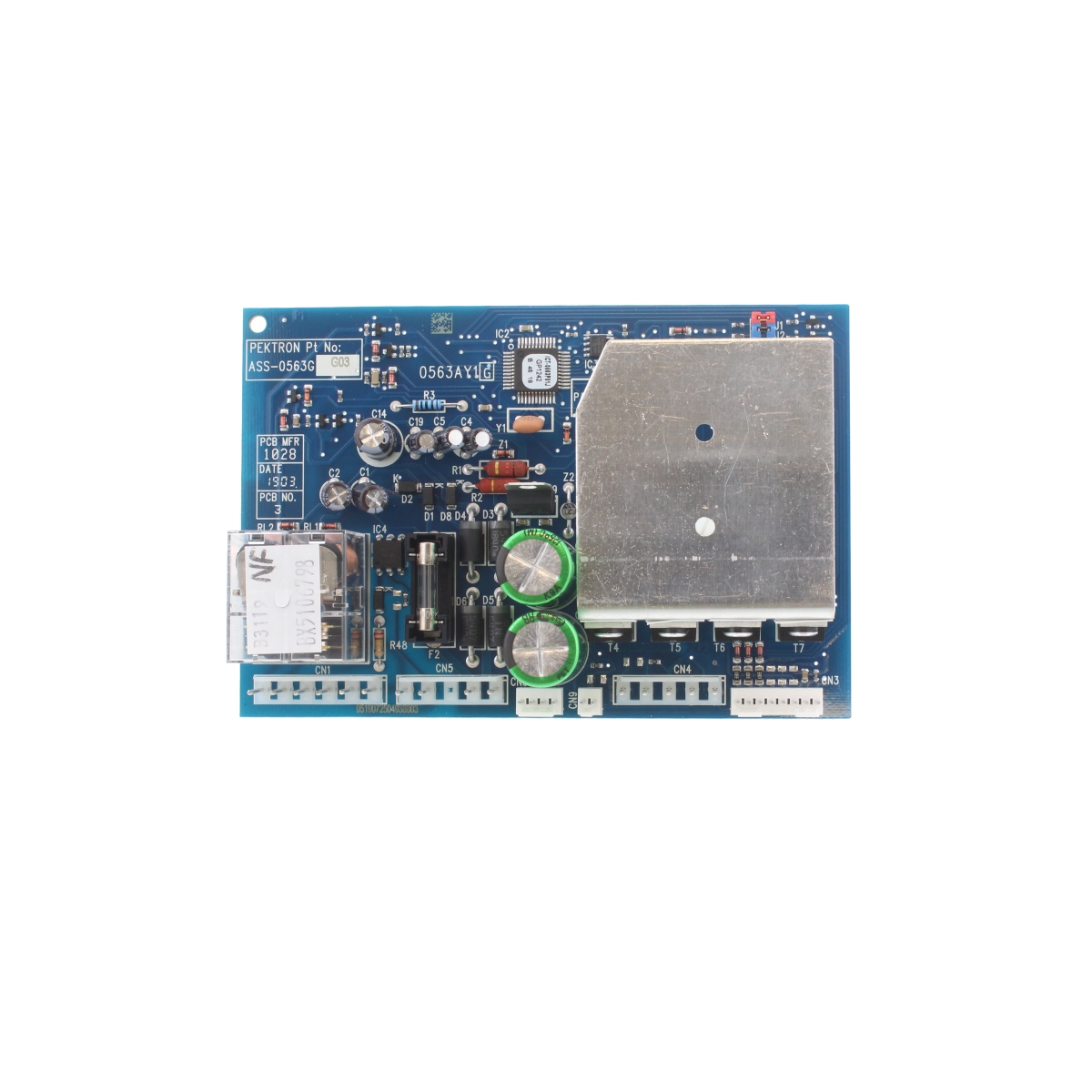

Baxi Electronic Controller PCB Promax 5106791
Baxi electronic controller printed circuit board (5106791) for Baxi and Potterton Promax 15HE boilers, monitoring boiler processes and safety cut-outs.
At a glance
- Part type: Electronic controller printed circuit board (PCB)
- Also known as 1117534
£380.66
£317.22 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi electronic controller printed circuit board, part 5106791, is the control centre of the boiler. It monitors and controls every process occurring throughout the system through switches, thermostats and sensors. It also enforces safety precautions, turning off boiler operations when internal readings point to a fault such as excessive pressure or a low water level.
Signs this part needs replacing
- The boiler fails to fire or does not respond to a call for heat
- Repeated lockouts or fault codes shown on the boiler display
- Thermostat, programmer or switch inputs are ignored
- The boiler shuts down unexpectedly on a pressure or water level reading
- Intermittent running that clears briefly after a power cycle
Before you order
- Confirm the GC number 41-590-58 and the exact appliance model before ordering.
- Cross-check the alternative part number 1117534 against the board being removed.
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 5106791 |
|---|---|
| GC number | 41-590-58 |
| Barcode / EAN | 5039177646051 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1117534 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI PROMAX 15HE | — | — | — | |
| POTTERTON POTTERTON PROMAX 15HE | — | — | — | |
| POTTERTON PROMAX 15HE | 41-590-58 | 41-590-58 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
