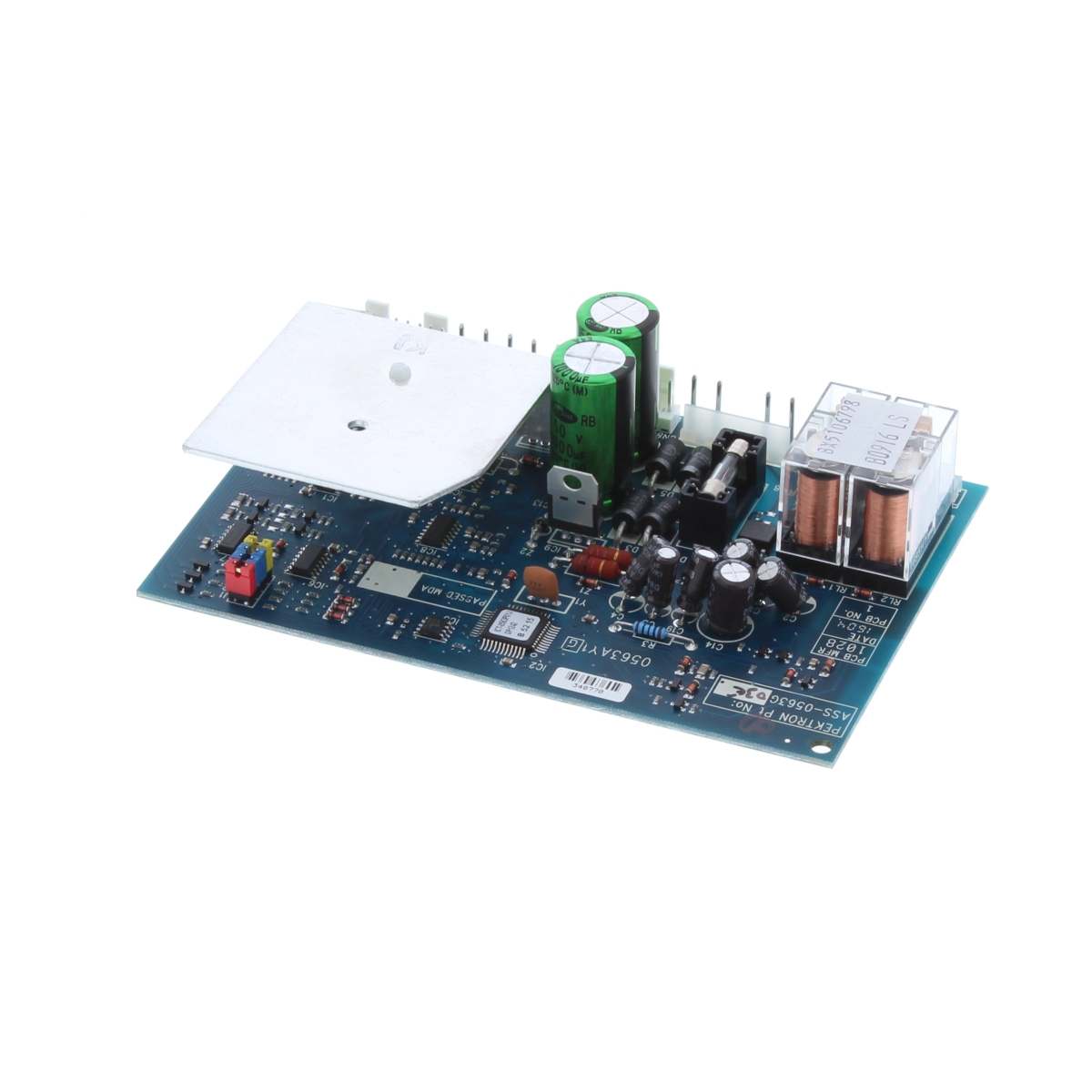

Baxi Printed Circuit Board Promax 24HE 5106588
Baxi Promax 24HE printed circuit board (5106588) that monitors boiler processes and enforces safety shutdowns; fits 3 Baxi and Potterton models.
At a glance
- Part type: Printed circuit board (PCB), electronics and controls
- Also known as 1117520
£324.00
£270.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 5106588 is a printed circuit board (PCB) that acts as the electronic control centre of a Promax 24HE boiler. It monitors and controls the processes running through the system using switches, thermostats and sensors, and it enforces safety by shutting the boiler down when internal readings point to a fault such as excessive pressure or a low water level. It is supplied by Baxi as a single replacement board for the Promax 24HE family.
Signs this part needs replacing
- The boiler locks out or fails to fire, with no response to a call for heat or hot water.
- Fault or error codes appear on the boiler display and cannot be cleared by a reset.
- The boiler runs intermittently, cutting out part-way through a cycle.
- The appliance shuts down on a safety trip linked to pressure or water level readings.
- Switches, thermostats or sensors connected to the board stop being recognised or acted upon.
Before you order
- Confirm the GC number and model on the boiler data badge against the compatibility list, as the board is specific to the Promax 24HE.
- Note the alternative part number 1117520 when cross-referencing an existing board or an older order.
- Check whether any seals or gaskets disturbed during access need replacing at the same time.
Mechanical
| Part type | KIT-PCB ELECT CTLR PROMAX 24HE |
|---|
Compliance
| Manufacturer part number (MPN) | 5106588 |
|---|---|
| GC number | 41-590-62 |
| Barcode / EAN | 5039177645726 |
| Commodity code | 8537 10 91 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1117520 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI PROMAX 24HE | — | — | — | |
| POTTERTON POTTERTON PROMAX 24HE | — | — | — | |
| POTTERTON PROMAX 24HE | 41-590-62 | 41-590-62 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
