Baxi

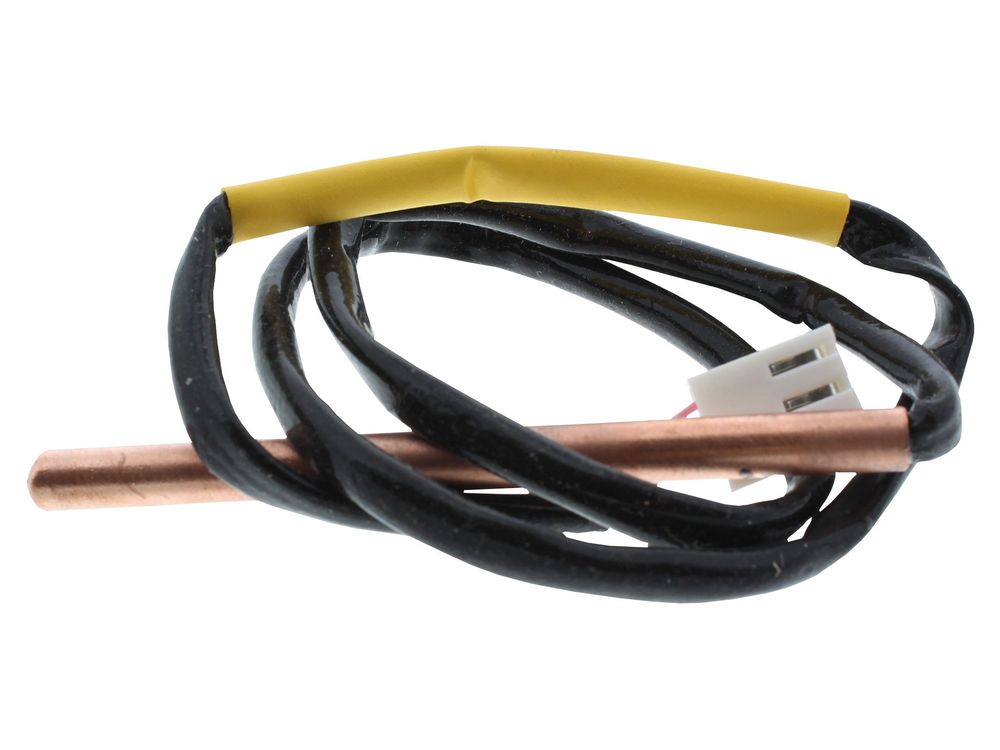

Baxi Temperature Sensor Assembled 5106471
Baxi assembled temperature sensor (thermistor) 5106471 for Bermuda 51/5 Outset and Inset 3 50/5 and 50/6 appliances.
At a glance
- Part type: Temperature sensor (thermistor), assembled
- Also known as 1117508
£65.80
£54.83 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi temperature sensor assembly, part 5106471, is a thermistor-based sensor used to monitor temperature within Baxi Bermuda appliances. It is supplied as an assembled unit rather than a bare thermistor. As the sensed temperature rises, the resistance of the thermistor falls, and the electronic control board reads that change to determine whether more or less heat is needed.
Signs this part needs replacing
- The appliance fires but delivers little or no usable heat
- Domestic hot water temperature drifts, fluctuates or runs cold
- The control board reports a temperature-related fault or locks out
- Radiators or stored water stay cold despite a call for heat
- Frequent short cycling as the control acts on incorrect temperature feedback
Before you order
- Check the GC number on the appliance data badge against the numbers listed above
- Confirm the part number on the existing sensor matches 5106471 before ordering
- Cross-reference the alternative number 1117508 when checking older manuals or stock records
- Inspect the sensor seal and mounting during removal and renew if it shows signs of damage
Mechanical
| Part type | Thermostats, Thermistors & Sensors |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 5106471 |
|---|---|
| GC number | E94-895 |
| Barcode / EAN | 5039177645566 |
| Commodity code | 9025 80 40 90 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1117508 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI BERMUDA 51/5 OUTSET | — | — | — | |
| BAXI BAXI BERMUDA INSET 3 50/5 | — | — | — | |
| BAXI BAXI BERMUDA INSET 3 50/6 | — | — | — | |
| BAXI BERMUDA 51/5 OUTSET BOILER | 44-075-06 | 44-075-06 | — | — |
| BAXI BERMUDA INSET 3 50/5 | 44-075-07 | 44-075-07 | — | — |
| BAXI BERMUDA INSET 3 50/6 | 44-075-08 | 44-075-08 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
