Potterton

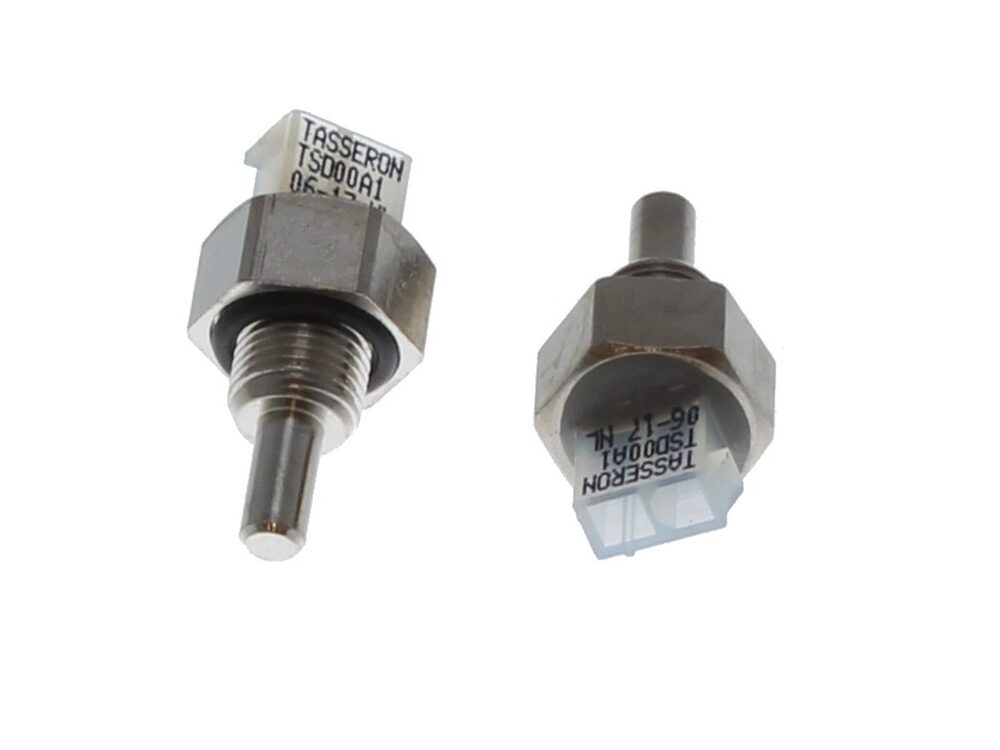

Potterton Immersion Sensor 5106289
Immersion sensor for Potterton Powermax HE85, HE115 and HE150 boilers, used to sense stored water temperature.
At a glance
- Appliance family: Powermax HE
- Also known as 1151284
£86.39
£71.99 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The immersion sensor 5106289 is a Potterton temperature sensor for the Powermax HE range of gas boilers. It sits in the stored water volume and relays water temperature back to the boiler control, which uses that reading to manage heating and hot water demand. It is a service part rather than a wear item, and is replaced when the sensor itself fails or its reading drifts.
Signs this part needs replacing
- Stored water temperature reads incorrectly, so the boiler responds late or not at all to demand
- Hot water runs consistently cooler or hotter than the set point
- The boiler locks out or throws a temperature-related fault during a hot water cycle
- Sensor resistance readings fall outside the expected range for the water temperature at the probe
- Visible damage, corrosion or a poor seal at the sensor body or wiring
Before you order
- Confirm the appliance model against the fit list above
- Check the GC number on the boiler data badge matches the appliance you are working on
- Read the part number off the sensor being removed and compare it with 5106289
- Inspect the sensor pocket, seal and wiring plug for damage before fitting a new sensor
Compliance
| GC number | E83-483 |
|---|---|
| Barcode / EAN | 5039177645184 |
| Alternative numbers | 1151284 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| POTTERTON POWERMAX HE115 | 41-389-16 | 41-389-16 | — | — |
| POTTERTON POWERMAX HE150 | 41-389-17 | 41-389-17 | — | — |
| POTTERTON POWERMAX HE85 | 41-389-15 | 41-389-15 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
