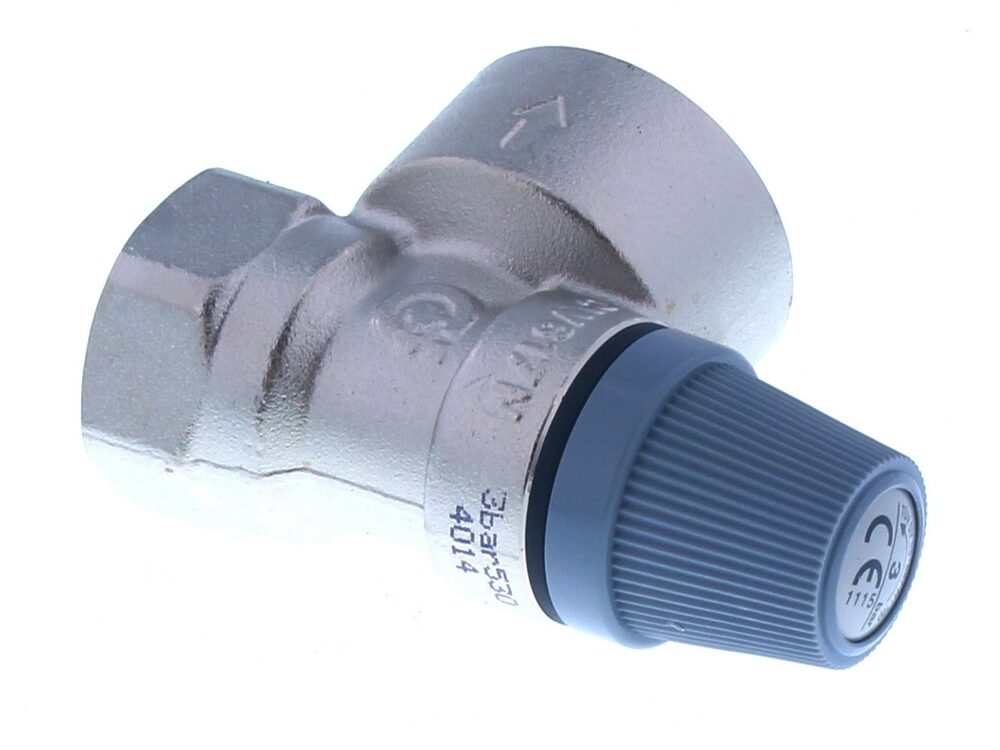

Vaillant Pressure Relief Valve 509228
Pressure relief valve for Vaillant VU 656 series gas boilers, used to discharge excess system pressure safely.
At a glance
- Part type: pressure relief valve
- Appliance family: VU 656 series gas boilers
- Also known as 1382806, N3897
£74.10
£61.75 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 509228 is a pressure relief valve used in Vaillant gas boilers. It opens automatically when system pressure exceeds the set limit, discharging water to prevent damage to the boiler and connected pipework. It is fitted to the VU 656 range of appliances.
Signs this part needs replacing
- Water weeping or dripping from the discharge pipe when the system is at normal operating pressure
- System pressure repeatedly dropping, requiring frequent topping up
- Visible scale, corrosion or debris around the valve seat or outlet
- Valve failing to discharge when system pressure rises above the set limit
- Water tracking from the valve body onto surrounding components
Before you order
- Confirm the boiler model against the fitment list above, as the valve is specific to the VU 656 range
- Check the existing valve body and outlet for the part number or matching configuration
- Verify the system pressure gauge reading and confirm the fault lies with the valve rather than the expansion vessel or filling loop
- Have the system isolated and drained before fitting
Compliance
| Barcode / EAN | 4024074482605 |
|---|---|
| Alternative numbers | 1382806, N3897 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VU 656-7 | 41-044-59 | 41-044-59 | — | — |
| VAILLANT VU 656/4-5 | 41-044-59 | 41-044-59 | — | — |
| VAILLANT ecoMAX 665 VU 656-7 (2006-2006) | 41-044-59 | 41-044-59 | — | — |
| VAILLANT ecoTEC VU 656/4-5 (2007-2015) | 41-044-59 | 41-044-59 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
