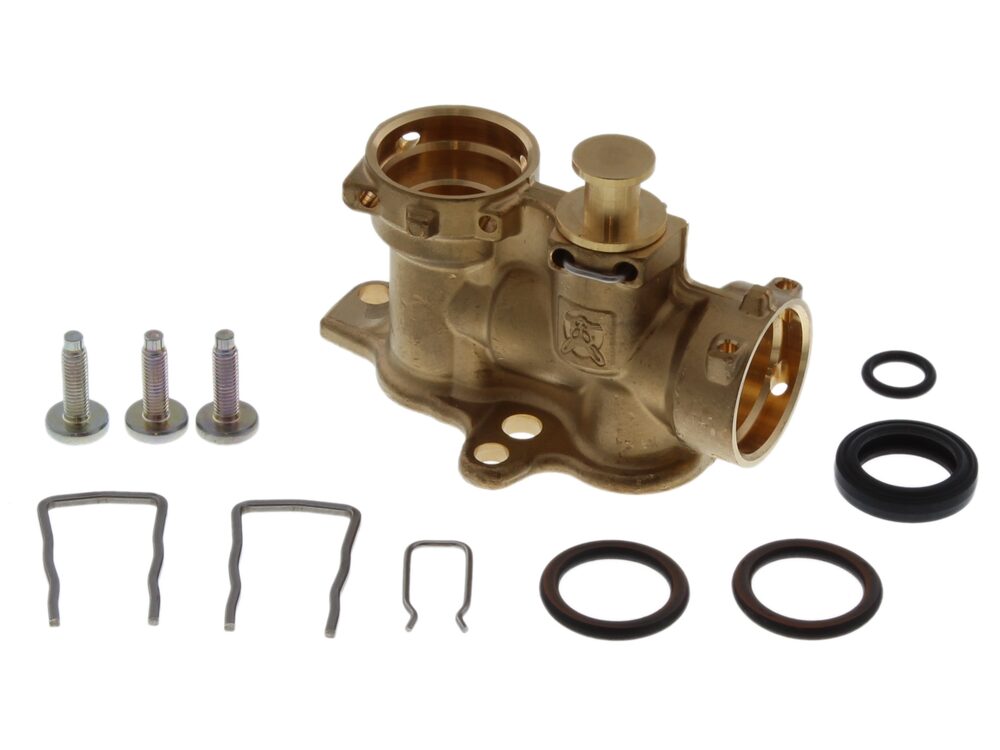

Vaillant Connection Piece 509143
Brass connection piece, part 509143, for Vaillant ecoTEC PLUS and VU-series gas boilers.
At a glance
- Also known as 1378136
Showing prices
£63.24
£52.70 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 509143 is a brass connection piece used on Vaillant gas boilers. It forms part of the hydraulic connection within the appliance, joining and sealing pipework at a threaded joint. It is listed for the ecoTEC PLUS range and the corresponding VU-series models.
Signs this part needs replacing
- Weeping or visible water at the connection joint
- Corrosion, pitting or green/white scale on the brass body
- Damaged or cross-threaded threads that will not seal
- A joint that continues to leak after being re-made
- Cracking or deformation around the connection
Before you order
- Confirm your boiler model against the fitment list above
- Check the part number against the manufacturer's parts list for your appliance
- Compare the connection size and thread form with the part being removed
- Isolate the appliance, drain down and depressurise before starting work
Compliance
| Barcode / EAN | 4024074481974 |
|---|---|
| Alternative numbers | 1378136 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-3-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-5-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-5-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-3-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-5-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-5-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 618 VU 186-3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 618 VU 186-3-5 R1 | — | — | — |
Showing 10 of 78 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
VAILLANT appliance manual — VU 126/3-5 (GC 41-044-44), VU 126/3-5 R1 (GC 41-044-44), VU 156/3-5 (GC 41-044-45), VU 156/3-5 R1 (GC 41-044-45), VU 186/3-5 (GC 41-044-46), VU 186/3-5 R1 (GC 41-044-46), VU 246/3-5 (GC 41-044-47), VU 246/3-5 R1 (GC 41-044-47), VU 306/3-5 (GC 41-044-48), VU 306/3-5 R1 (GC 41-044-48), VU 376/3-5 R1 (GC 41-044-49), ecoTEC PLUS 612 VU 126/3-5 (2005-2005) (GC 41-044-44), ecoTEC PLUS 612 VU 126/3-5 R1 (2005-2006) (GC 41-044-44), ecoTEC PLUS 615 VU 156/3-5 (2005-2005) (GC 41-044-45), ecoTEC PLUS 615 VU 156/3-5 R1 (2005-2006) (GC 41-044-45), ecoTEC PLUS 618 VU 186/3-5 (2005-2005) (GC 41-044-46), ecoTEC PLUS 618 VU 186/3-5 R1 (2005-2006) (GC 41-044-46), ecoTEC PLUS 624 VU 246/3-5 (2005-2006) (GC 41-044-47), ecoTEC PLUS 624 VU 246/3-5 R1 (2005-2006) (GC 41-044-47), ecoTEC PLUS 630 VU 306/3-5 (2005-2005) (GC 41-044-48), ecoTEC PLUS 630 VU 306/3-5 R1 (2005-2006) (GC 41-044-48), ecoTEC PLUS 637 VU 376/3-5 R1 - 2006-2006 (GC 41-044-49)
manualmanualVAILLANT appliance manual — VU 126/5-5 (GC 41-044-60), VU 126/5-5 R1 (GC 41-044-60), VU 156/5-5 (GC 41-044-61), VU 156/5-5 R1 (GC 41-044-61), VU 186/5-5 (GC 41-044-62), VU 186/5-5 R1 (GC 41-044-62), VU 246/5-5 (GC 41-044-63), VU 246/5-5 R1 (GC 41-044-63), VU 306/5-5 (GC 41-044-63), VU 306/5-5 R1 (GC 41-044-64), VU 376/5-5 (GC 41-044-65), VU 376/5-5 R1 (GC 41-044-65), ecoTEC PLUS 612 VU 126/5-5 (2012-2012) (GC 41-044-60), ecoTEC PLUS 612 VU 126/5-5 R1 (2012-2013) (GC 41-044-60), ecoTEC PLUS 615 VU 156/5-5 (2012-2012) (GC 41-044-61), ecoTEC PLUS 615 VU 156/5-5 R1 (2012-2013) (GC 41-044-61), ecoTEC PLUS 618 VU 186/5-5 (2012-2012) (GC 41-044-62), ecoTEC PLUS 618 VU 186/5-5 R1 (2012-2013) (GC 41-044-62), ecoTEC PLUS 624 VU 246/5-5 (2012-2012) (GC 41-044-63), ecoTEC PLUS 624 VU 246/5-5 R1 (2012-2013) (GC 41-044-63), ecoTEC PLUS 630 VU 306/5-5 (2012-2012) (GC 41-044-63), ecoTEC PLUS 630 VU 306/5-5 R1 (2012-2013) (GC 41-044-64), ecoTEC PLUS 637 VU 376/5-5 (2012-2012) (GC 41-044-65), ecoTEC PLUS 637 VU 376/5-5 R1 (2012-2013) (GC 41-044-65)
