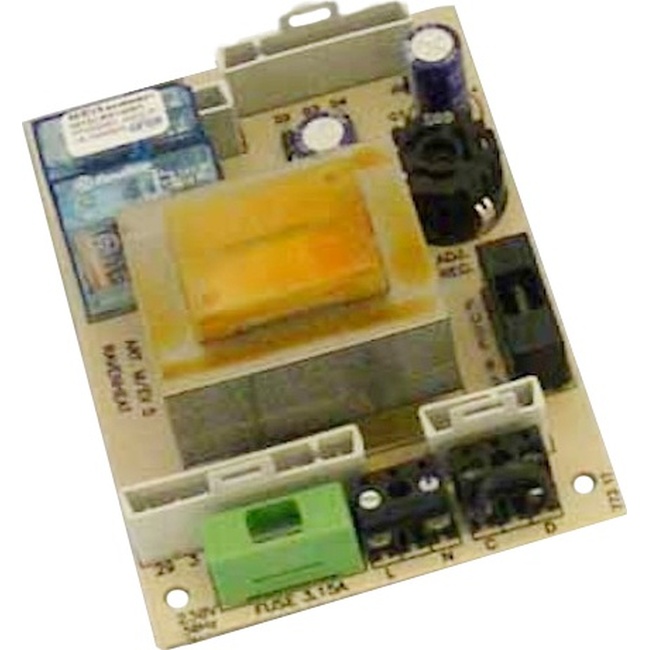

Ravenheat Printed Circuit Board 5021160
Printed circuit board for Ravenheat RSF 820/20 and RSF 820/20T gas boilers, part number 5021160.
ConditionNew
At a glance
- Also known as 1840239
The Hanicks code is specific to the selected condition. Manufacturer part no. and barcode are shared by every condition.
£186.88
£155.73 ex. VAT · VAT at 20%
- Hanicks code
- 5021160
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 5021160 is a printed circuit board used in Ravenheat RSF 820/20 series gas boilers. It is the main control board that manages boiler sequencing, ignition, and safety interlock functions. The board is supplied as a single component for replacement during fault diagnosis or repair.
Signs this part needs replacing
- Boiler fails to power up, with no display or indicator illumination
- Repeated lockouts or fault codes that clear only temporarily
- No ignition sequence despite a demand for heat and a confirmed gas supply
- Erratic operation of the fan, pump, or diverter, with no mechanical fault found
- Visible scorching, discolouration, or damaged tracks and components on the board
Before you order
- Confirm the appliance model against the rating plate — RSF 820/20 and RSF 820/20T variants use different board configurations
- Check the GC number on the rating plate against the fitment list above
- Read the part number printed on the existing board and compare it with 5021160
- Isolate the electrical supply before removing or fitting the board
Compliance
| GC number | 372-846 |
|---|---|
| Barcode / EAN | 5060022148475 |
| Alternative numbers | 1840239 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT RAVENHEAT RSF 820/20 | — | — | — | |
| RAVENHEAT RAVENHEAT RSF 820/20T | — | — | — | |
| RAVENHEAT RSF 820/20 NATURAL GAS | 47-581-01 | 47-581-01 | — | — |
| RAVENHEAT RSF 820/20T NATURAL GAS | 47-581-05 | 47-581-05 | — | — |
