Ravenheat Internal Fuse 5021103
Internal fuse, part 5021103, for Ravenheat gas boilers including the CSI and Little STAR ranges.
At a glance
- Part type: internal fuse
- Also known as 1840233
Showing prices
£1.07
£0.89 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

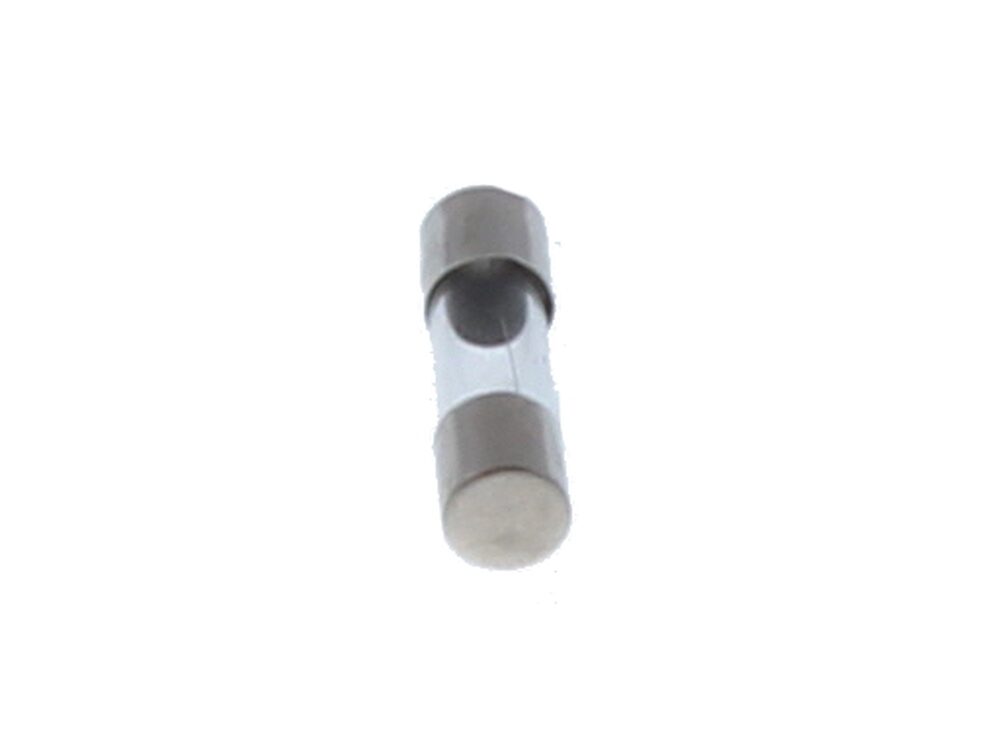

The Ravenheat internal fuse, part number 5021103, is a small protective fuse fitted inside the appliance casing of Ravenheat gas boilers. It protects the boiler's internal electrical circuit by breaking the supply if the current drawn exceeds the fuse rating. It is listed for the CSI, CSI System, HE and Little STAR appliance families.
Signs this part needs replacing
- The boiler is completely dead, with no display, fan or pump activity on a call for heat.
- The fuse has visibly blown, with a blackened glass body or a broken element.
- Power to the boiler controls is intermittent or drops out without warning.
- A replacement fuse blows again immediately after fitting.
- Signs of overheating, discolouration or arcing around the fuse holder.
Before you order
- Check your appliance model against the fitment list above.
- Confirm the fuse rating required by your boiler against the manufacturer's parts list.
- Inspect the old fuse and its holder for overheating, corrosion or arcing.
- If a replacement fuse blows straight away, trace and rectify the underlying electrical fault before fitting another.
Compliance
| GC number | 372-845 |
|---|---|
| Barcode / EAN | 5060022148444 |
| Alternative numbers | 1840233 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 120 LOW NOX LPG | 47-581-38 | 47-581-38 | — | — |
| RAVENHEAT CSI 120 LOW NOX NATURAL GAS | 47-581-37 | 47-581-37 | — | — |
| RAVENHEAT CSI 120 T LOW NOX LPG | 47-581-38 | 47-581-38 | — | — |
| RAVENHEAT CSI 120 T LOW NOX NATURAL GAS | 47-581-39 | 47-581-39 | — | — |
| RAVENHEAT CSI 150 LOW NOX LPG | — | — | — | |
| RAVENHEAT CSI 150 LOW NOX NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 150 T LOW NOX LPG | 47-581-42 | 47-581-42 | — | — |
| RAVENHEAT CSI 150 T LOW NOX NATURAL GAS | 47-581-40 | 47-581-40 | — | — |
| RAVENHEAT CSI 85 LPG | 47-581-23 | 47-581-23 | — | — |
| RAVENHEAT CSI 85 NATURAL GAS | 47-581-19 | 47-581-19 | — | — |
Showing 10 of 106 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
RAVENHEAT appliance manual — CSI 120 LOW NOX LPG (GC 47-581-38), CSI 120 LOW NOX NATURAL GAS (GC 47-581-37), CSI 120 T LOW NOX LPG (GC 47-581-38), CSI 120 T LOW NOX NATURAL GAS (GC 47-581-39), CSI 150 LOW NOX LPG, CSI 150 LOW NOX NATURAL GAS, CSI 150 T LOW NOX LPG (GC 47-581-42), CSI 150 T LOW NOX NATURAL GAS (GC 47-581-40)
manualmanualRAVENHEAT appliance manual — CSI 85 LPG (GC 47-581-23), CSI 85 NATURAL GAS (GC 47-581-19), CSI 85T LPG (GC 47-581-24), CSI 85T NATURAL GAS (GC 47-581-20)
manualmanualRAVENHEAT appliance manual — CSI SYSTEM AAA LPG, CSI SYSTEM AAA NATURAL GAS, CSI SYSTEM AAA T LPG, CSI SYSTEM AAA T NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI SYSTEM LPG (GC 47-581-03), CSI SYSTEM NATURAL GAS (GC 47-581-01), CSI SYSTEM T LPG (GC 41-581-04), CSI SYSTEM T NATURAL GAS (GC 47-581-02)
manualmanualRAVENHEAT appliance manual — HE 120N (T) LOW NOX, HE 120N LOW NOX, HE 150N (T) LOW NOX, HE 150N LOW NOX
manualmanualRAVENHEAT appliance manual — LITTLE STAR LS 100 LPG (GC 47-581-35), LITTLE STAR LS 100 NATURAL GAS (GC 47-581-33), LITTLE STAR LS 100 T LPG (GC 47-581-36), LITTLE STAR LS 100 T NATURAL GAS (GC 47-581-34), LITTLE STAR LS 80 (T) LPG (GC 47-581-32), LITTLE STAR LS 80 (T) NATURAL GAS (GC 47-581-30), LITTLE STAR LS 80 LPG (GC 47-581-31), LITTLE STAR LS 80 NATURAL GAS (GC 47-581-29), SILVER STAR 24 LPG, SILVER STAR 24 NATURAL GAS (GC 47-581-29), SILVER STAR 24T LPG, SILVER STAR 24T NATURAL GAS (GC 47-581-30), SILVER STAR 29 LPG (GC 47-581-35), SILVER STAR 29 NATURAL GAS (GC 47-581-33), SILVER STAR 29T LPG (GC 47-581-36), SILVER STAR 29T NATURAL GAS (GC 47-581-34), WHITE STAR 24 LPG, WHITE STAR 24 NATURAL GAS (GC 47-581-29), WHITE STAR 24T LPG, WHITE STAR 24T NATURAL GAS (GC 47-581-30), WHITE STAR 29 LPG (GC 47-581-35), WHITE STAR 29 NATURAL GAS (GC 47-581-33), WHITE STAR 29T LPG (GC 47-581-36), WHITE STAR 29T NATURAL GAS (GC 47-581-34)
manualmanualRAVENHEAT appliance manual — RSF 100E LPG, RSF 100E NATURAL GAS (GC 47-581-25), RSF 100E T LPG, RSF 100E T NATURAL GAS (GC 47-581-26), RSF 84E LPG, RSF 84E NATURAL GAS (GC 47-581-27), RSF 84E T LPG, RSF 84E T NATURAL GAS (GC 47-581-28)
manualmanualRAVENHEAT appliance manual — RSF 820/20T NATURAL GAS (GC 47-581-05)
manualmanualRAVENHEAT appliance manual — RSF 82E LPG, RSF 82E NATURAL GAS (GC 47-581-18), RSF 82E T LPG, RSF 82E T NATURAL GAS (GC 47-581-04)
