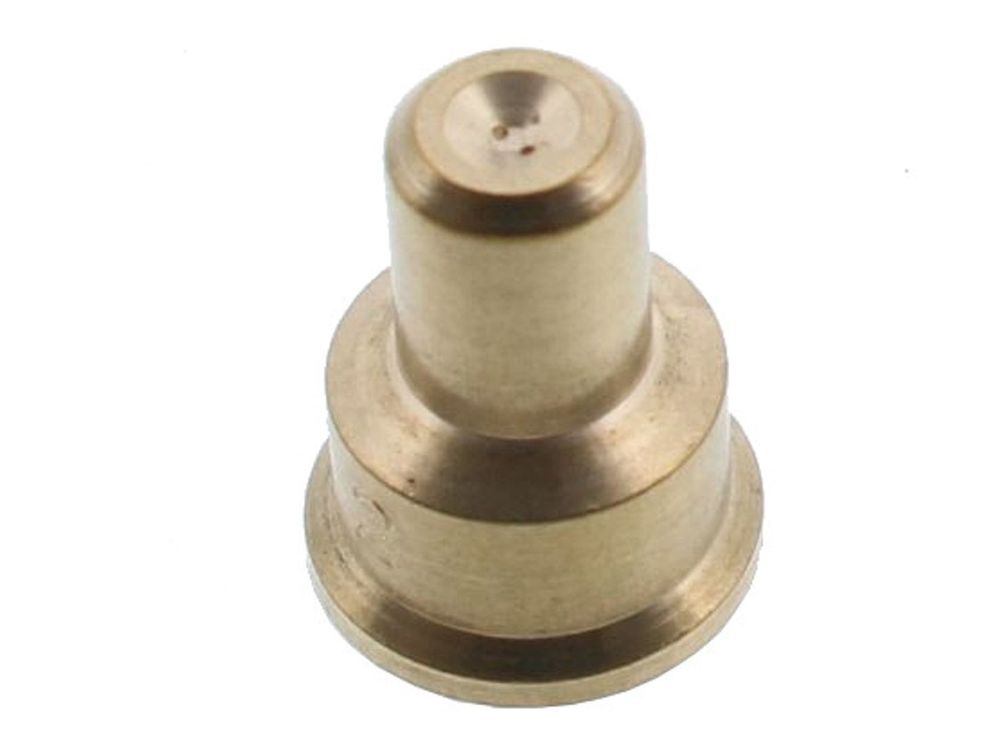

Ravenheat Pilot Injector 5012096
Pilot injector with a 0.27 mm diameter for natural gas Ravenheat boilers, part number 5012096.
At a glance
- Also known as 1840137
£3.12
£2.60 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 5012096 is a pilot injector with a 0.27 mm diameter orifice, intended for natural gas (NG) appliances. It meters the gas supply to the pilot burner, providing the small standing flame that lights the main burner. It is listed for use across a range of Ravenheat RSF and CSI boilers.
Signs this part needs replacing
- Pilot flame is weak, yellow, or lifts away from the burner
- Pilot fails to light or repeatedly extinguishes
- Boiler locks out because the pilot flame is not established
- Sooting or discolouration around the pilot burner area
- Pilot flame size changes when the injector is disturbed
Before you order
- Confirm your boiler model and GC number against the fitment list
- Check the appliance is set for natural gas, not LPG
- Verify the existing injector is marked 0.27 mm
- Isolate the gas supply and use a competent gas engineer for replacement
Compliance
| GC number | 372-856 |
|---|---|
| Barcode / EAN | 5060022148048 |
| Alternative numbers | 1840137 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 85 LPG | 47-581-23 | 47-581-23 | — | — |
| RAVENHEAT CSI 85 NATURAL GAS | 47-581-19 | 47-581-19 | — | — |
| RAVENHEAT CSI 85T LPG | 47-581-24 | 47-581-24 | — | — |
| RAVENHEAT CSI 85T NATURAL GAS | 47-581-20 | 47-581-20 | — | — |
| RAVENHEAT CSI PRIMARY A NATURAL GAS | — | — | — | |
| RAVENHEAT CSI PRIMARY LPG | 41-581-06 | 41-581-06 | — | — |
| RAVENHEAT CSI PRIMARY NATURAL GAS | 41-581-05 | 41-581-05 | — | — |
| RAVENHEAT CSI PRIMARY WITH TIMER LPG | — | — | — | |
| RAVENHEAT CSI PRIMARY WITH TIMER NATURAL GAS | — | — | — | |
| RAVENHEAT CSI SYSTEM AAA LPG | — | — | — |
Showing 10 of 56 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CSI 85 LPG (GC 47-581-23), CSI 85 NATURAL GAS (GC 47-581-19), CSI 85T LPG (GC 47-581-24), CSI 85T NATURAL GAS (GC 47-581-20)
manualmanualRAVENHEAT appliance manual — CSI PRIMARY LPG (GC 41-581-06), CSI PRIMARY NATURAL GAS (GC 41-581-05), CSI PRIMARY WITH TIMER LPG, CSI PRIMARY WITH TIMER NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI SYSTEM AAA LPG, CSI SYSTEM AAA NATURAL GAS, CSI SYSTEM AAA T LPG, CSI SYSTEM AAA T NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI SYSTEM LPG (GC 47-581-03), CSI SYSTEM NATURAL GAS (GC 47-581-01), CSI SYSTEM T LPG (GC 41-581-04), CSI SYSTEM T NATURAL GAS (GC 47-581-02)
manualmanualRAVENHEAT appliance manual — RSF 100E LPG, RSF 100E NATURAL GAS (GC 47-581-25), RSF 100E T LPG, RSF 100E T NATURAL GAS (GC 47-581-26), RSF 84E LPG, RSF 84E NATURAL GAS (GC 47-581-27), RSF 84E T LPG, RSF 84E T NATURAL GAS (GC 47-581-28)
manualmanualRAVENHEAT appliance manual — RSF 820/20T NATURAL GAS (GC 47-581-05)
manualmanualRAVENHEAT appliance manual — RSF 82E LPG, RSF 82E NATURAL GAS (GC 47-581-18), RSF 82E T LPG, RSF 82E T NATURAL GAS (GC 47-581-04)
manualNo technical questions yet for this part.
