Ravenheat

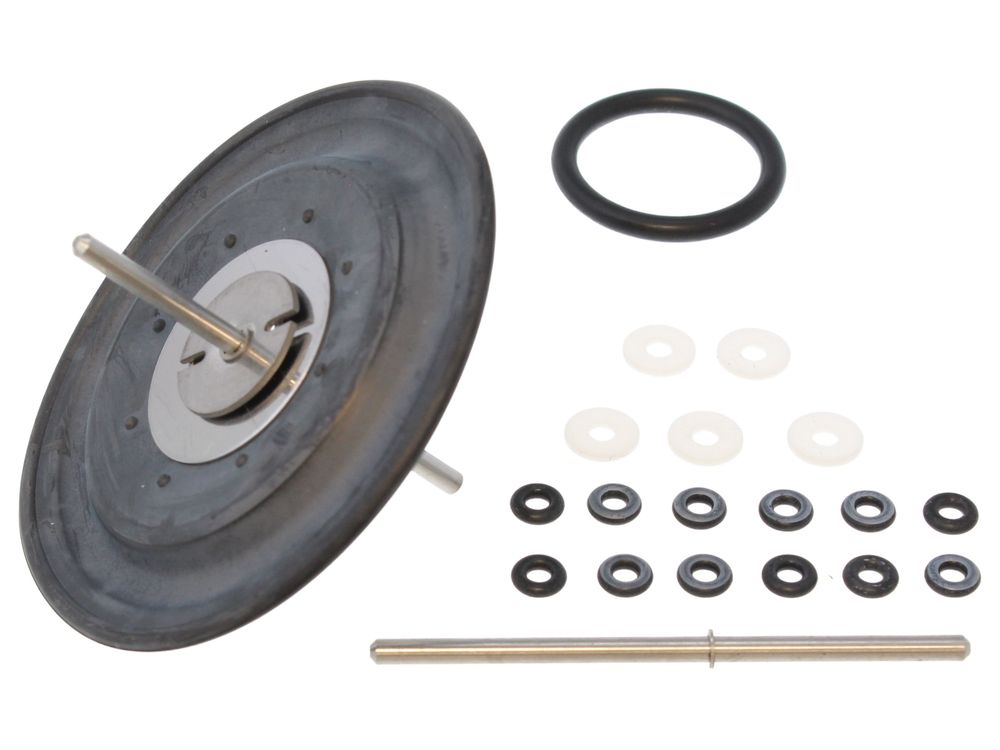

Ravenheat 3-Way Diverter Valve Diaphragm Kit 5012051
Diaphragm kit for the 3-way diverter valve used in Ravenheat RSF, CSI and HE series gas boilers.
At a glance
- Also known as 1840101, N1183
£53.93
£44.94 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat 5012051 is a diaphragm kit for the 3-way diverter valve used in Ravenheat gas boilers. The diaphragm sits inside the diverter valve and moves the valve to switch the boiler between central heating and domestic hot water. It is a service part for the RSF, CSI and HE appliance families.
Signs this part needs replacing
- No hot water or intermittent hot water when a tap is opened
- Diverter valve fails to switch between central heating and hot water
- Radiators heat up when only hot water is demanded
- Reduced or fluctuating domestic hot water flow
- Water weeping from the diverter valve body or diaphragm housing
Before you order
- Confirm your boiler model and GC number against the fitment list
- Check the diverter valve uses a diaphragm kit rather than requiring a complete valve assembly
- Isolate the boiler and depressurise the system before fitting
- Inspect the valve body for wear or damage that a diaphragm kit alone will not resolve
Compliance
| GC number | 371-257 |
|---|---|
| Barcode / EAN | 5060022147904 |
| Alternative numbers | 1840101, N1183 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CSI 85 LPG | 47-581-23 | 47-581-23 | — | — |
| RAVENHEAT CSI 85 NATURAL GAS | 47-581-19 | 47-581-19 | — | — |
| RAVENHEAT CSI 85A LPG | — | — | — | |
| RAVENHEAT CSI 85A NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 85A T LPG | — | — | — | |
| RAVENHEAT CSI 85A T NATURAL GAS | — | — | — | |
| RAVENHEAT CSI 85B LPG | — | — | — | |
| RAVENHEAT CSI 85B NATURAL GAS | 47-581-45 | 47-581-45 | — | — |
| RAVENHEAT CSI 85B T LPG | — | — | — | |
| RAVENHEAT CSI 85B T NATURAL GAS | — | — | — |
Showing 10 of 36 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CSI 85 LPG (GC 47-581-23), CSI 85 NATURAL GAS (GC 47-581-19), CSI 85T LPG (GC 47-581-24), CSI 85T NATURAL GAS (GC 47-581-20)
manualmanualRAVENHEAT appliance manual — CSI 85A LPG, CSI 85A NATURAL GAS, CSI 85A T LPG, CSI 85A T NATURAL GAS
manualmanualRAVENHEAT appliance manual — CSI 85B LPG, CSI 85B NATURAL GAS (GC 47-581-45), CSI 85B T LPG, CSI 85B T NATURAL GAS
manualmanualRAVENHEAT appliance manual — RSF 820/20T NATURAL GAS (GC 47-581-05)
manualmanualRAVENHEAT appliance manual — RSF 82E LPG, RSF 82E NATURAL GAS (GC 47-581-18), RSF 82E T LPG, RSF 82E T NATURAL GAS (GC 47-581-04)
manualNo technical questions yet for this part.
