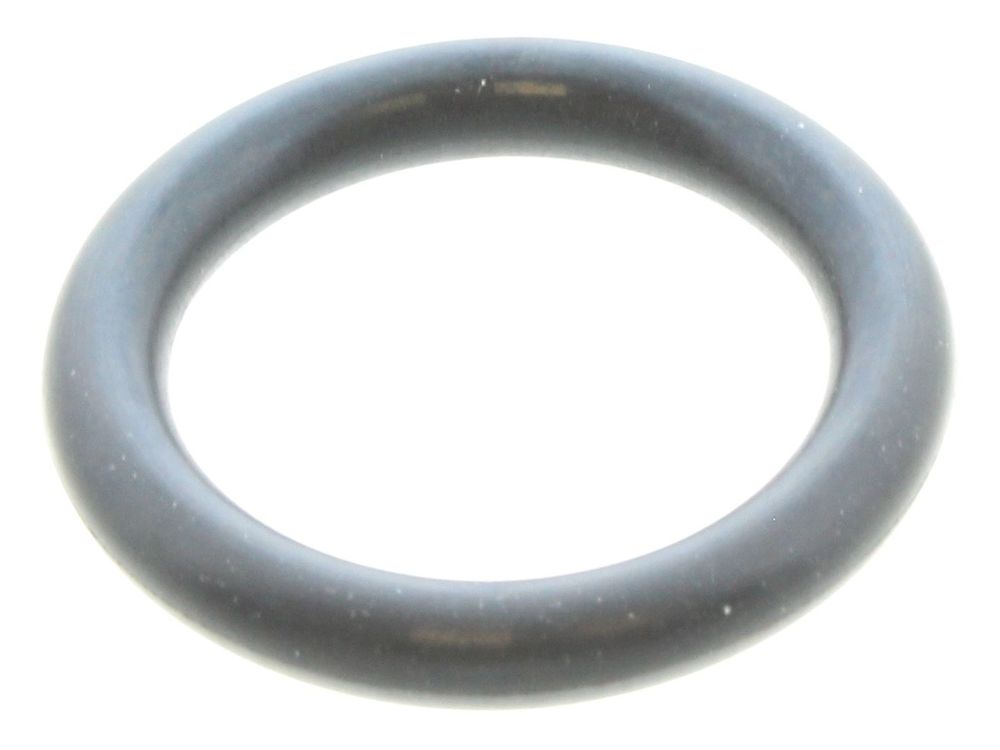

Halstead O-Ring DHW Plate Heat Exchanger 500600
O-ring seal for the domestic hot water plate heat exchanger on Halstead Ace, Finest and Wickes combi boilers.
At a glance
- Also known as 1292426
£2.23
£1.86 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is the O-ring seal used on the domestic hot water plate heat exchanger fitted to Halstead combi boilers. It seals the joint between the plate heat exchanger and the DHW circuit, preventing water loss at the connection. The part is manufactured by Halstead and carries the part number 500600.
Signs this part needs replacing
- Water weeping or dripping from the plate heat exchanger connection
- Staining, corrosion or scale deposits around the DHW plate heat exchanger joint
- The O-ring is hardened, flattened, cracked or swollen on inspection
- Water loss or pressure drop traced to the plate heat exchanger seal
- The O-ring has been disturbed during plate heat exchanger removal or cleaning
Before you order
- Confirm the boiler model and, where applicable, the serial number falls within the ranges shown in the Fits list
- Check the O-ring is the correct seal for the plate heat exchanger joint and not for another connection on the appliance
- Inspect the plate heat exchanger faces for scale or damage before refitting, as a worn face will not seal reliably
- Confirm how many O-rings the job requires before ordering
Compliance
| GC number | E23-632 |
|---|---|
| Alternative numbers | 1292426 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HALSTEAD ACE FROM AC100000131 | 47-333-10 | 47-333-10 | — | — |
| HALSTEAD ACE HIGH | 47-333-16 | 47-333-16 | — | — |
| HALSTEAD ACE TO AC100000131 | 47-333-15 | 47-333-15 | — | — |
| HALSTEAD FINEST FROM FGX500000131 | 47-333-12 | 47-333-12 | — | — |
| HALSTEAD FINEST GOLD FROM FGX500000131 | 47-333-13 | 47-333-13 | — | — |
| HALSTEAD FINEST GOLD UP TO FG500000131 | 47-333-07 | 47-333-07 | — | — |
| HALSTEAD FINEST PLATINUM | 47-260-02 | 47-260-02 | — | — |
| HALSTEAD FINEST UP TO FG500000131 | 47-333-06 | 47-333-06 | — | — |
| HALSTEAD WICKES 90 | 47-333-09 | 47-333-09 | — | — |
| HALSTEAD WICKES COMBI 102 | 47-333-18 | 47-333-18 | — | — |
Showing 10 of 11 compatible appliances.
