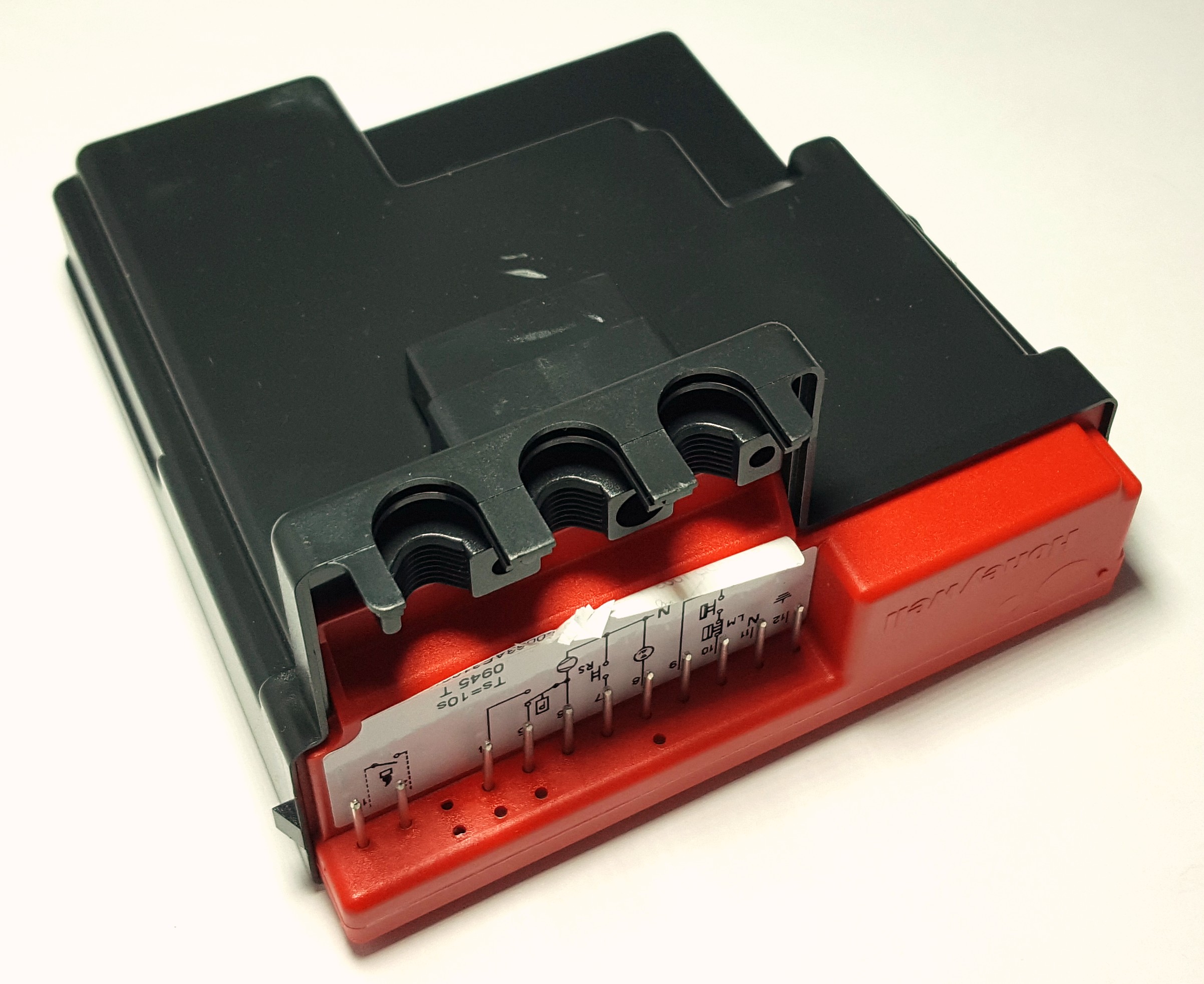

Halstead Ignition PCB S456 DD1OO3 CVI 500581
At a glance
- Part type: PCB printed circuit board / control box
- Also known as 1292354
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£238.54
£198.78 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Halstead 500581 is an ignition printed circuit board supplied as a control box assembly for Halstead gas boilers. It carries the ignition and flame-supervision circuitry, generating the spark at the electrode and monitoring the flame signal so the appliance can prove ignition and move through its start sequence. It is the board used across the Quattro and Wickes 2000 appliance families.
Signs this part needs replacing
- The boiler goes to lockout on a call for heat, with no spark at the electrode.
- Ignition is intermittent — the appliance fires on some attempts and fails on others.
- The fan and pump run but the burner never lights, and the fault repeats after resetting.
- Visible damage on the board: scorching, discoloured tracks, leaking capacitors or a blown fuse.
- The appliance shows no response at all to a demand for heat or hot water.
Before you order
- Confirm the GC number on the appliance data badge against the compatibility list — the same appliance name can carry more than one board variant.
- Check the board marking on the existing PCB (S456 DD1OO3 CVI) matches before ordering.
- Note the alternative number 1292354, which may appear on the old board or its packaging.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | PCB Printed Circuit Board/Control Boxes |
|---|
Compliance
| Manufacturer part number (MPN) | 500581 |
|---|---|
| GC number | E01-325 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 7625879433488, HALSTEAD500581, HALSTEAD500581, HALSTEAD500581, HALSTEAD500581, 1292354 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HALSTEAD QUATTRO | 47-333-01 | 47-333-01 | — | — |
| HALSTEAD QUATTRO GOLD | 47-333-04 | 47-333-04 | — | — |
| HALSTEAD WICKES 2000 | 47-333-03 | 47-333-03 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
