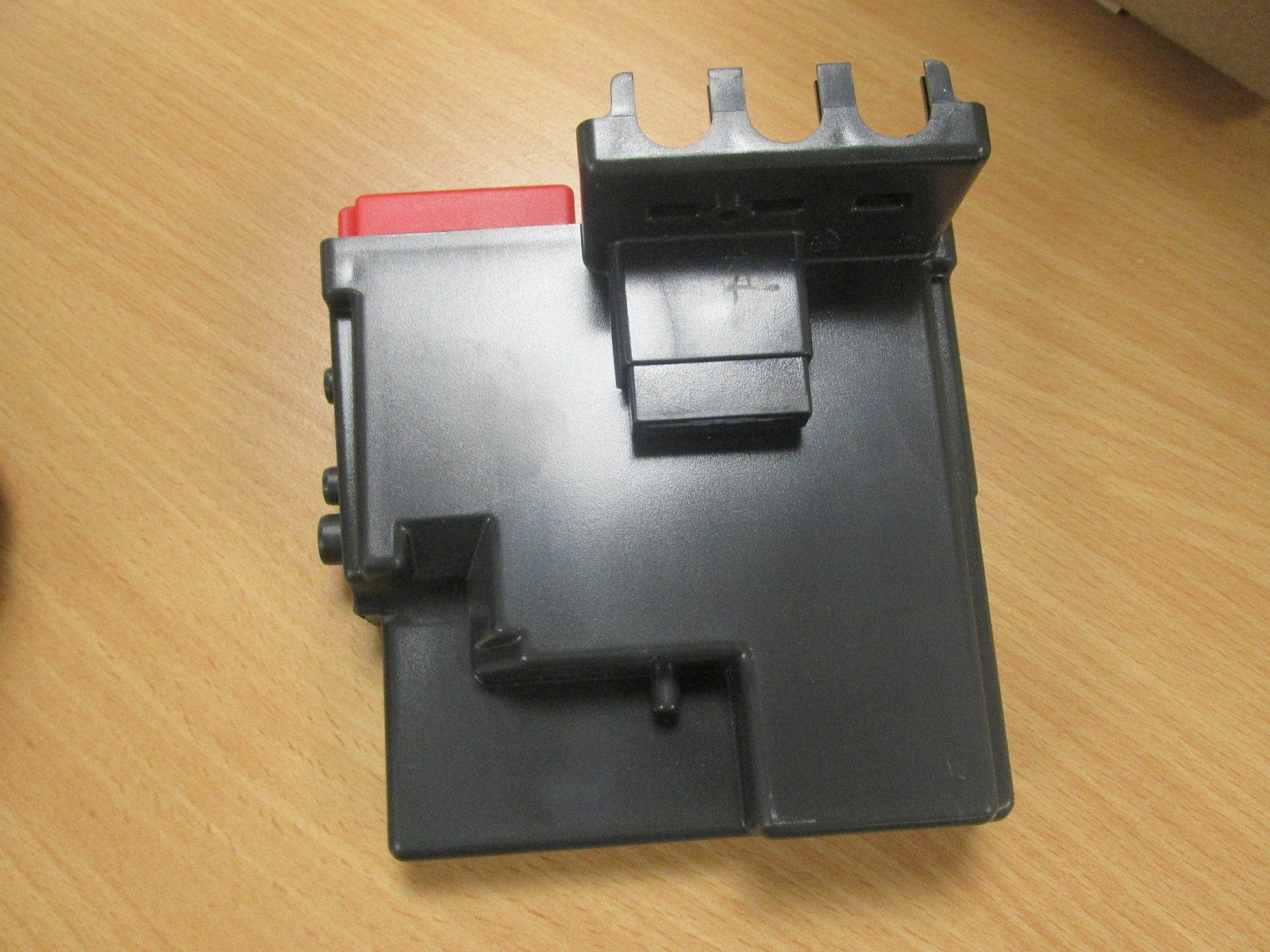

Halstead Printed Circuit Board 500570
At a glance
- Part type: Printed circuit board
- Also known as 1292322, N6482
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Showing prices
£139.50
£116.25 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Halstead 500570 is a printed circuit board (PCB) manufactured by Halstead for use in its Best range of appliances. It is the main control board, handling the appliance's operating sequence and the electrical signals that drive the fan, gas valve, pump and temperature sensing circuits. The board is supplied as a single unit and is identified by part number 500570.
Signs this part needs replacing
- The appliance fails to respond to a demand for heat or hot water, with no ignition sequence starting.
- Repeated lockouts or fault codes that clear only after a power reset and then return.
- Erratic behaviour from the fan, pump or gas valve, such as components running when they should be off or not running when called.
- No display, no status indication or a board that is visibly scorched, discoloured or has failed tracks and components.
- Intermittent operation that changes with temperature or vibration around the control panel.
Before you order
- Check the appliance model and GC number against the compatibility list, as the Best 30 and Best 40 variants use different board revisions.
- Confirm the numbers on the existing board match 500570, 1292322 or N6482 before ordering.
- Inspect the wiring harness, plugs and earth connections at the same time, as damaged connectors can mimic a board fault.
- This board is not classified as a gas-carrying component, but any work inside the appliance casing should be carried out by a competent person.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed circuit board |
|---|
Compliance
| Manufacturer part number (MPN) | 500570 |
|---|---|
| GC number | 379-973 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Circuit Assemblies/Integrated Circuits |
| Alternative numbers | 1292322, N6482 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HALSTEAD BEST 30 db FROM DBX750000131 | 41-333-50 | 41-333-50 | — | — |
| HALSTEAD BEST 30 db TO DB750000131 | 41-333-74 | 41-333-74 | — | — |
| HALSTEAD BEST 40 db FROM DBX750000131 | 41-333-51 | 41-333-51 | — | — |
| HALSTEAD BEST 40 db LPG | 41-333-79 | 41-333-79 | — | — |
| HALSTEAD BEST 40 db TO DB750000131 | 41-333-75 | 41-333-75 | — | — |
| HALSTEAD BEST 50 db FROM DBX750000131 | 41-333-52 | 41-333-52 | — | — |
| HALSTEAD BEST 50 db TO DB750000131 | 41-333-76 | 41-333-76 | — | — |
| HALSTEAD BEST 60 db FROM DBX750000131 | 41-333-53 | 41-333-53 | — | — |
| HALSTEAD BEST 60 db LPG | 41-333-80 | 41-333-80 | — | — |
| HALSTEAD BEST 60 db TO DB750000131 | 41-333-77 | 41-333-77 | — | — |
Showing 10 of 18 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
HALSTEAD appliance manual — BEST 30 db FROM DBX750000131 (GC 41-333-50)
manualmanualHALSTEAD appliance manual — BEST 30 db TO DB750000131 (GC 41-333-74)
manualmanualHALSTEAD appliance manual — BEST 40 db FROM DBX750000131 (GC 41-333-51)
manualmanualHALSTEAD appliance manual — BEST 40 db LPG (GC 41-333-79)
manualmanualHALSTEAD appliance manual — BEST 40 db TO DB750000131 (GC 41-333-75)
manualmanualHALSTEAD appliance manual — BEST 50 db FROM DBX750000131 (GC 41-333-52)
manualmanualHALSTEAD appliance manual — BEST 50 db TO DB750000131 (GC 41-333-76)
manualmanualHALSTEAD appliance manual — BEST 60 db FROM DBX750000131 (GC 41-333-53)
manualmanualHALSTEAD appliance manual — BEST 60 db LPG (GC 41-333-80)
manualmanualHALSTEAD appliance manual — BEST 60 db TO DB750000131 (GC 41-333-77)
manualmanualHALSTEAD appliance manual — BEST 70 db FROM DBX750000131 (GC 41-333-78), BEST 80 db (GC 41-333-56)
