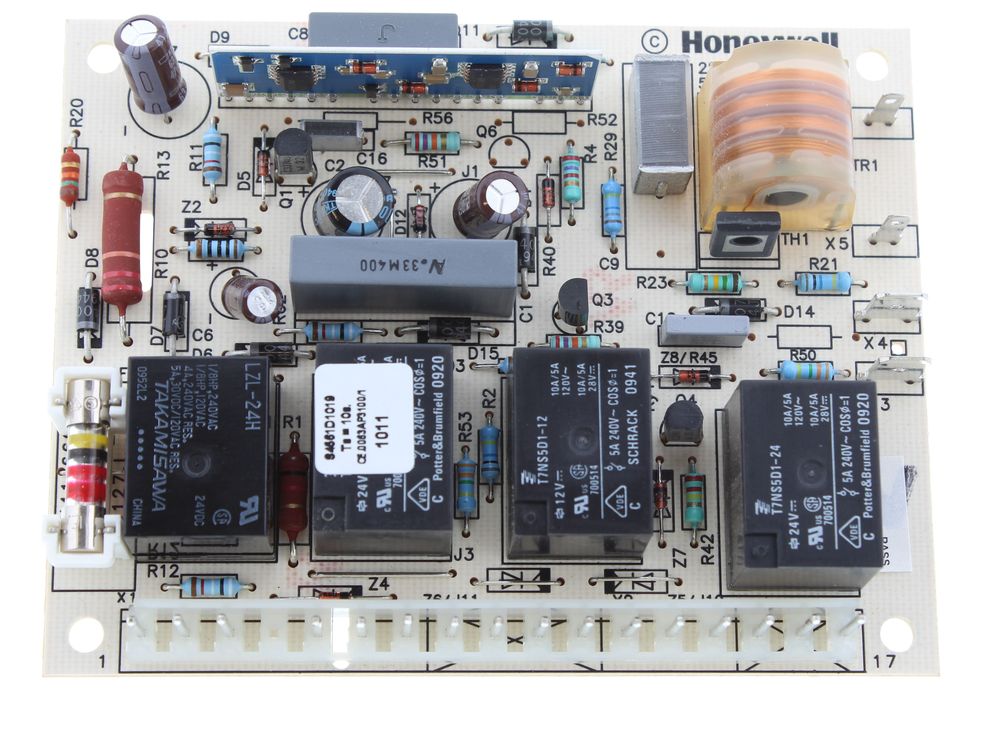

Halstead Ignition Circuit Board 500562
At a glance
- Part type: PCB printed circuit board / control box
- Appliance family: Halstead Quattro and Wickes 2000 series
- Also known as 1292302, N1258-1
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£316.74
£263.95 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Halstead ignition circuit board is the control centre of the appliance. It continuously monitors every process running through the boiler's switches, thermostats and sensors, and it enforces the safety parameters so that the appliance shuts down if any internal reading indicates a fault. As the printed circuit board carries the appliance's sequencing and safety logic, it is effectively the brains of the boiler.
Signs this part needs replacing
- The boiler fails to ignite or drops into lockout shortly after a call for heat
- No response from the appliance when the thermostat or programmer calls for heat
- Intermittent firing, with the boiler running for short periods and then stopping
- Repeated fault codes or a lockout that clears only after a power reset
- Visible damage, scorching or tracking on the board itself
Before you order
- Confirm the GC number on the appliance data badge matches one of the numbers listed for this board
- Check the existing board against the alternative part numbers below before ordering
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | PCB Printed Circuit Board/Control Boxes |
|---|
Compliance
| Manufacturer part number (MPN) | 500562 |
|---|---|
| GC number | 379-262 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Circuit Assemblies/Integrated Circuits |
| Alternative numbers | 1292302, N1258-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HALSTEAD QUATTRO | 47-333-01 | 47-333-01 | — | — |
| HALSTEAD QUATTRO GOLD | 47-333-04 | 47-333-04 | — | — |
| HALSTEAD WICKES 2000 | 47-333-03 | 47-333-03 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
