Main Combustion Chamber Side Insulation 5000533
Side insulation panel for the combustion chamber, RCF construction, part 5000533 for Main and Potterton gas boilers.
At a glance
- Part type: side insulation panel, combustion chamber
- Also known as 1123228
£10.96
£9.13 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

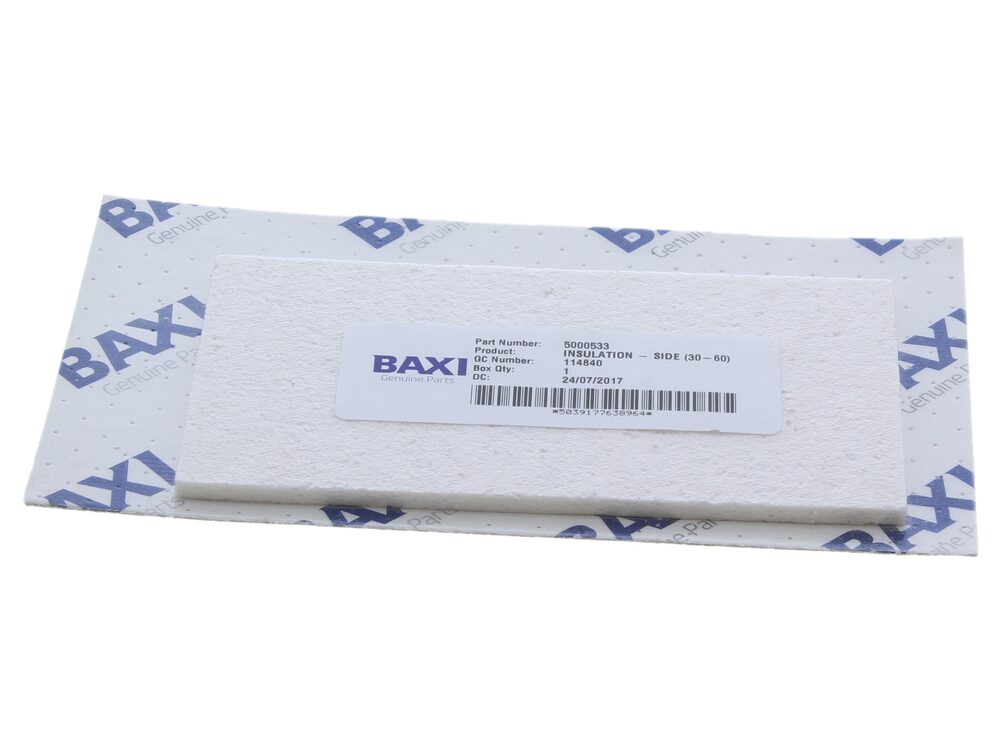

The Main 5000533 is a side insulation panel for the combustion chamber, manufactured from refractory ceramic fibre (RCF). It lines the side of the combustion chamber, protecting the surrounding casing from heat and helping to retain heat within the combustion area. It is used across a number of Main and Potterton gas boiler models.
Signs this part needs replacing
- Visible cracking, crumbling or flaking of the insulation surface
- Discolouration or blackening caused by heat damage
- Insulation material breaking away and falling into the combustion chamber
- Heat damage or scorching to the surrounding casing
- Damage found during a service or burner strip-down
Before you order
- Confirm your boiler model against the fit list above
- Check the GC number on the appliance data badge matches your model
- Confirm which side of the combustion chamber the panel is required for
- Check whether more than one insulation panel is needed for the chamber
Compliance
| GC number | 114-840 |
|---|---|
| Barcode / EAN | 5039177638964 |
| Alternative numbers | 1123228 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| MAIN MAIN HEATING ONLY 12 HE | 41-474-02 | 41-474-02 | — | — |
| MAIN MAIN HEATING ONLY 15 HE | 41-474-03 | 41-474-03 | — | — |
| MAIN MAIN HEATING ONLY 9 HE | 41-474-01 | 41-474-01 | — | — |
| POTTERTON PERFORMA HE 12 SL | 41-592-06 | 41-592-06 | — | — |
| POTTERTON PERFORMA HE 15 SL | 41-592-07 | 41-592-07 | — | — |
| POTTERTON PERFORMA HE 9 SL | 41-592-05 | 41-592-05 | — | — |
| POTTERTON SUPRIMA 30 HE | 41-075-35 | 41-075-35 | — | — |
| POTTERTON SUPRIMA 30 L | 41-590-42 | 41-590-42 | — | — |
| POTTERTON SUPRIMA 40 HE | 41-075-36 | 41-075-36 | — | — |
| POTTERTON SUPRIMA 40 L | 41-590-43 | 41-590-43 | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
MAIN appliance manual — MAIN HEATING ONLY 12 HE (GC 41-474-02), MAIN HEATING ONLY 15 HE (GC 41-474-03), MAIN HEATING ONLY 9 HE (GC 41-474-01)
manualmanualPOTTERTON appliance manual — PERFORMA HE 12 SL (GC 41-592-06), PERFORMA HE 15 SL (GC 41-592-07), PERFORMA HE 9 SL (GC 41-592-05)
manualmanualPOTTERTON appliance manual — SUPRIMA 30 HE (GC 41-075-35), SUPRIMA 40 HE (GC 41-075-36), SUPRIMA 50 HE (GC 41-075-37)
manualmanualPOTTERTON appliance manual — SUPRIMA 30 L (GC 41-590-42), SUPRIMA 40 L (GC 41-590-43), SUPRIMA 50 L (GC 41-590-44)
