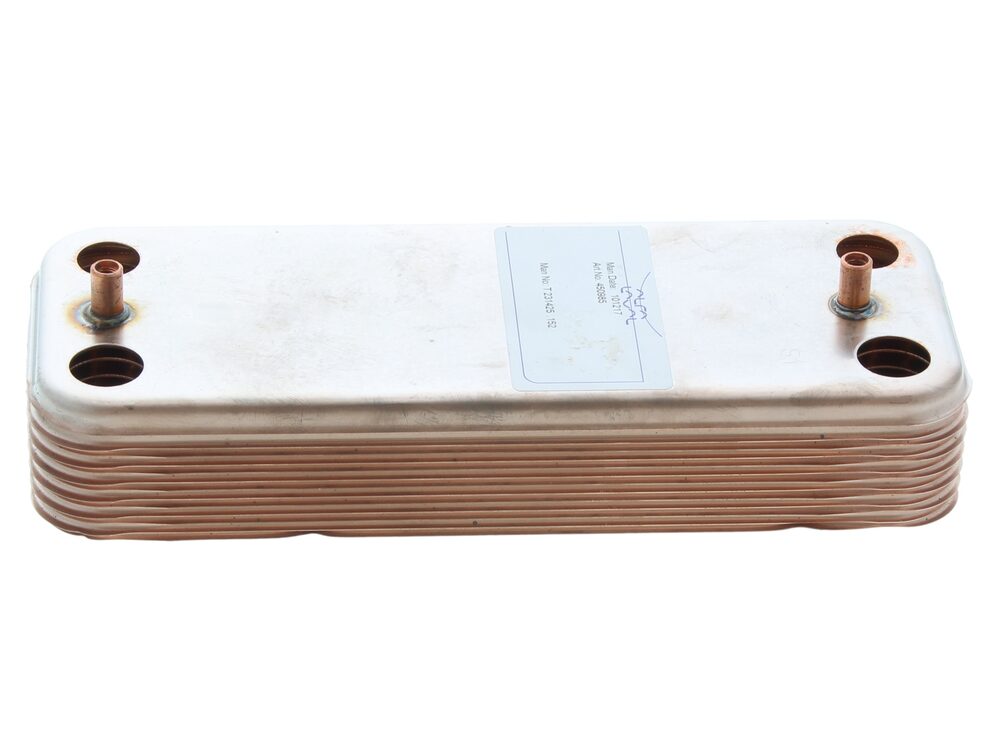

Halstead Plate Heat Exchanger 450985
Halstead 450985 plate heat exchanger for ACE HIGH, Finest and Wickes combi gas boilers.
At a glance
- Part type: plate heat exchanger
- Also known as 1292154
£214.21
£178.51 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Halstead 450985 is a plate heat exchanger used in Halstead gas boilers. It transfers heat between the primary and domestic hot water circuits, with the two water paths kept separate by the plate stack and its edge seals. It is a serviceable component, so it can be removed and replaced when performance drops or the unit leaks.
Signs this part needs replacing
- Domestic hot water running cooler than the set temperature, or fluctuating between hot and cold
- Reduced hot water flow rate at the taps compared with previous performance
- Water weeping from the plate stack or around the edge gaskets
- Scale or debris blocking the narrow waterways, often after work on the mains supply
- Repeated boiler lockouts or temperature faults linked to poor heat transfer
Before you order
- Confirm the boiler model against the fit list above
- Check the serial number prefix on the appliance data badge, as Finest and Finest GOLD models are split by FROM and UP TO ranges
- Compare the part number on the existing heat exchanger with 450985
- Inspect the connecting pipework and seals for damage before refitting
Compliance
| GC number | E23-604 |
|---|---|
| Alternative numbers | 1292154 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HALSTEAD ACE HIGH | 47-333-16 | 47-333-16 | — | — |
| HALSTEAD FINEST FROM FGX500000131 | 47-333-12 | 47-333-12 | — | — |
| HALSTEAD FINEST GOLD FROM FGX500000131 | 47-333-13 | 47-333-13 | — | — |
| HALSTEAD FINEST GOLD UP TO FG500000131 | 47-333-07 | 47-333-07 | — | — |
| HALSTEAD FINEST UP TO FG500000131 | 47-333-06 | 47-333-06 | — | — |
| HALSTEAD WICKES 90 | 47-333-09 | 47-333-09 | — | — |
| HALSTEAD WICKES COMBI 102 | 47-333-18 | 47-333-18 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
HALSTEAD appliance manual — ACE HIGH (GC 47-333-16)
manualmanualHALSTEAD appliance manual — FINEST FROM FGX500000131 (GC 47-333-12)
manualmanualHALSTEAD appliance manual — FINEST GOLD FROM FGX500000131 (GC 47-333-13)
manualmanualHALSTEAD appliance manual — FINEST GOLD UP TO FG500000131 (GC 47-333-07)
manualmanualHALSTEAD appliance manual — FINEST UP TO FG500000131 (GC 47-333-06)
manualNo technical questions yet for this part.
