Main Overheat Thermostat 404517
Overheat thermostat for Main and Potterton gas boilers, Thermodisc 36TXE31/14084.
At a glance
- Also known as 1122522
Showing prices
£19.46
£16.22 ex. VAT · VAT at 20%
Available to order · 1 working day
Available to order · 1 working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

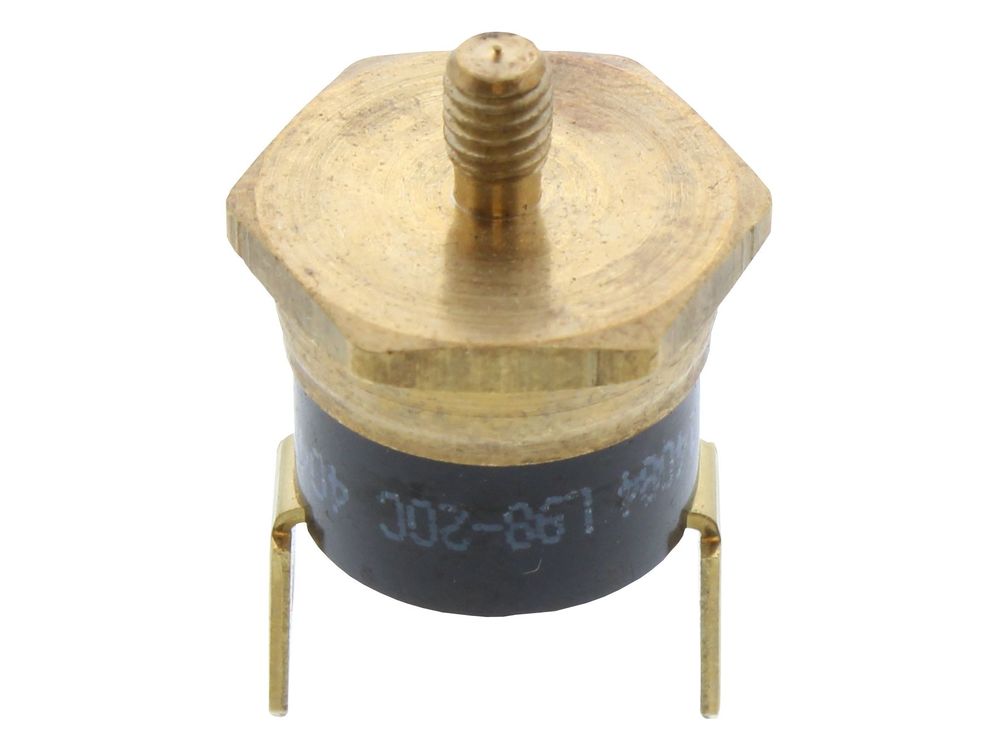

The Main 404517 is an overheat thermostat supplied as a Thermodisc 36TXE31/14084. It monitors boiler temperature and interrupts the burner circuit if the appliance overheats, protecting the heat exchanger and casing. It is used across Main HE and Potterton Kingfisher MF, Suprima and Performa HE gas boiler families.
Signs this part needs replacing
- Boiler locks out and requires a manual reset before it will fire again
- Repeated overheat trips shortly after the boiler reaches temperature
- Burner cutting out before the appliance reaches its set flow temperature
- No heating or hot water because the overheat cut-out stays open
- Boiler firing briefly then shutting down on the overheat circuit
Before you order
- Confirm your appliance model against the fit list above
- Check the GC number on the boiler data badge matches your model
- Compare the thermostat reference on the existing part with 36TXE31/14084
- Isolate the electrical supply before removing or fitting the thermostat
Compliance
| GC number | 173-130 |
|---|---|
| Barcode / EAN | 5039177634249 |
| Alternative numbers | 1122522 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| MAIN MAIN HEATING ONLY 12 HE | 41-474-02 | 41-474-02 | — | — |
| MAIN MAIN HEATING ONLY 15 HE | 41-474-03 | 41-474-03 | — | — |
| MAIN MAIN HEATING ONLY 18 HE | 41-474-04 | 41-474-04 | — | — |
| MAIN MAIN HEATING ONLY 24 HE | 41-474-05 | 41-474-05 | — | — |
| MAIN MAIN HEATING ONLY 9 HE | 41-474-01 | 41-474-01 | — | — |
| POTTERTON KINGFISHER MF CF100 | 41-589-12 | 41-589-12 | — | — |
| POTTERTON KINGFISHER MF CF40 | 41-589-02 | 41-589-02 | — | — |
| POTTERTON KINGFISHER MF CF50 | 41-589-03 | 41-589-03 | — | — |
| POTTERTON KINGFISHER MF CF60 | 41-589-04 | 41-589-04 | — | — |
| POTTERTON KINGFISHER MF CF70 | 41-589-09 | 41-589-09 | — | — |
Showing 10 of 61 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
MAIN appliance manual — MAIN HEATING ONLY 12 HE (GC 41-474-02), MAIN HEATING ONLY 15 HE (GC 41-474-03), MAIN HEATING ONLY 18 HE (GC 41-474-04), MAIN HEATING ONLY 24 HE (GC 41-474-05), MAIN HEATING ONLY 9 HE (GC 41-474-01)
manualmanualPOTTERTON appliance manual — KINGFISHER MF CF100 (GC 41-589-12), KINGFISHER MF CF40 (GC 41-589-02), KINGFISHER MF CF50 (GC 41-589-03), KINGFISHER MF CF60 (GC 41-589-04), KINGFISHER MF CF70 (GC 41-589-09), KINGFISHER MF CF80 (GC 41-589-10), KINGFISHER MF CF90 (GC 41-589-11)
manualmanualPOTTERTON appliance manual — KINGFISHER MF CFL100 (GC 41-590-34), KINGFISHER MF CFL40 (GC 41-590-27), KINGFISHER MF CFL50 (GC 41-590-28), KINGFISHER MF CFL60 (GC 41-590-29), KINGFISHER MF CFL70 (GC 41-590-30), KINGFISHER MF CFL80 (GC 41-590-31), KINGFISHER MF CFL90 (GC 41-590-32), KINGFISHER MF RSL100 (GC 41-590-41), KINGFISHER MF RSL50 (GC 41-590-36), KINGFISHER MF RSL60 (GC 41-590-37), KINGFISHER MF RSL70 (GC 41-590-38), KINGFISHER MF RSL80 (GC 41-590-39), KINGFISHER MF RSL90 (GC 41-590-40)
manualmanualPOTTERTON appliance manual — KINGFISHER MF RS100 (GC 41-589-01), KINGFISHER MF RS40 (GC 41-593-88), KINGFISHER MF RS50 (GC 41-393-95), KINGFISHER MF RS60 (GC 41-393-96), KINGFISHER MF RS70 (GC 41-393-97), KINGFISHER MF RS80 (GC 41-393-98), KINGFISHER MF RS90 (GC 41-393-99)
manualmanualPOTTERTON appliance manual — PERFORMA HE 12 SL (GC 41-592-06), PERFORMA HE 15 SL (GC 41-592-07), PERFORMA HE 18 SL (GC 41-592-08), PERFORMA HE 21 SL (GC 41-592-09), PERFORMA HE 24 SL (GC 41-592-10), PERFORMA HE 9 SL (GC 41-592-05)
manualmanualPOTTERTON appliance manual — SUPRIMA 100 (GC 41-607-82)
manualmanualPOTTERTON appliance manual — SUPRIMA 100 L (GC 41-590-48), SUPRIMA 120 L (GC 41-590-49), SUPRIMA 30 L (GC 41-590-42), SUPRIMA 40 L (GC 41-590-43), SUPRIMA 50 L (GC 41-590-44), SUPRIMA 60 L (GC 41-590-45), SUPRIMA 70 L (GC 41-590-46), SUPRIMA 80 L (GC 41-590-47)
manualmanualPOTTERTON appliance manual — SUPRIMA 30 (GC 41-607-75), SUPRIMA 40 (GC 41-607-76), SUPRIMA 50 (GC 41-607-77), SUPRIMA 60 (GC 41-607-78), SUPRIMA 70 (GC 41-607-79), SUPRIMA 80 (GC 41-607-80)
manualmanualPOTTERTON appliance manual — SUPRIMA 30 HE (GC 41-075-35), SUPRIMA 40 HE (GC 41-075-36), SUPRIMA 50 HE (GC 41-075-37), SUPRIMA 60 HE (GC 41-075-38), SUPRIMA 70 HE (GC 41-075-39), SUPRIMA 80 HE (GC 41-075-40)
manualNo technical questions yet for this part.
