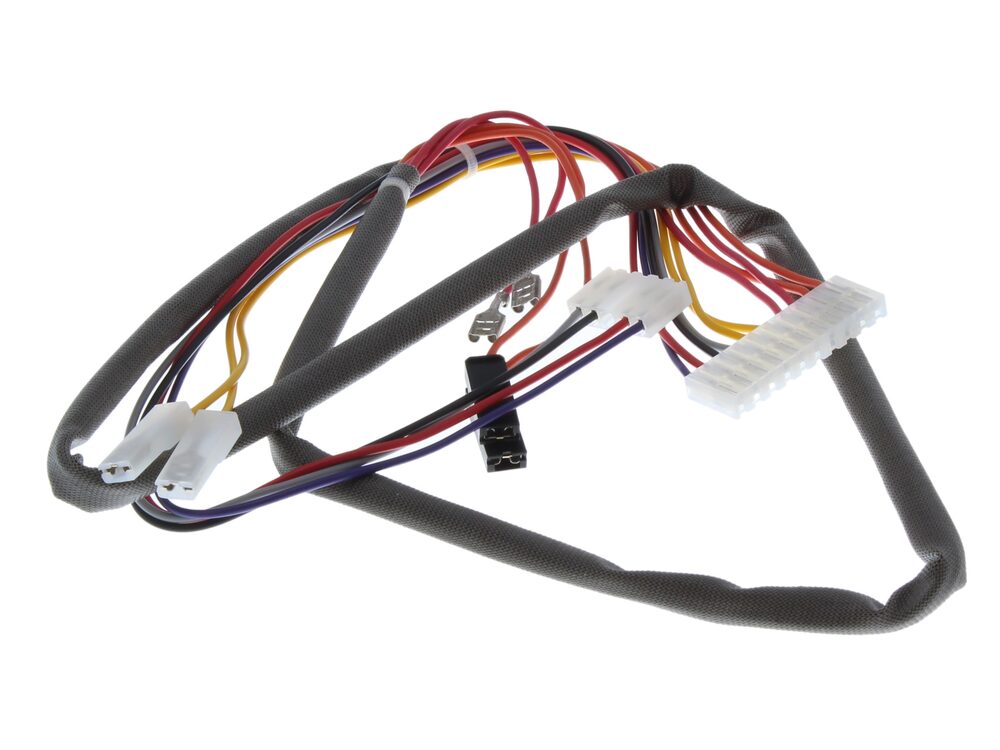

Halstead 230 V Wiring Harness 401147
230 V wiring harness for Halstead ACE and Wickes Combi gas boilers, part number 401147.
At a glance
- Also known as 1291742
£18.40
£15.33 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The 230 V wiring harness is a Halstead electrical spare, identified by part number 401147. It carries mains voltage connections within the appliance, linking the boiler's electrical components to the control circuit. It is used across the Halstead ACE and Wickes Combi boiler families.
Signs this part needs replacing
- The boiler fails to power up or loses mains supply intermittently
- Visible scorching, melting or discolouration at the harness connectors
- Cracked, brittle or chafed insulation on the harness leads
- Loose or corroded terminals causing intermittent faults or lockouts
- Continuity faults traced to the harness during electrical testing
Before you order
- Confirm your boiler model against the fitment list above
- Check the GC number on the appliance data badge matches your model
- Inspect the existing harness connectors and routing to confirm the layout matches
- Isolate the mains supply before removing or fitting any electrical component
Compliance
| GC number | E76-092 |
|---|---|
| Alternative numbers | 1291742 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HALSTEAD ACE FROM AC100000131 | 47-333-10 | 47-333-10 | — | — |
| HALSTEAD ACE HIGH | 47-333-16 | 47-333-16 | — | — |
| HALSTEAD ACE TO AC100000131 | 47-333-15 | 47-333-15 | — | — |
| HALSTEAD WICKES COMBI 102 | 47-333-18 | 47-333-18 | — | — |
| HALSTEAD WICKES COMBI 82 | 47-333-17 | 47-333-17 | — | — |
