Ferroli

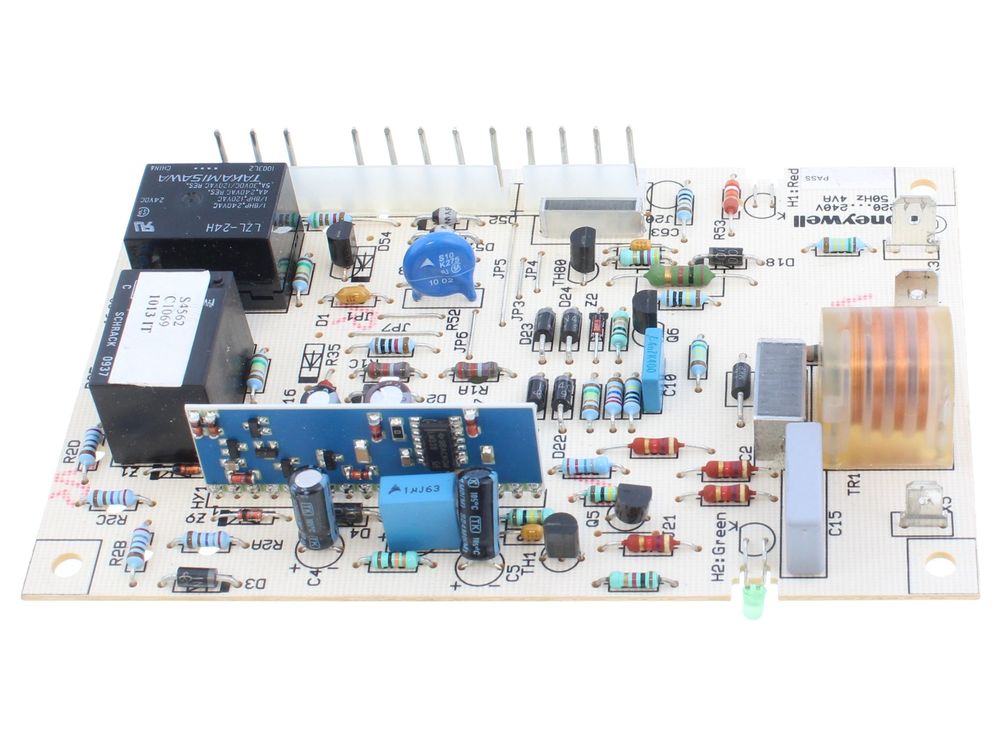

Ferroli Ignition PCB S4562C 1069B 39820320
At a glance
- Part type: Printed circuit board (ignition)
- Also known as 1211127
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£507.22
£422.68 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ferroli 39820320 is an ignition printed circuit board used in Domina 80E MF01 and Modena 80E MF01 boilers. The board carries the reference marking S4562C 1069B and governs the ignition sequence, spark generation and flame supervision inside the appliance. It is supplied as a replacement for the factory-fitted board of the same reference.
Signs this part needs replacing
- The boiler calls for heat but there is no spark at the ignition electrode
- Repeated lockouts or fault codes appearing during the start-up sequence
- The burner lights briefly and then extinguishes because flame supervision is lost
- Erratic or intermittent firing across successive demands for heat
- No response from the appliance when a heating or hot water demand is present
Before you order
- Check the GC number and the model variant (MF01) on the appliance data badge against the compatibility list.
- Confirm the existing board is marked S4562C 1069B before ordering a replacement.
- Cross-reference the alternative part numbers below, as earlier board versions may be fitted to the same models.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Printed circuit board (ignition) |
|---|
Compliance
| Manufacturer part number (MPN) | 39820320 |
|---|---|
| GC number | E23-847 |
| Barcode / EAN | 39820320 |
| Commodity code | 8537 10 91 99 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 3650637/0, 802580, 1211127 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| FERROLI DOMINA 80E MF01 - 30R0221/0 (01/03/1998) | 47-267-23 | 47-267-23 | — | — |
| FERROLI FERROLI DOMINA 80E MF01 | — | — | — | |
| FERROLI FERROLI MODENA 80E MF01 | — | — | — | |
| FERROLI MODENA 80E MF01 - 30R0264/0 (01/09/1998) | 47-267-05 | 47-267-05 | — | — |
