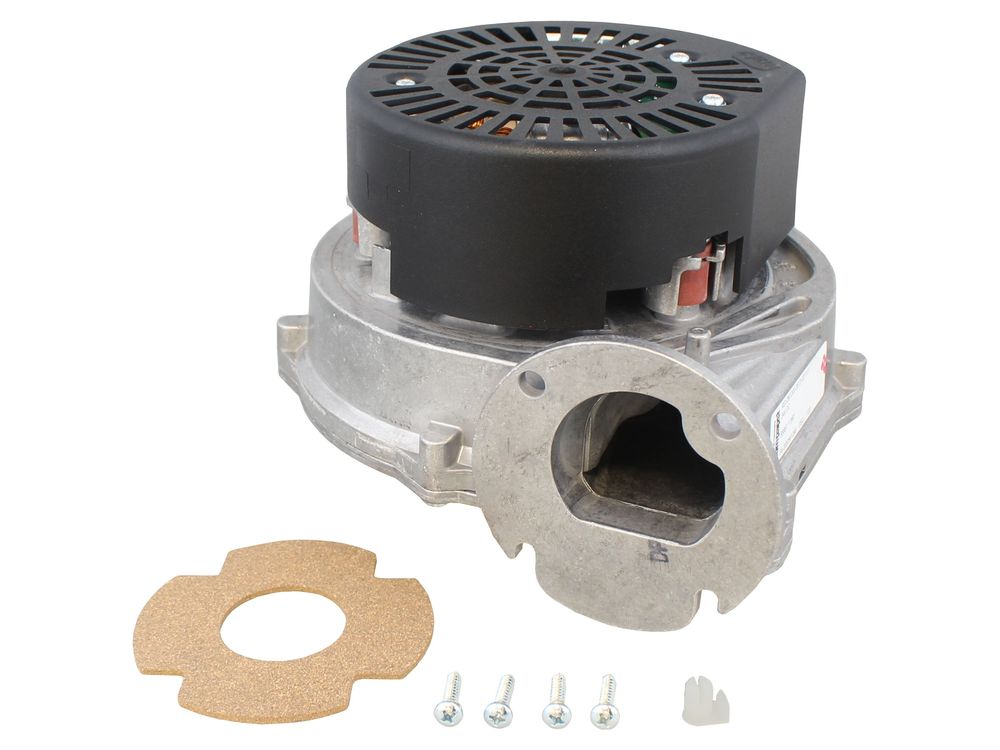

Ferroli Fan Assembly 39809450
Ferroli fan assembly 39809450 for Econcept, Maxima and Optimax gas boilers, replacing fan code 800162.
At a glance
- Also known as 1210686, N8022
- Work on the combustion side of a gas boiler must be carried out by a Gas Safe registered engineer
£337.63
£281.36 ex. VAT · VAT at 20%
Call 01302 279234 to check availability
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ferroli 39809450 is a fan assembly used in a range of Ferroli domestic gas boilers. It draws combustion air into the burner and pushes flue products out through the flue system, and it also provides the air pressure signal the boiler needs to prove safe operation before ignition. The assembly replaces the earlier fan code 800162.
Signs this part needs replacing
- Bearing rumble, whine or scraping from the fan that persists once the boiler has run for a few minutes
- Boiler fails to ignite or locks out because the fan cannot reach or hold its proving pressure
- Fan runs intermittently, stalls or fails to spin up at the start of a demand
- Visible vibration from the fan housing or soot staining around the air inlet
- Repeated fan or air pressure fault codes logged by the boiler
Before you order
- Confirm the appliance model and product code against the fit list above, as the same appliance name can cover several build variants
- Check the part number on the existing fan before ordering to confirm it is 39809450 or the earlier 800162 code
- Inspect the flue and air inlet path for blockages or damage, as these can mimic a fan fault
- Work on the combustion side of a gas boiler must be carried out by a Gas Safe registered engineer
Compliance
| GC number | H30-739 |
|---|---|
| Barcode / EAN | 8028693427746 |
| Alternative numbers | 8028693335225, FERROLI39809450, FERROLI39809450, FERROLI39809450, FERROLI39809450, 1210686, N8022 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| FERROLI ECONCEPT 35A - 30K0059001 (01/12/2004) | — | — | — | |
| FERROLI ECONCEPT 35C - 30K0077001 (01/12/2004) | — | — | — | |
| FERROLI FERROLI MAXIMA 35C | — | — | — | |
| FERROLI FERROLI MAXIMA 35S | — | — | — | |
| FERROLI FERROLI OPTIMAX 25C | — | — | — | |
| FERROLI MAXIMA 35C - 30K00780 (01/10/2003) | 47-267-33 | 47-267-33 | — | — |
| FERROLI MAXIMA 35S - 30K0088000 (01/07/2004) | 47-267-21 | 47-267-21 | — | — |
| FERROLI OPTIMAX 25C - 30K0086000 (01/07/2004) | 47-267-34 | 47-267-34 | — | — |
