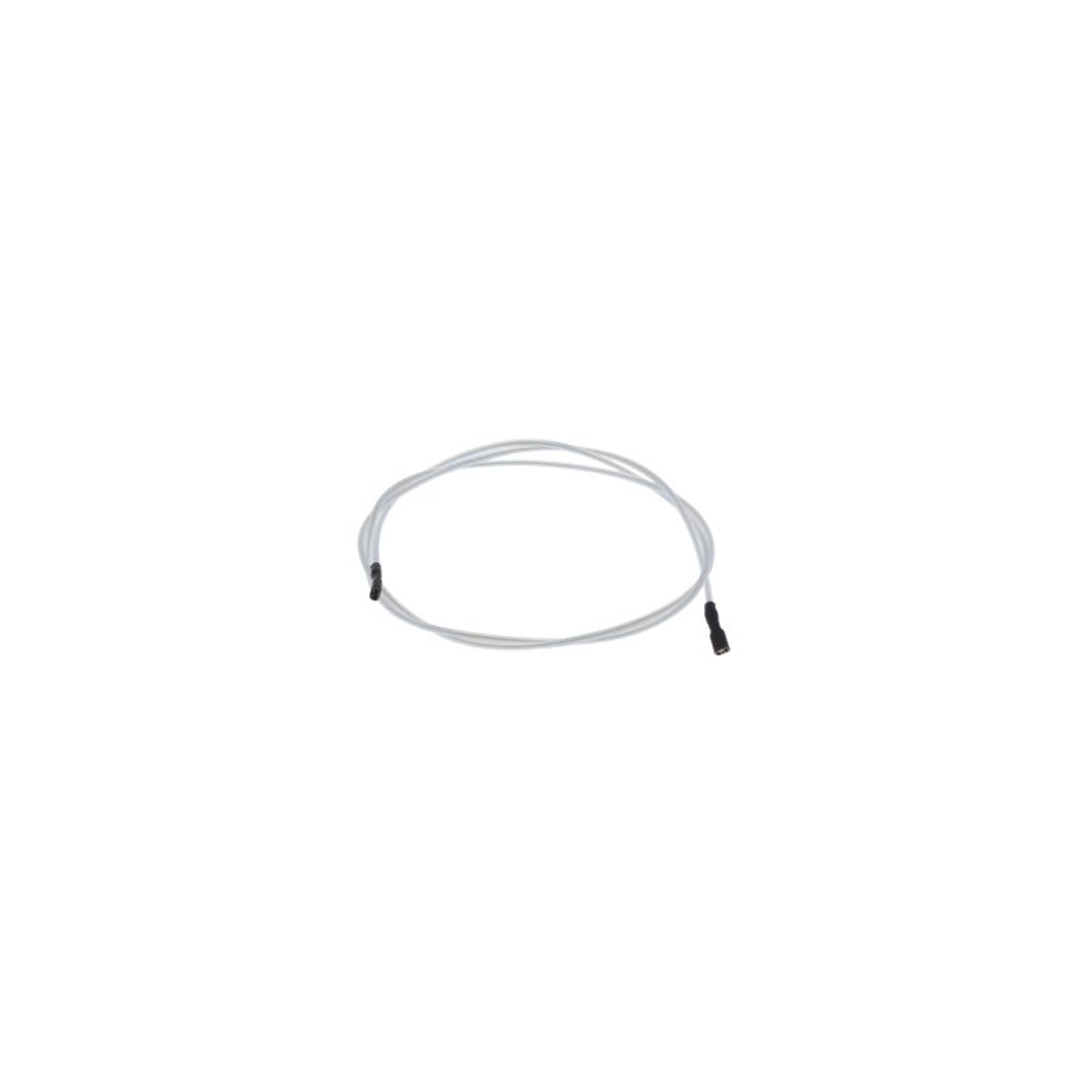

Anglo Nordic Pilot Burner HT Lead 600mm 3153003

The Anglo Nordic 3153003 is a pilot burner high tension (HT) lead supplied as a 600mm assembly. It sits within the Piezo Ignitors & HT Leads range, Group 31, and is used across Anglo Nordic burner products.

The lead carries the high voltage spark from the piezo igniter to the pilot burner electrode, so the pilot flame can be established at ignition. It is a service replacement component for the ignition circuit of the burner.

• The pilot burner fails to light, or lights only intermittently, when the igniter is operated
• No spark is visible at the pilot electrode
• The lead insulation is cracked, chafed, scorched or brittle
• The spark arcs to the appliance casing or to earth rather than at the electrode
• Ignition becomes unreliable in damp conditions or after the appliance has been serviced

• Confirm the appliance model and serial number against the compatibility list before ordering
• Check the routing and reach required on the appliance; this lead is 600mm long
• Cross-reference the alternative part number 1920376 when working from older documentation
• This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
