Altecnic

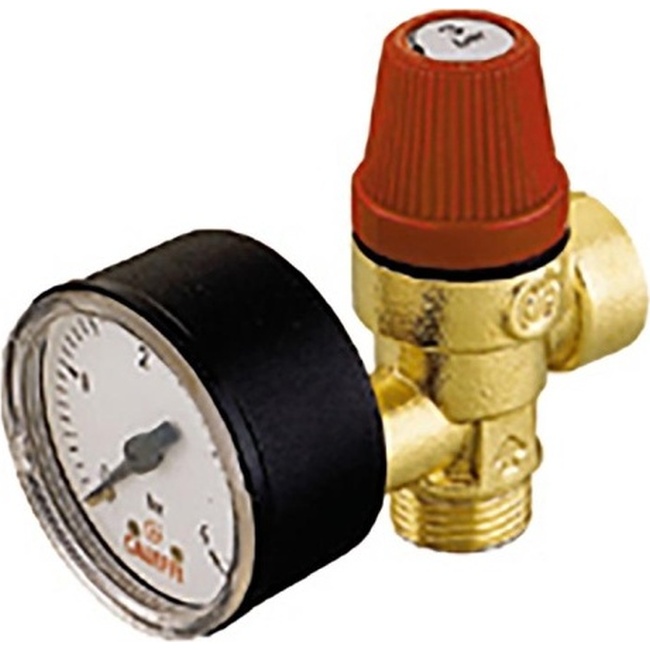

Altecnic Safety Relief Valve 1/2M/F 2.5 bar with Gauge 314425
Altecnic 1/2 inch male/female safety relief valve set at 2.5 bar, supplied with a gauge for boiler applications.
£40.66
£33.88 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Altecnic 1/2M/F 2.5 bar Safety Relief Valve with gauge is a pressure relief device for boiler applications. It opens at its preset pressure of 2.5 bar to discharge excess system pressure, and the fitted gauge allows the pressure to be read at the valve position. The body has a 1/2 inch male and female threaded connection arrangement.
Signs this part needs replacing
- Water weeping or discharging continuously from the valve outlet when system pressure is below the set pressure
- Visible scale, corrosion or debris on the valve seat preventing it from sealing
- Gauge reading that no longer responds, reads inconsistently or has moisture behind the lens
- System pressure rising above the set pressure without the valve discharging
- Knob or lever that will not operate freely or fails to reseat after manual testing
Before you order
- Confirm the system requires a 2.5 bar relief setting and that this matches the appliance or circuit protection requirements
- Check the connection arrangement and thread size at the valve position to ensure the 1/2 inch male/female fittings suit the installation
- Check the pressure range shown on the gauge is suitable for the system operating pressure
- Verify clearance around the valve for the gauge and discharge pipework
No specification data held for this part.
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALTECNIC PRVs | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
