Riello

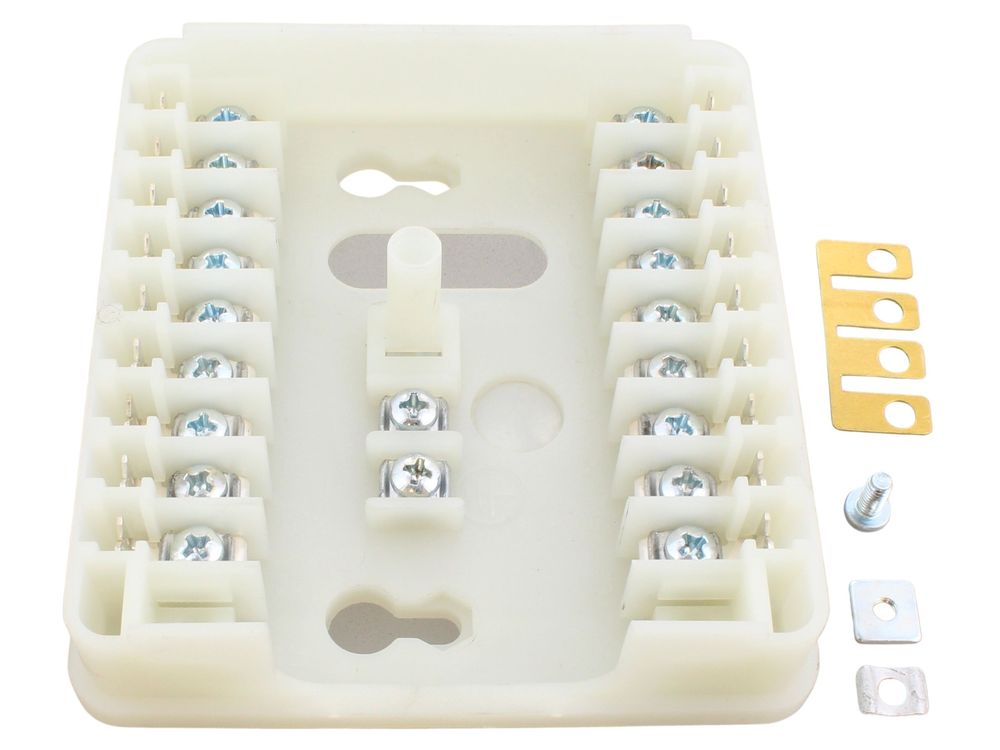

Riello Control Base 508/509 3002256
Riello control base for the 508/509 burner series, part 3002256, used to mount and connect the burner control box.
At a glance
- Also known as 3200420
Showing prices
£28.72
£23.93 ex. VAT · VAT at 20%
Available to order · 1 working day
Available to order · 1 working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Riello control base for the 508/509 series is the mounting and connection platform that carries the burner control box on Riello oil and gas burners. It provides the electrical interface between the control box and the burner's wiring loom, and is listed under oil boiler spares in the controls category. It is a service part for the 508/509 control box family.
Signs this part needs replacing
- The burner locks out intermittently with no fault found elsewhere in the sequence.
- The control box is loose, does not seat firmly, or makes poor contact in the base.
- Terminals or contact pins in the base show burning, discolouration or corrosion.
- Cracking or heat damage to the base body around the control box mounting points.
- Faults that clear when the control box is pressed or reseated in the base.
Before you order
- Read the burner data plate and confirm the control box fitted is from the 508/509 series.
- Check the existing control base part number against 3002256 before ordering.
- Confirm the burner model and code against the fitment list above, as the list is not exhaustive.
- Isolate the electrical supply to the burner before removing the control box or base.
Compliance
| Barcode / EAN | 4010009255277 |
|---|---|
| Alternative numbers | 3200420 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RIELLO BURNER SPARES | — | — | — | |
| RIELLO GAS 2GB - TYPE 514-T-50 | — | — | — | |
| RIELLO GAS 3 - CODE 3751902 - TYPE 519M | — | — | — | |
| RIELLO GAS 3 - CODE 3751912 - TYPE 519-T1 | — | — | — | |
| RIELLO GAS 3 - CODE 3751922 - TYPE 519T-20 | — | — | — | |
| RIELLO GAS 3 - CODE 3751932 - TYPE 519T-30 | — | — | — | |
| RIELLO GAS 3 - CODE 3751935 - TYPE 519T-35 | — | — | — | |
| RIELLO GAS 3 - CODE 3751942 - TYPE 519T-40 | — | — | — | |
| RIELLO GAS 3 - CODE 3751952 - TYPE 519T-50 | — | — | — | |
| RIELLO GAS 3 - CODE 3751956 - TYPE 519T-55 | — | — | — |
Showing 10 of 81 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
